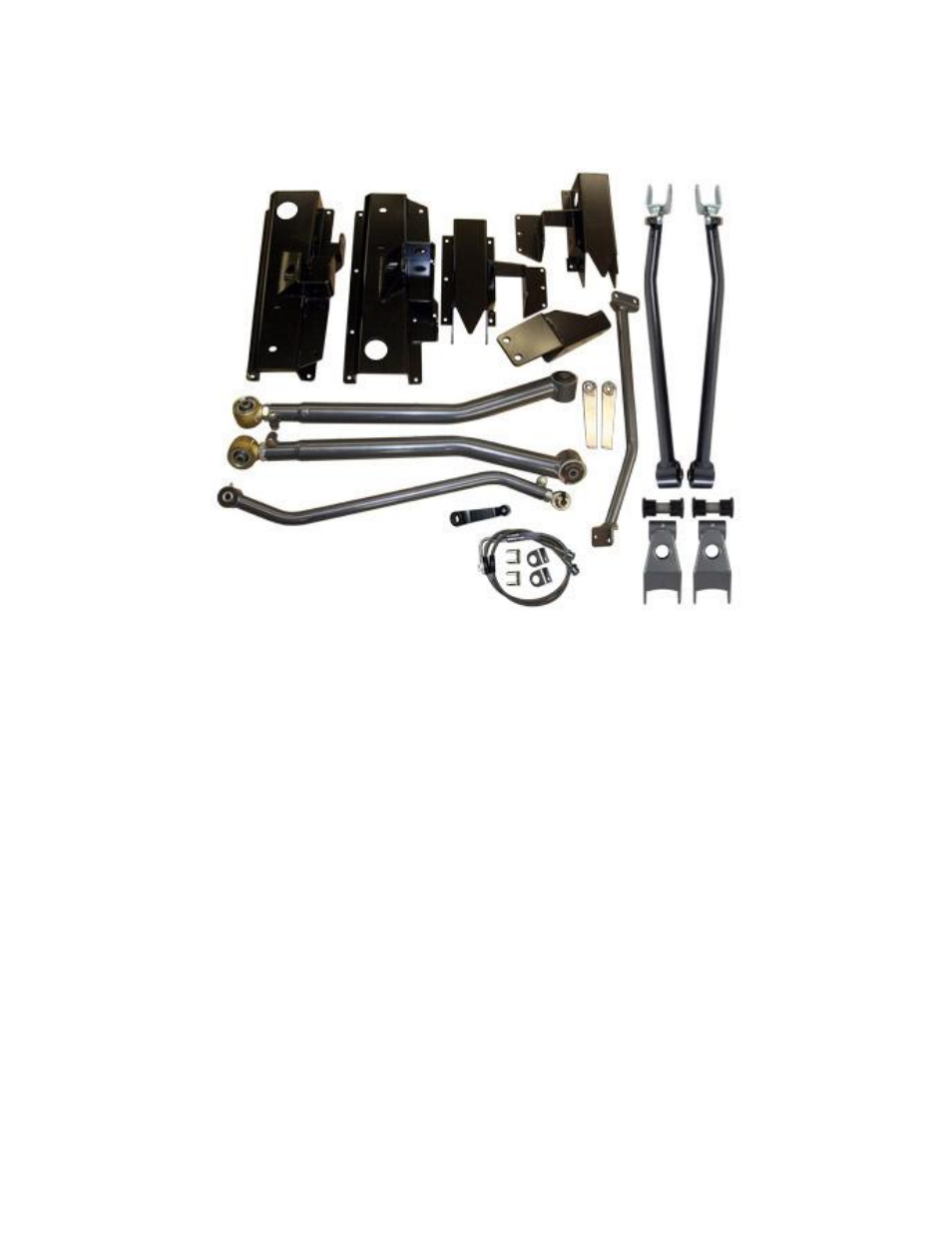

Synergy 8200 - Jeep XJ 4-Link Long Travel System - Manual (Page 3)


1/2-13 UNC : 80 ft/lbs

9/16-12 UNC : 110 ft/lbs

3/8-24 UNF : 40 ft/lbs
1. Jack up the front of the vehicle by placing the floor jack under the center of the axle, support the vehicle
using jack stands and allow the front axle to hang free (keep the floor jack under the axle for the
duration of the installation). Remove the wheels, upper and lower control arms, trackbar, and coils.
Unbolt the shocks from their lower mounts.
2. Next, cut off the stock lower control arm brackets.
