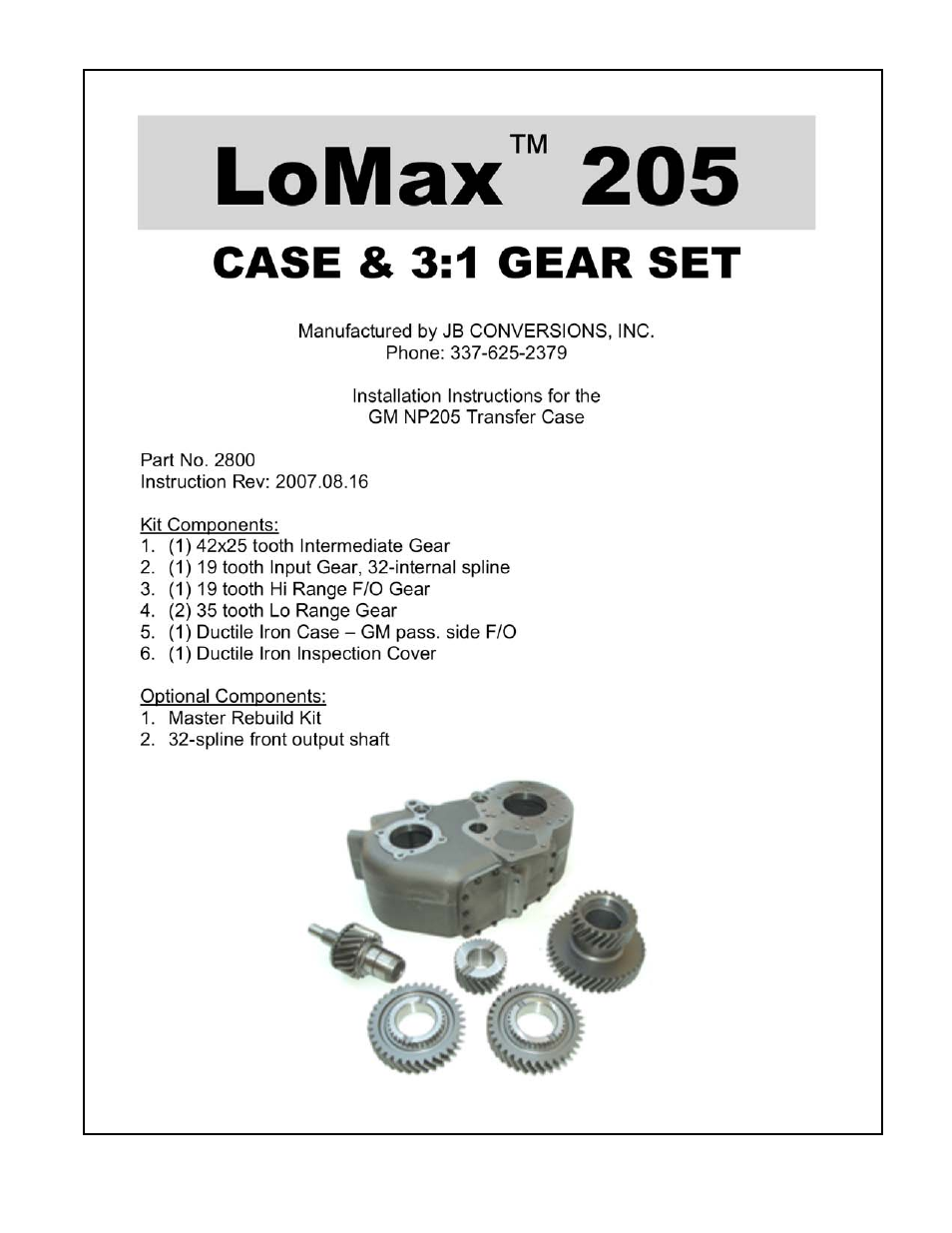

JB Conversions 2800 LoMax 205 - Manual

LoMax
™
205
CASE & 3:1 GEAR SET
Manufactured by JB CONVERSIONS, INC.
Phone: 337-625-2379
Installation Instructions for the
GM NP205 Transfer Case
Part No. 2800
Instruction Rev: 2007.08.16
Kit Components:
1. (1) 42x25 tooth Intermediate Gear
2. (1) 19 tooth Input Gear, 32-internal spline
3. (1) 19 tooth Hi Range F/O Gear
4. (2) 35 tooth Lo Range Gear
5. (1) Ductile Iron Case – GM pass. side F/O
6. (1) Ductile Iron Inspection Cover
Optional Components:
1. Master Rebuild Kit
2. 32-spline front output shaft
