08-10-09 Page 9 of 19 3783146

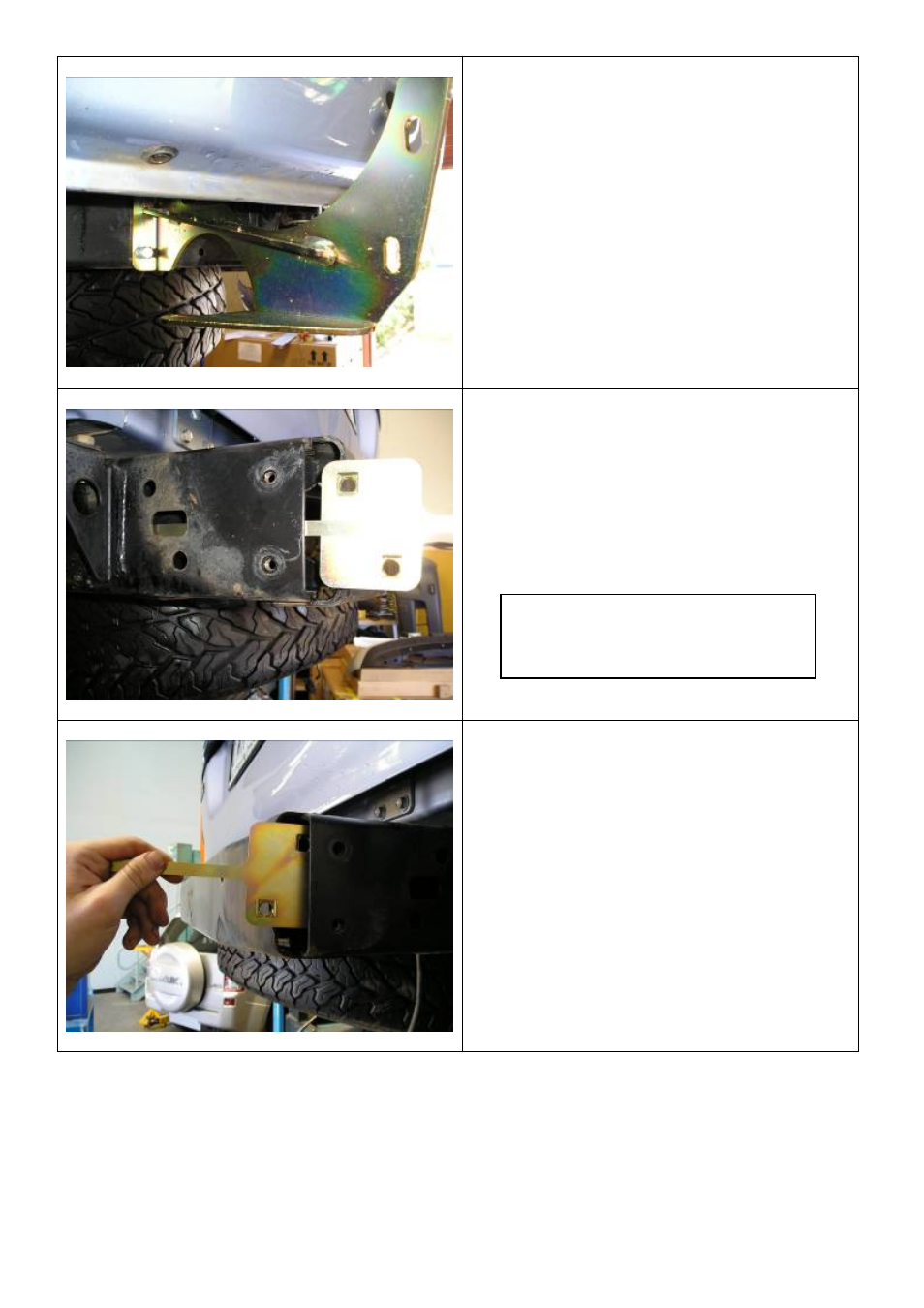

20. With the help of a friend to hold the
previously fitted nut plate in the correct
position, fit the LHS end surround brace to
the side of the chassis rail using M8 x
35mm bolts, spring washer and flat
washer., finger tighten only.
21. Whilst working on the LHS, fit M12 x 1.75
caged nuts into side plates, and fit plate
as to press wing brace nut plate arm
against the inside of the chassis rail to
stop any rattling when the rear bar is fitted
to vehicle.
22. Fit M12 x 1.75 cage nuts to chassis side
plates and insert into end of chassis rails.
NOTE:
After bar is fitted and bolts are tightened
in these chassis side plates, the handles
must be bend over so that struts are not
damaged when wheel carriers or jerry can
carriers are closed.
NB FIT CAGE NUTS TO SIDE
PLATES SO PLATES ARE
HANDED.
