08-10-09 Page 12 of 19 3783146

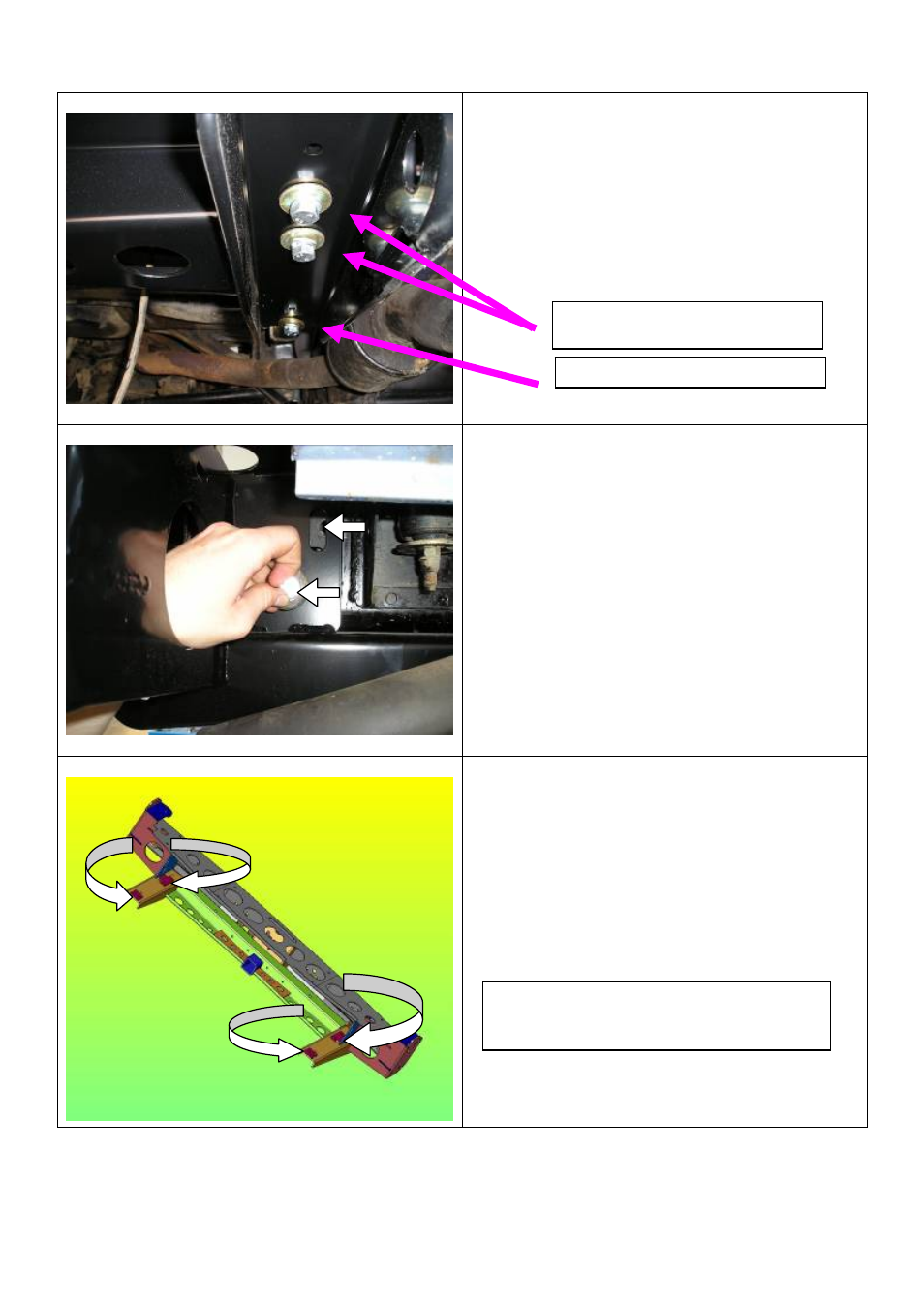

To the RHS of the vehicle, fit 2 x M12 x 1.75 x
50 ( coarse thread ) bolts, spring washer and
flat large gold coloured washer to the most
forward hole. To the rear hole, fit 1 x M12 x
1.25 x50 bolt, spring washer and flat large gold
coloured washer
33. Fit two M12 x 40 x 1.75 bolts, large gold
coloured flat washers and spring washers
into captive nut plates (installed previously
step17) on each side of vehicle.
(Finger tighten only)
Align nut plates using handle that protrudes
through cut out in rear of bar.
34. Before tightening any bolts you must fit the
8mm packers in between the rear bar and
the vehicle chassis. The double cut out
packers to the rear of the bar, and the
single cut out packers to the front of the
bar. When these packers are fitted, tighten
all bolts firmly.
M12 X 1.75 X 50 BOLTS
M12 X 50 X 1.25 BOLT
ARROWS INDICATE WHERE
PACKERS ARE TO BE FITTED
