FITTING CENTRE COVER PANEL

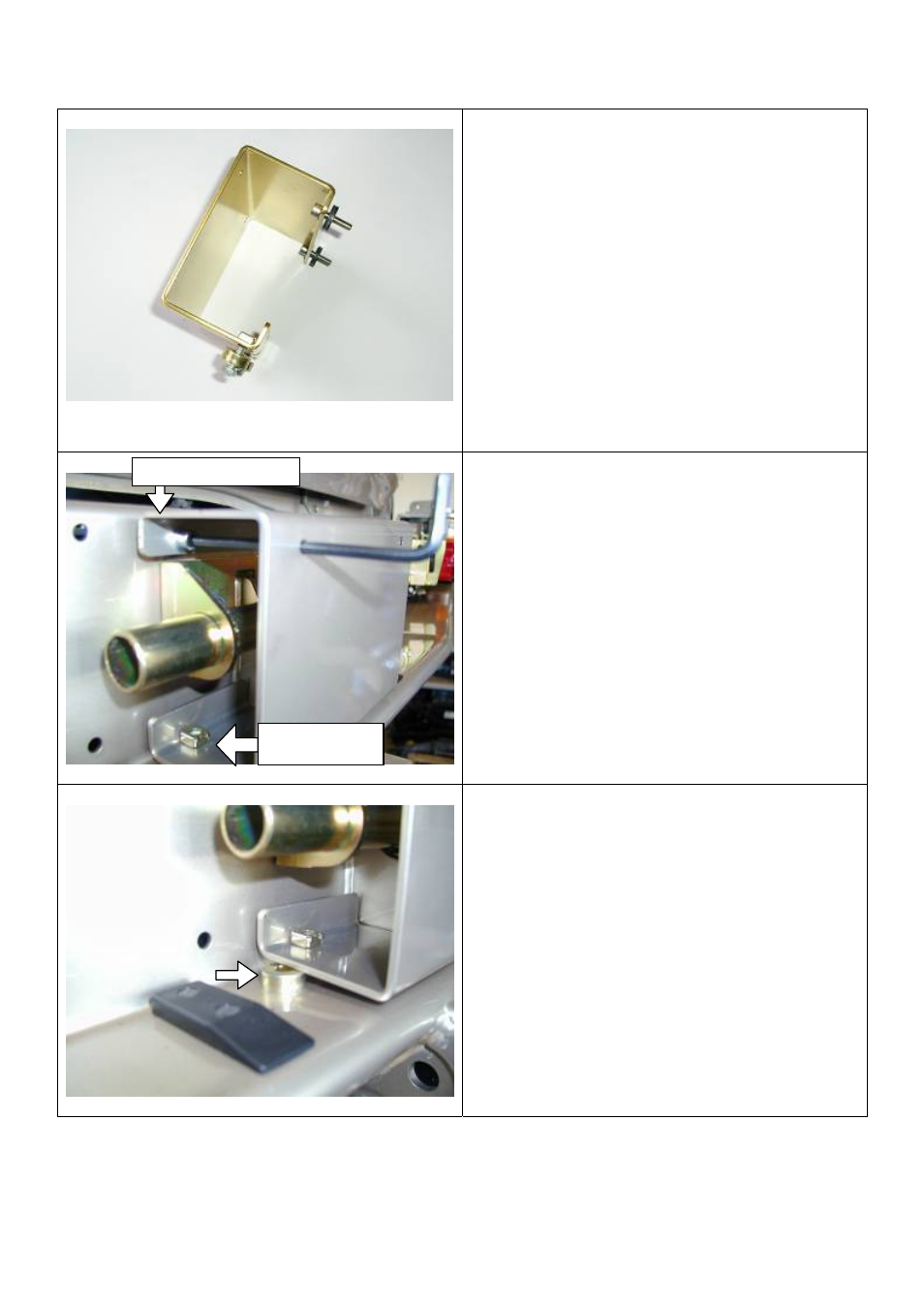

37. Compile the components as shown
- Centre cover panel
- 2 x M6 cage nuts
- 2 x M6 x 25 socket head cap screw
stainless steel
- 2 x M6 x 25 bolts
- 4 x 6mm flat washers
- 2 x black nylon packers
- 2 x 8mm thick gold zinc spacers
- 4 x 6mm spring washers
38. Place M6 cage nuts into lower section of
centre cover panel.
39. Fit two M6 x 25 stainless steel socket
head cap screws, flat washers and spring
washers through top flange inside cover
panel as shown.
40. Place black nylon spacers on screws on
outside of centre cover panel flange and
attach to captive nuts in rear bar.
(Finger tighten only.)
41. Place 8mm spacer between underside of
centre cover panel and rear bar.
Black nylon washer
M6 cage nuts
