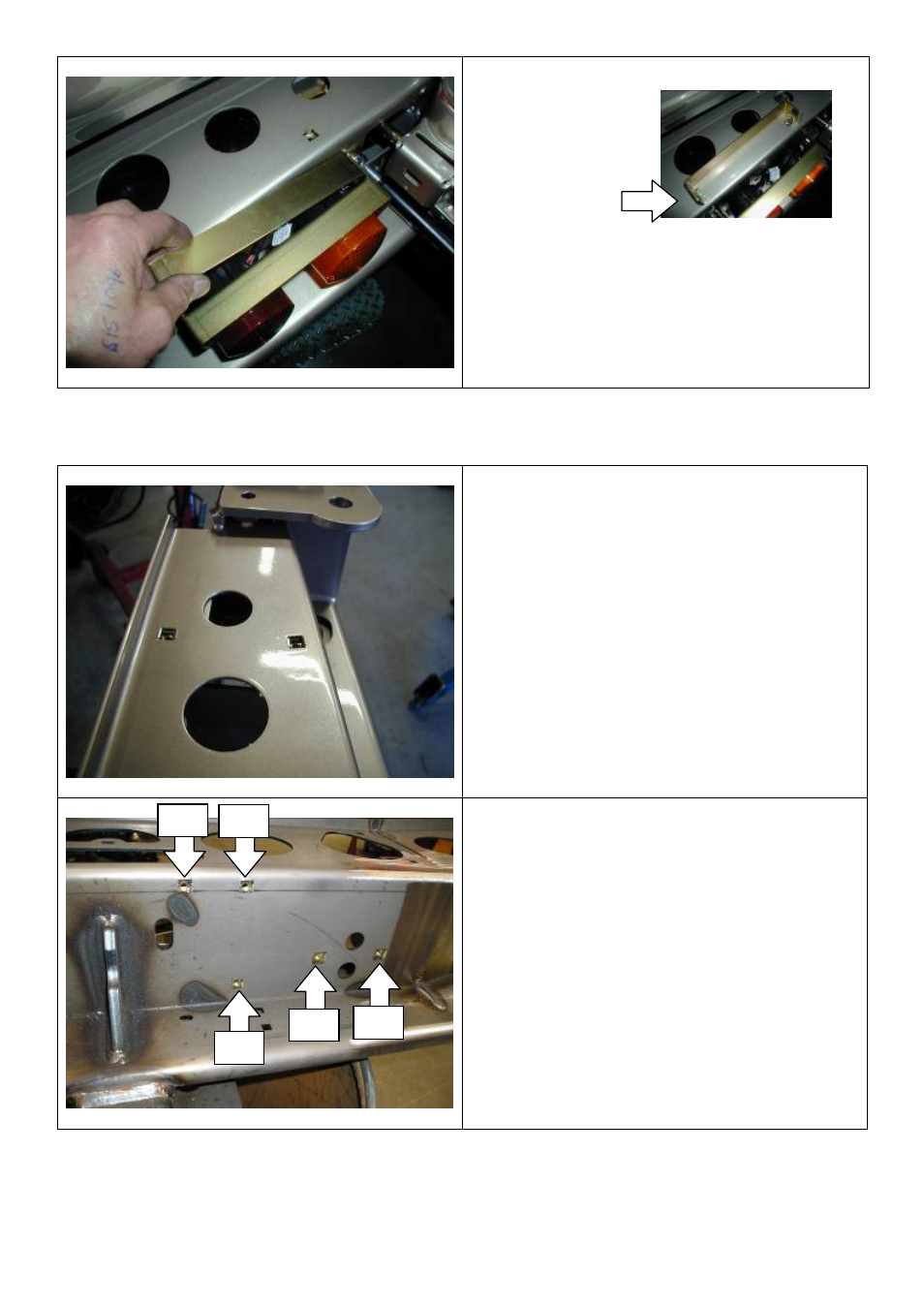

6. Fit M6 cage nuts
to light mount cover
bracket as shown.
7. Using M6 x 16 bolts and flat washers, fit
cover bracket to light mount.
8. Tighten only cover bracket bolts securely.
FITTING CAGE NUTS TO BAR
9. Fit M6 cage nuts (9 total) in square holes in
top of bar as shown.
10. Fit M6 cage nuts (6 total) and M8 cage nuts
(4 total) to front of bar. (RHS shown)
M8 M8
M6
M6 M6
