08-10-09 Page 11 of 19 3783146

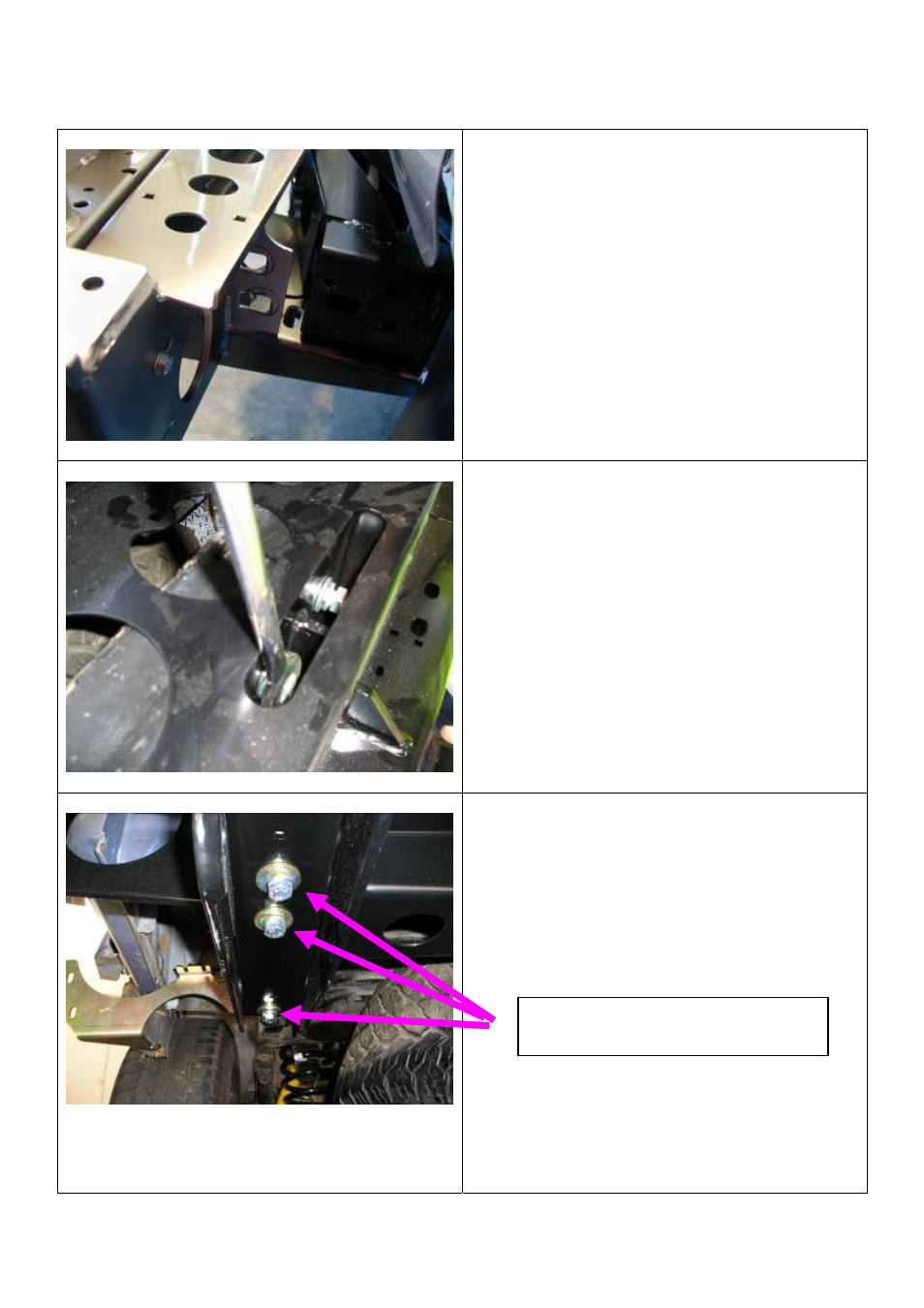

29. Slide bar onto rear of chassis leaving
enough room to plug main loom into tail
light assemblies on either side of vehicle.
30. When this is done push bar onto chassis
until centre mount of bar is flush up against
chassis cross member.
31. Fit two M12 x 40 x 1.25 bolts, spring
washers and flat washers as shown into
centre mounting bracket.
(Finger tighten only.)
32. Fit 3 x M12 x 40mm x 1.25 (fine thread)
bolts, spring washers and large gold
colored flat washers to underside of
chassis rails to LHS of vehicle
(Finger tighten only.)
M12 X 1.25 X 50 BOLTS
( FINE THREAD )
