08-10-09 Page 15 of 19 3783146

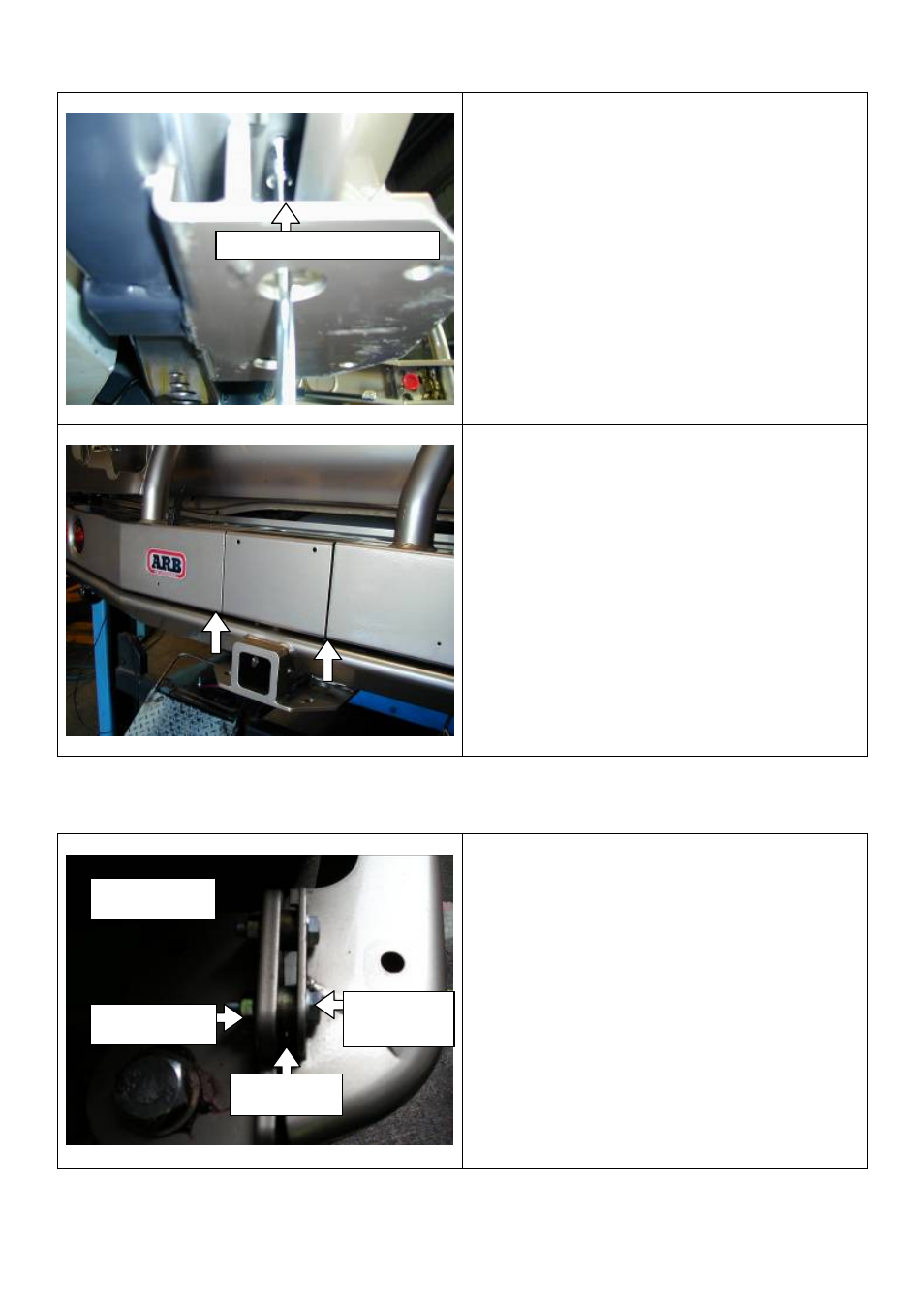

42. From underneath rear bar pass two M6 x
25 bolts, flat washers and spring washers
through the aligned parts and finger
tighten.
43. Align faces of centre cover panel with
wheel carrier, jerry can carrier or cover
panel and tighten securely
.
FITTING END SURROUNDS TO REAR BAR
44. The surrounds are attached to rear bar
using three M8 x 35 bolts, flat washers
and flange nuts per side.
45. Place bolts and flat washers through the
top two holes of the rear bar end plate as
shown.
46. Fit 8mm spacer to bolts, then fit end
surround and secure finger tight with M8
flange nuts.
47. Fit the lower bolt with washer, spacer and
nut in the same sequence as the upper
two.
(Finger tighten only)
M6 x 25 bolt and flat washer
M8 flange nut
M8 x 35 bolt
and washer
8mm spacer
Top RHS
