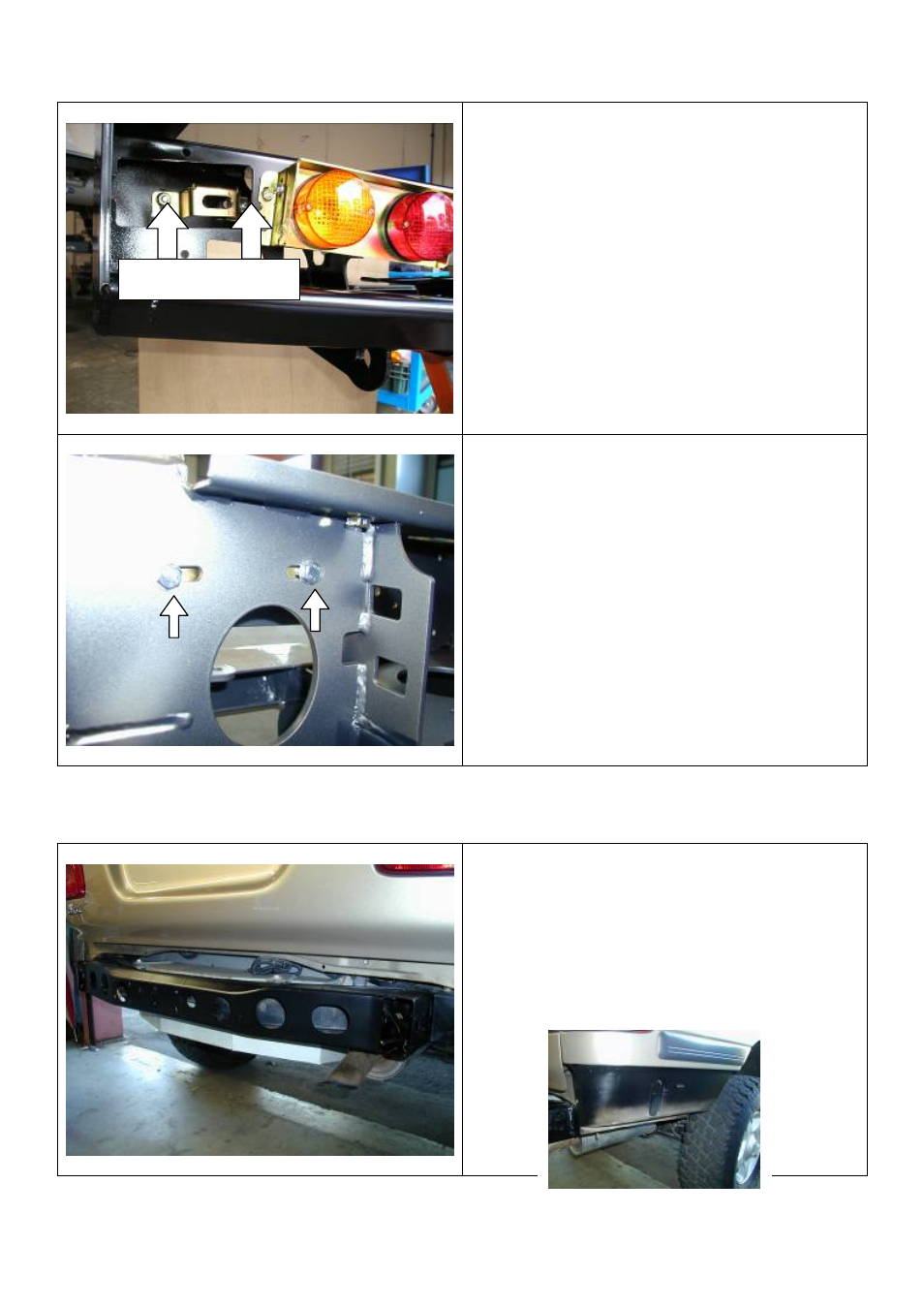

FITTING LOCKING PIN BRACKETS TO BAR
11. Fit locking pin brackets using two M8 x 25
bolts, flat washers and flange nuts. Finger
tighten only.
Fit bolts through from rear of rear bar so
that the flange nuts are on the same side
as the bracket as the photo shows.
(Viewed from front of bar LHS.)
12. M8 bolts must fit in rear of bar for ease of
adjustment later on.
(Viewed from rear of bar LHS.)
REMOVING BUMPER
13. To fit Rear Bar to vehicle, remove bumper
bar, mud flap and tow bar (if fitted) from
vehicle.
OPTIONAL
Paint lower rear quarter panel satin black.
Flange nuts this side
