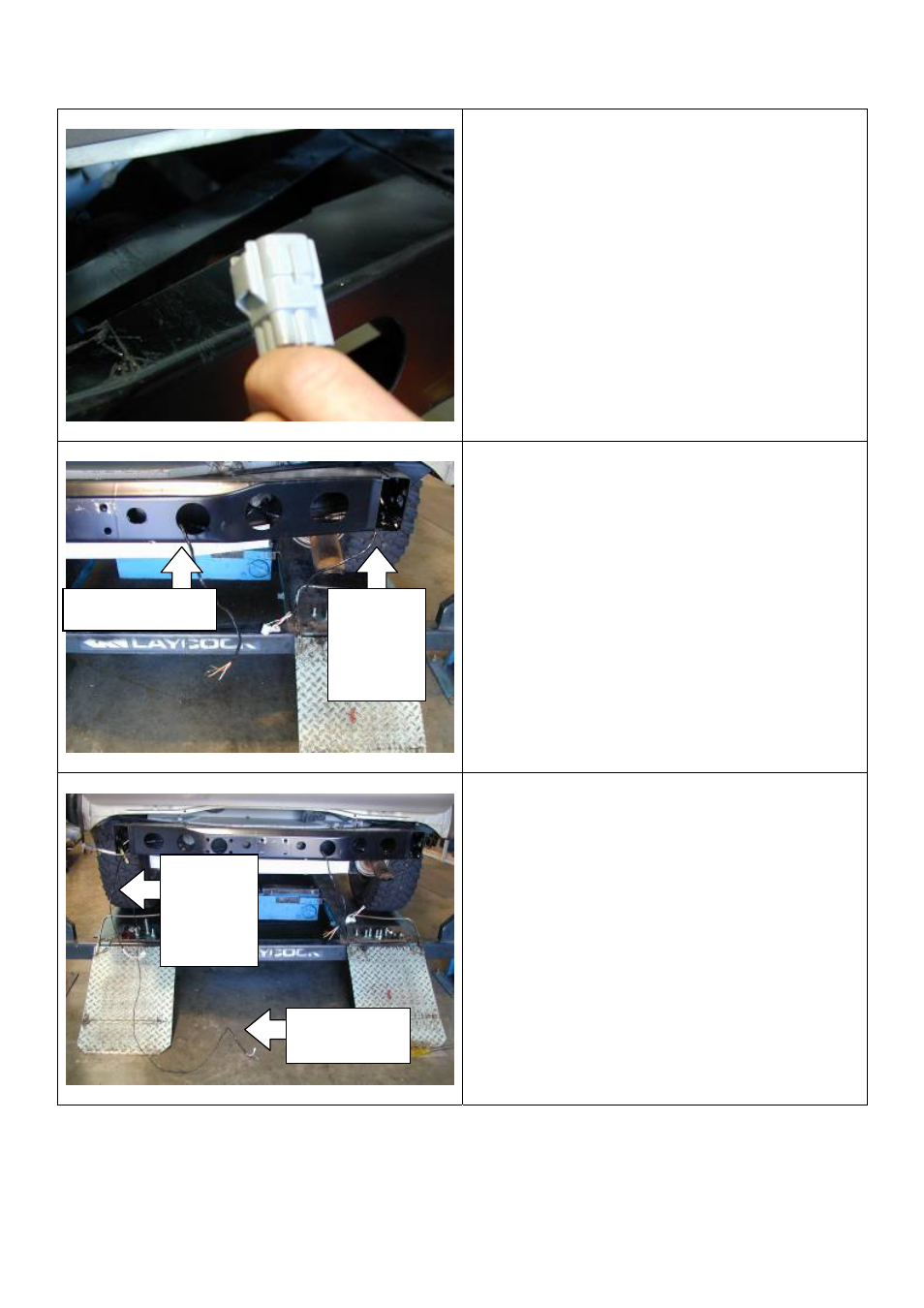

FITTING LOOM TO VEHICLE
14. Fit loom inside rear cross member of
vehicle chassis.
The plug for connecting the loom to the
vehicle must be on the RHS of the
vehicle.
15. Exit tail light wires and trailer plug wires as
shown.
The tail light connectors with the
GREEN wire must be on the RHS of the
vehicle.
The tail light connectors with the
YELLOW wire must be on the LHS of the
vehicle.
16. The loom is fitted with wiring for a number
plate light.
If a jerry can carrier is to be fitted the
number plate and light should be fitted to it.
The wire for the number plate light must be
on the same side of the vehicle as the jerry
can carrier.
If a wheel carrier is to be fitted without a
jerry can carrier the wire for the number
plate light should be on the same side of
the vehicle as the wheel carrier.
RHS
Tail light
connector
with green
wire
Trailer plug wires
LHS
Tail light
connector
with
yellow
wire
Number plate
light wires
