08-10-09 Page 10 of 19 3783146

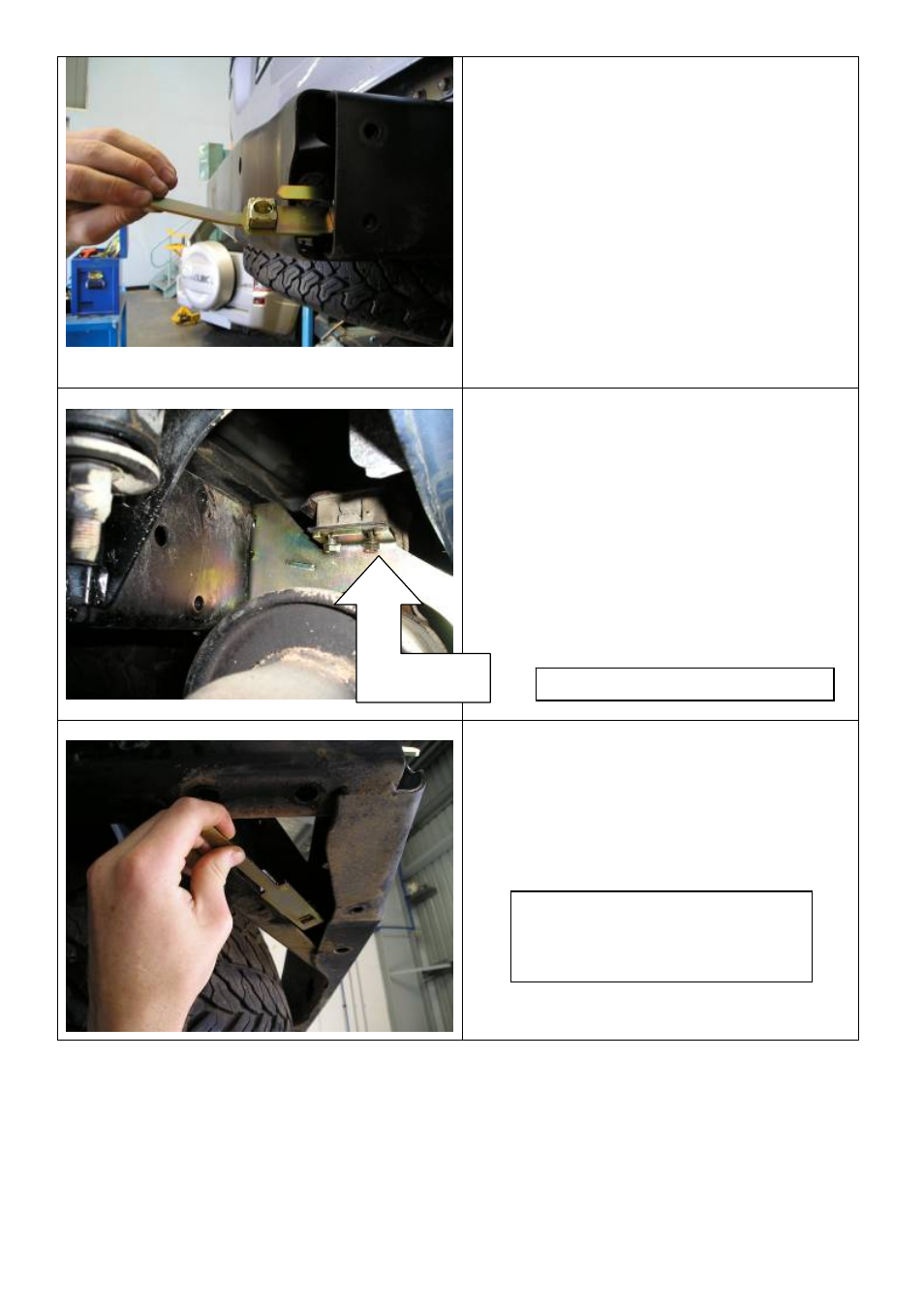

23. Fit 2 x M12 x 1.75 cage nuts into plate and
insert into inside RHS chassis rail and
align with underside of chassis holes.
24. Bend rear handle of nut plate to enable
plate to fit flat on the inside of chassis rail.
25. On RHS of vehicle remove exhaust
hanger bracket from vehicle and remove
rubber isolater body from muffler for ease
of fitment later.
26. Using M8 x 35mm bolts, spring washers
and flat washers, secure side surround
brace to rear holes in side of chassis
rails.
27. Refit rubber isolater body back to muffler
and to the side surround brace.
28. Fit M12 x 1.75 cage nut into rear cross
member nut plate and fit to both sides of
rear cross member.
FINGER TIGHTEN ONLY
PHOTO IS LHS OF VEHICLE
