Fitting mounting brackets – ARB 3462040 User Manual
Page 9
Last Rev Date: 24/7/07
Page 8 of 16
Fitting instructions# 3783176
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
FITTING MOUNTING BRACKETS

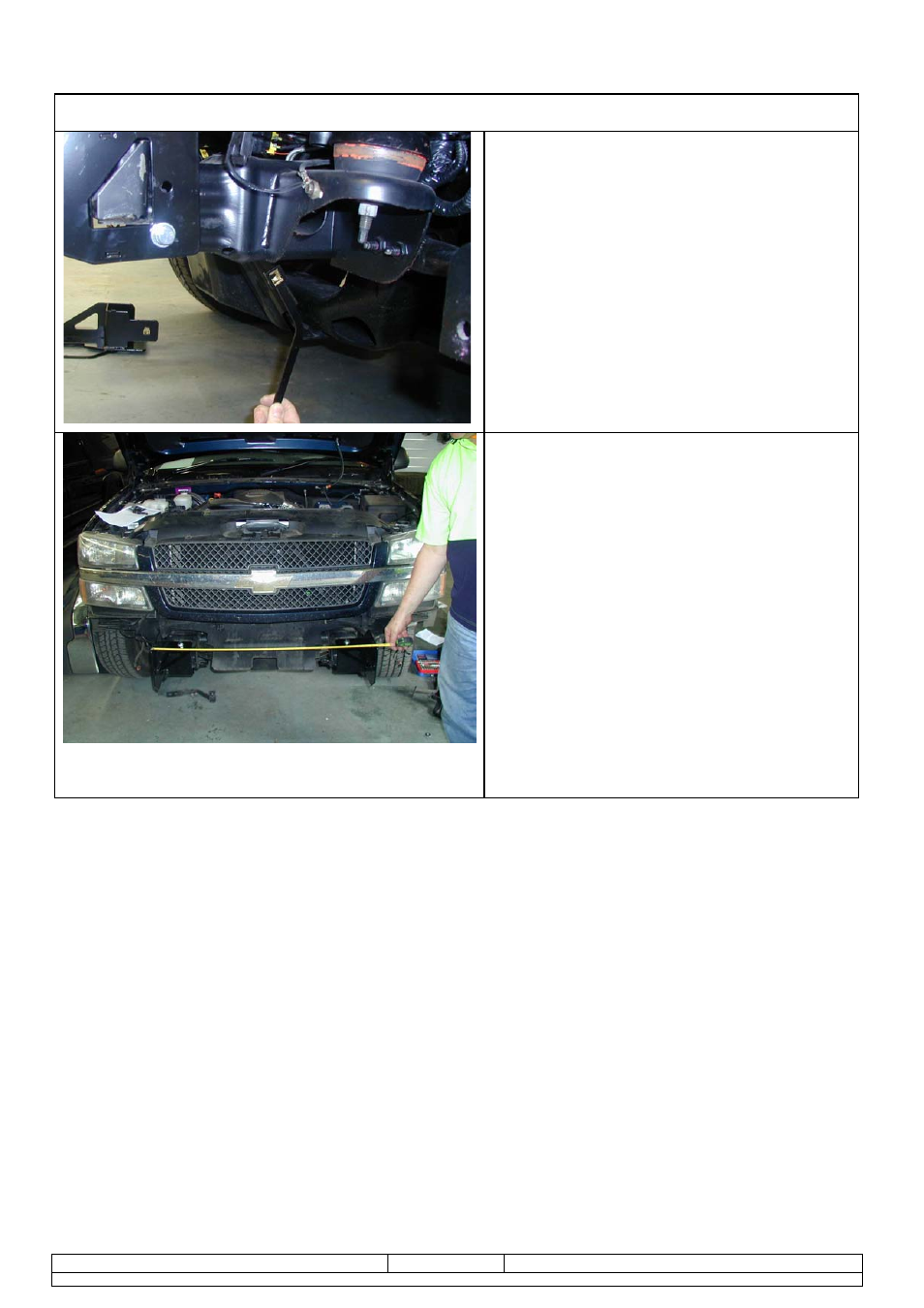

11. Fit M12 cage nuts to both bent plates,
1 x LH and 1 x RH as assemblies are
opposite for each side of vehicle. Insert
nut assembly through large hole in
underside of chassis and up to meet
vacant hole above long bolt. Insert M12
bolt and washer set, do up finger tight.
12. Check that brackets are parallel to
each other, if not adjust. When parallel
then tighten all bolts (nominal outside
dimension across brackets is 898mm).
13. Fit grille and shroud back into
position.
