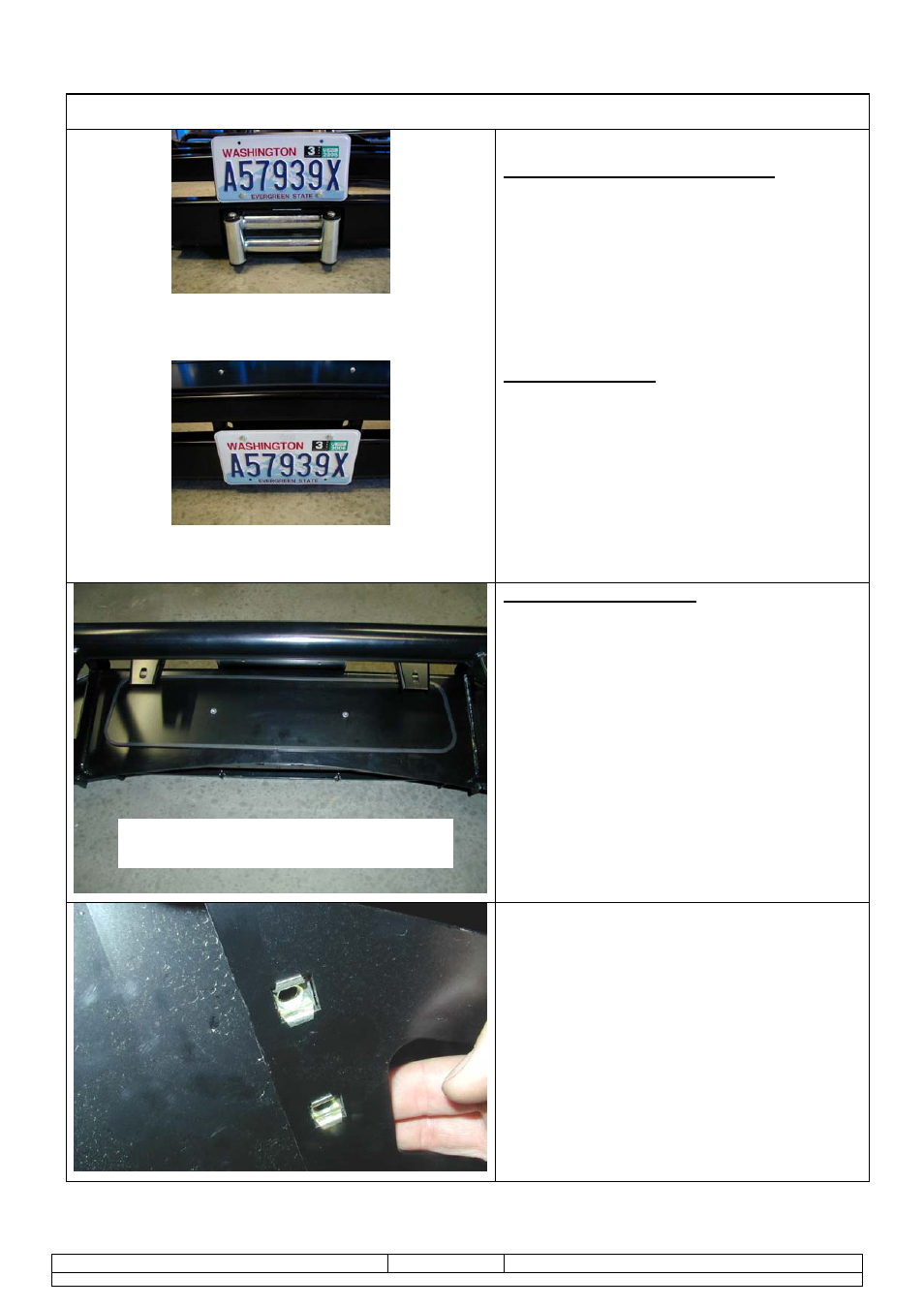

WINCH FITMENT
Fitting with winch, number plate above RFL
Fitting without winch, number plate covers RFL
opening
Fitting number plate – with winch
32. Bolt number plate to the bracket with the
M6 X 16mm bolts and M6 flange nuts
through the lower holes of the number
plate.
If not fitting winch.
33. Bolt the number plate through the top
holes using M6 X 16mm bolts and M6
flange nuts.
If not fitting winch cont.
34. Wrap rubber extrusion around winch
cover.
35. Place washers over the winch cover fixing
holes located on the top middle face of
the winch bumper.
36. Place the winch cover on top of the winch
bumper inline with the mount holes.
37. Bolt together using the M6 button head
stainless steel screws and M6 nuts.
38. Fit the M8 cage nuts to the square holes
in the wing brace on the LHS (washer
bottle side) of the bull bar. The body of
the cage nuts are to be on the inside of
the brace. These nuts are to be used to
fasten the washer bottle protection arm to
the bull bar.
View from above, rear of bull bar
