FITTING BULL BAR TO VEHICLE

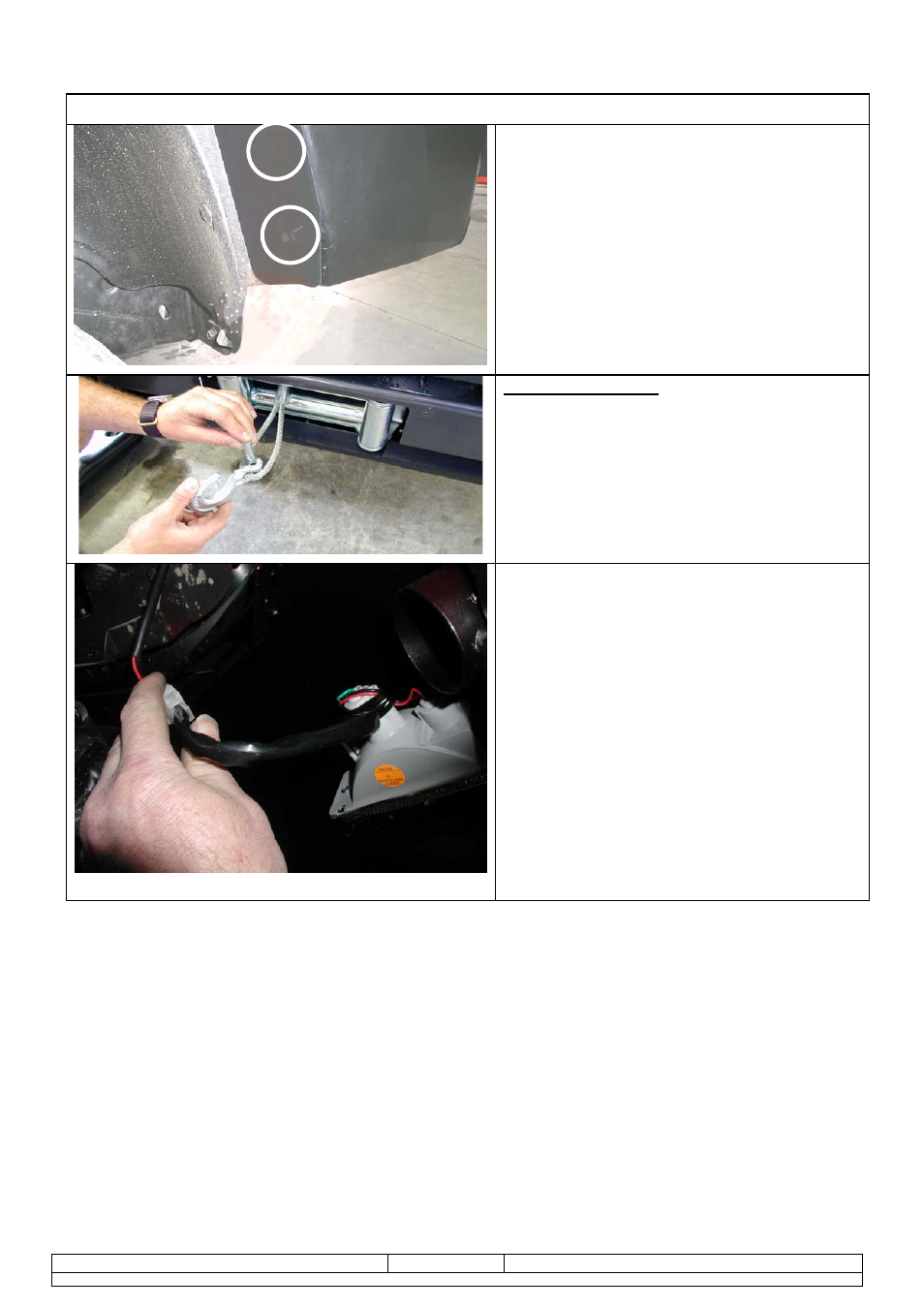

44. Fit inner guard plates to ends of bull bar
wings and fasten with M6 black screws
and washers.
If fitting with winch
45. With the winch cable through the roller
fair lead. Mount the hook to the end of the
cable.
46. Wire up the indicator and clearance lamp
assemblies. Use scotch locks to splice
cables to existing indicator and clearance
lamp wiring and cable tie securely.
47. If fog lights are to be installed, mount
positions are on lower pan area between
winch opening and high lift jack position.
Refer to the Warn winch manual for
vehicle wiring instructions.
Ensure that electrical cables are
installed well clear of sharp, hot or
moving objects. Secure the winch
cables to the vehicle and winch bumper
with the supplied cable ties.
