WINCH FITMENT

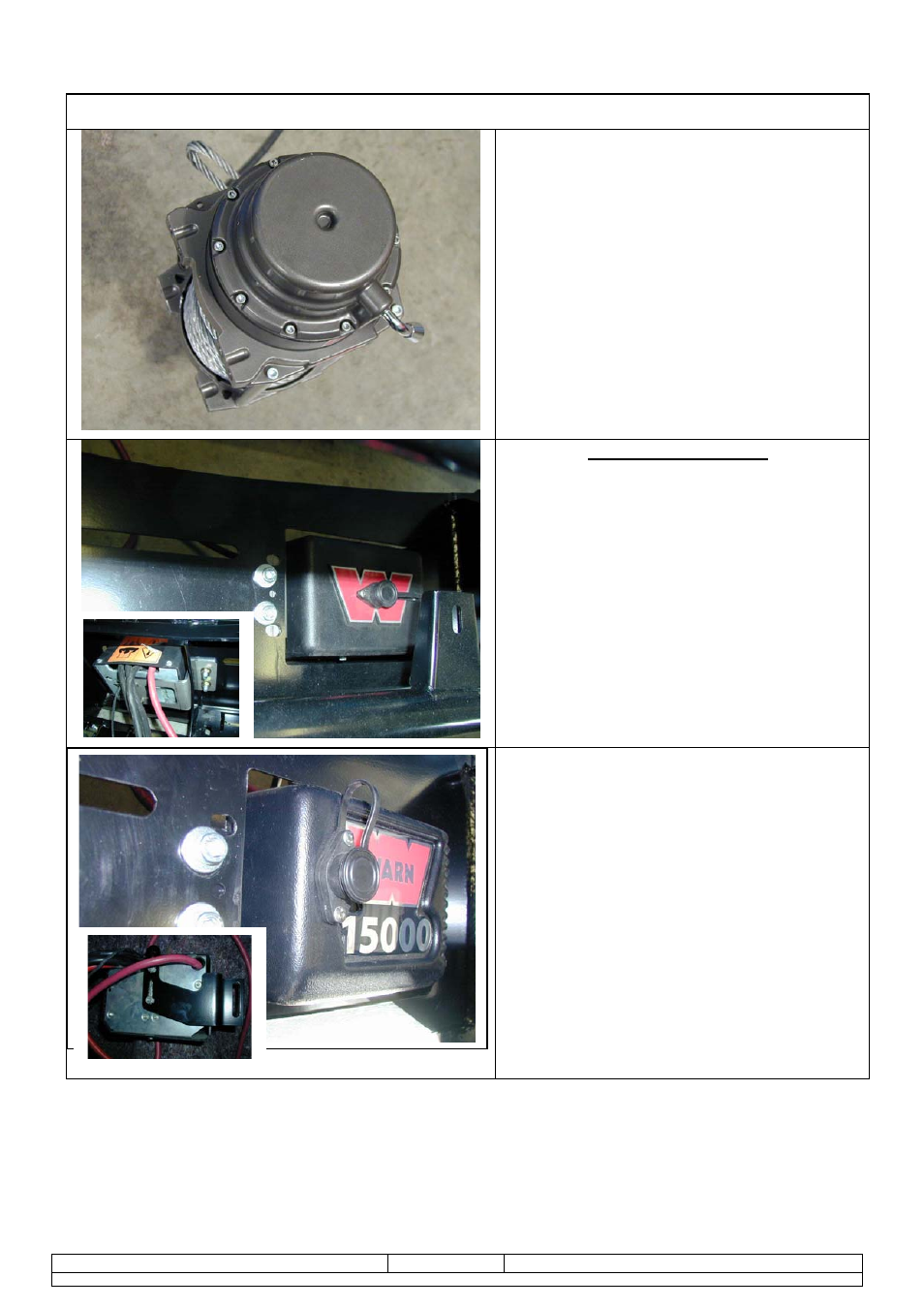

21. From the factory the winch handle
should be in the position as shown.
22. Remove cable retaining band and
position cable loop so it will go through
roller fairlead when it is placed in bull
bar.
23. Fit control box to pan:
• For 12000lb winches, use universal control
box bracket supplied, attaching to rear of
control box mount studs.
• Slide bracket flange under pan and align
with mount slots.
• Fasten in position with 2 x M10 cap screws,
black washers and flange nuts.
• For 15000lb winches, use Warn supplied
control box bracket, attaching to rear of
control box mount studs.
• Slide bracket flange under pan and align
with mount slots.
• Fasten in position with 2 x M10 cap screws,
black washers and flange nuts.
