Fitting instructions# 3783178
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
FITTING WINCH

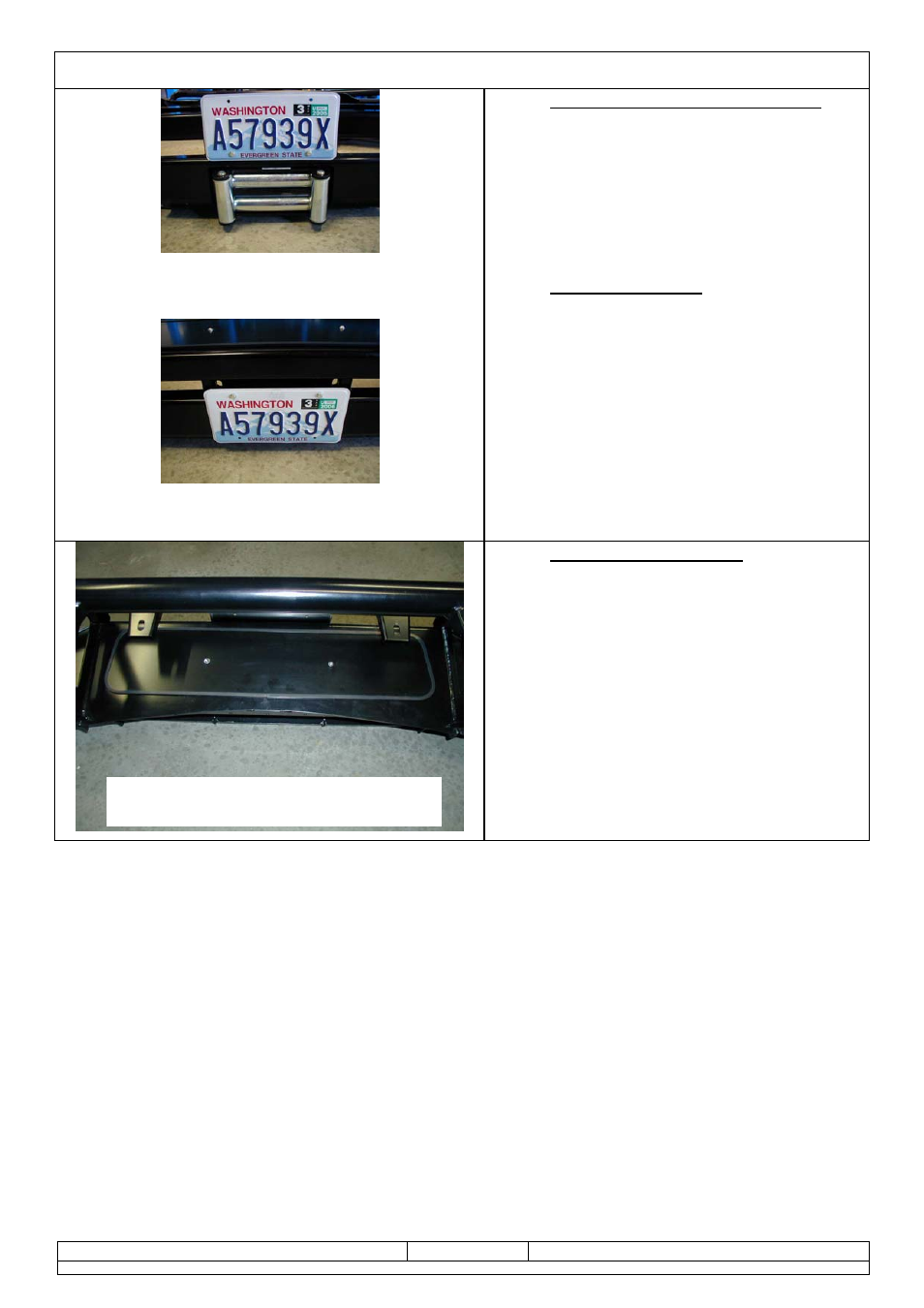

Fitting with winch, number plate above RFL
Fitting without winch, number plate covers RFL
opening
31. Fitting number plate – with winch
Bolt number plate to the bracket with the M6 X
16mm bolts and M6 flange nuts through the
lower holes of the number plate.
32. If not fitting winch.
Bolt the number plate through the top holes
using M6 X 16mm bolts and M6 flange nuts.
33. If not fitting winch cont.
Wrap rubber extrusion around winch cover.
Place washers over the winch cover fixing holes
located on the top middle face of the winch
bumper.
Place the winch cover on top of the winch
bumper inline with the mount holes.
Bolt together using the M6 button head
stainless steel screws and M6 nuts.
View from above, rear of bull bar
