Preparing bull bar for fitting – ARB 3462040 User Manual
Page 10
Last Rev Date: 24/7/07
Page 9 of 16
Fitting instructions# 3783176
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
PREPARING BULL BAR FOR FITTING

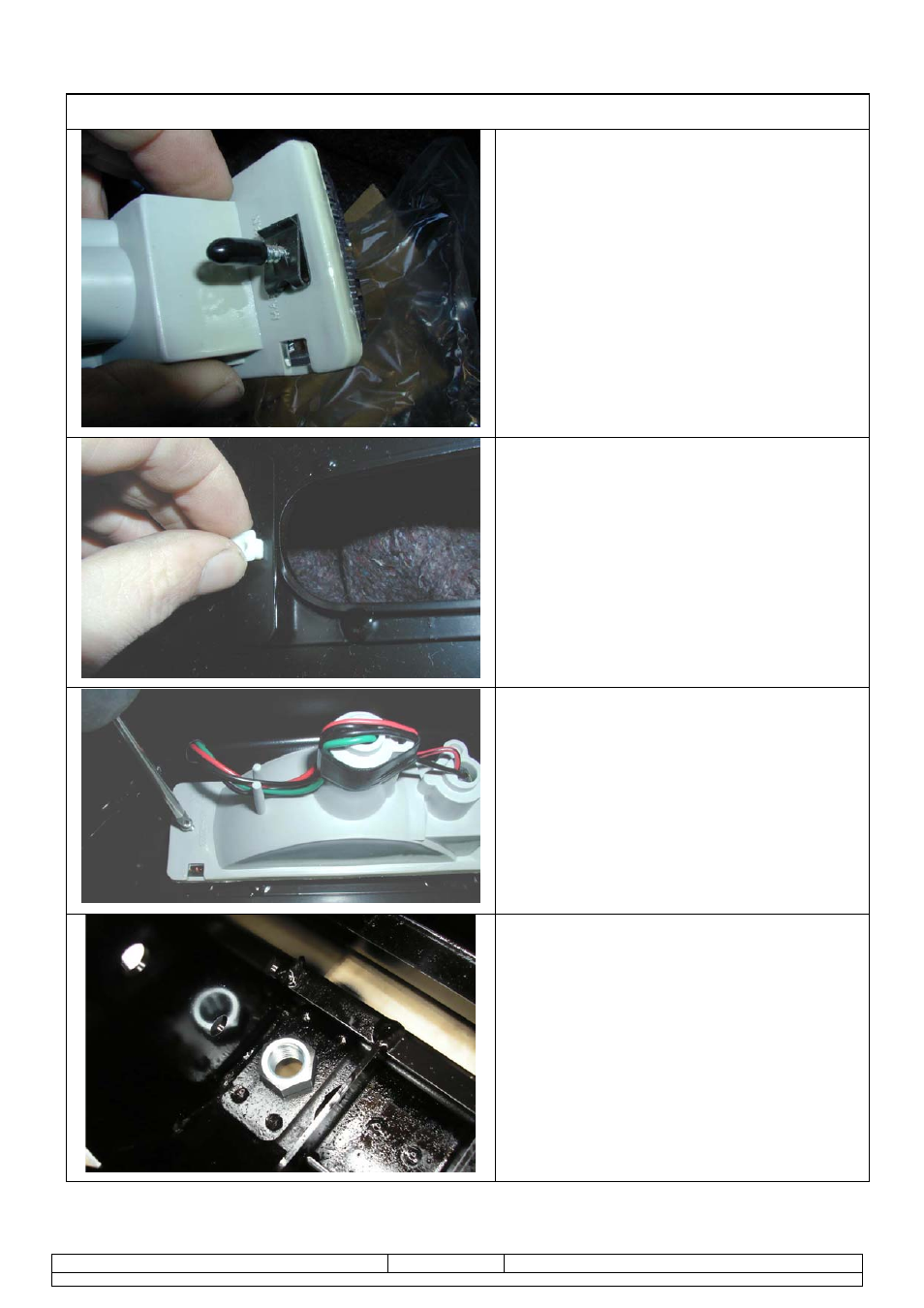

14. Remove lights from cartons and then
remove screws and speed nuts from each
light. These fasteners are not to be reused
– new screws are supplied in the fitting kit.
15. Insert nylon nuts into square holes in
light brackets inside wing area
16. Fit lights using screws supplied in fitting
kit, taking note of RH and LH light bodies,
they are different and must be placed on
the correct side of bull bar.
HINT: It may be an advantage at this stage
to rough in the wiring for indicators (Step
46) while the bull bar is not yet fitted.
17. Fit large eyebolt nut into the plate on
the inside of the bar.
