Preparing bull bar for fitting – ARB 3462040 User Manual
Page 25

Last Rev Date: 24/07/07
Page 8 of 14
Fitting instructions# 3783178
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
PREPARING BULL BAR FOR FITTING

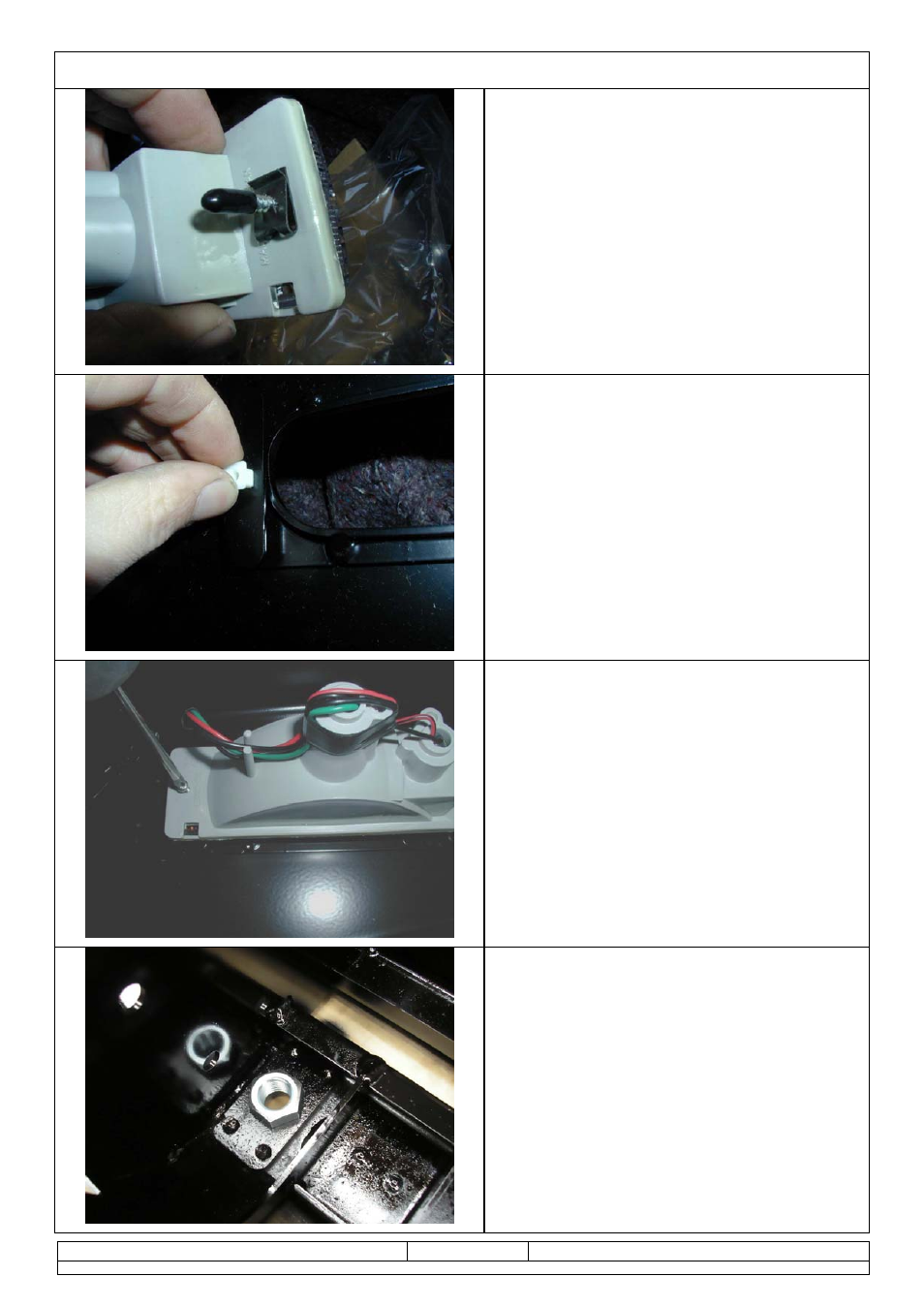

16. Remove lights from cartons and then
remove screws and speed nuts from each
light. These fasteners are not to be reused –
new screws are supplied in the fitting kit.
17. Insert nylon nuts into square holes in light
brackets inside wing area
18. Fit lights using screws supplied in fitting
kit, taking note of RH and LH light bodies,
they are different and must be placed on the
correct side of bull bar.
HINT: It may be an advantage at this stage to
rough in the wiring for indicators (Step 40)
while the bull bar is not yet fitted.
19. Fit large eyebolt nut into the plate on the
inside of the bar.
