Fitting instructions# 3783178

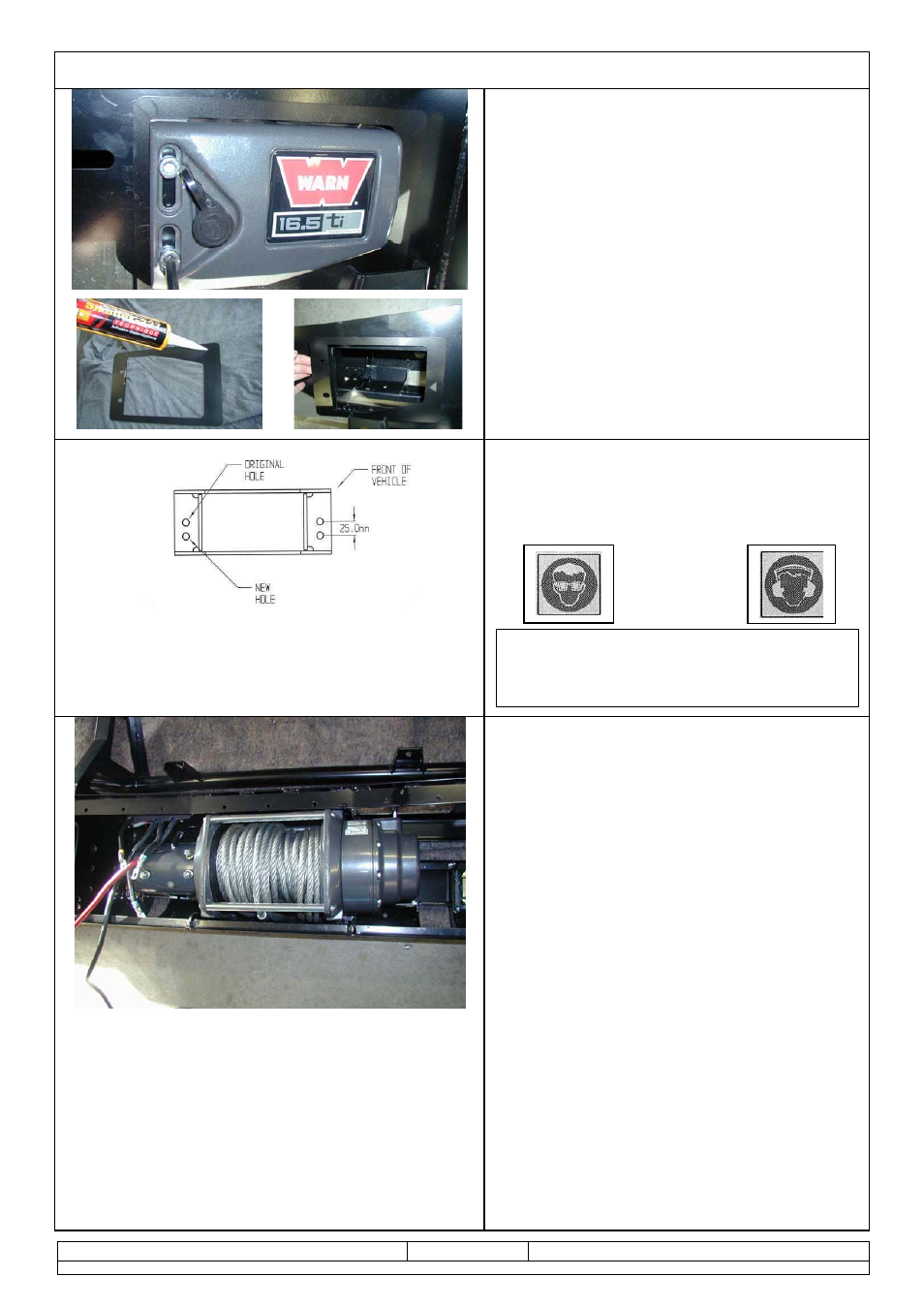

FITTING WINCH

• For 16500lb winches, apply Sikaflex (or

similar product) to rear of control box trim
plate from fitting kit (note orientation
critical to suit final position with control
box profile in pan opening).

• Position trim plate on top of pan centrally

about control box opening and line up
with mount slots.

• Fasten in position with 2 x M10 cap

screws and flange nuts from fitting kit.

26. On some models, the roller fair lead

must be drilled prior to fitment.

27. Mark out as shown and using a 13.0 mm

drill bit, drill two holes as shown in diagram.

28. Viewed from front of vehicle the winch

clutch (handle) must be positioned on the
LH side (same side as smaller square
access hole in pan). Cable must spool from
the bottom of winch. Draw off enough cable
so cable crimp can be pulled through roller
fairlead.

29. Bolt winch in position with the roller fair

lead in place.

Hint: To increase access to mount bolts in
front of roller fairlead, remove circlips from
bottom of each vertical roller shaft, push
shaft up so roller can be dislodged sideways.
Do up bolts in fairlead and winch, then refit
circlip.

30. Connect the winch control box cables to

the winch motor.

Refer to the Warn handbook for additional
information. Connect the long winch + & -
cables to the vehicle after the bar is installed.
Refer to the Warn winch manual for vehicle
wiring instructions.

Warning: Drilling operations can result in
flying metal debris, safety glasses should be
worn.
