Fitting mounting brackets – ARB 3462040 User Manual
Page 24
Last Rev Date: 24/07/07
Page 7 of 14
Fitting instructions# 3783178
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
FITTING MOUNTING BRACKETS

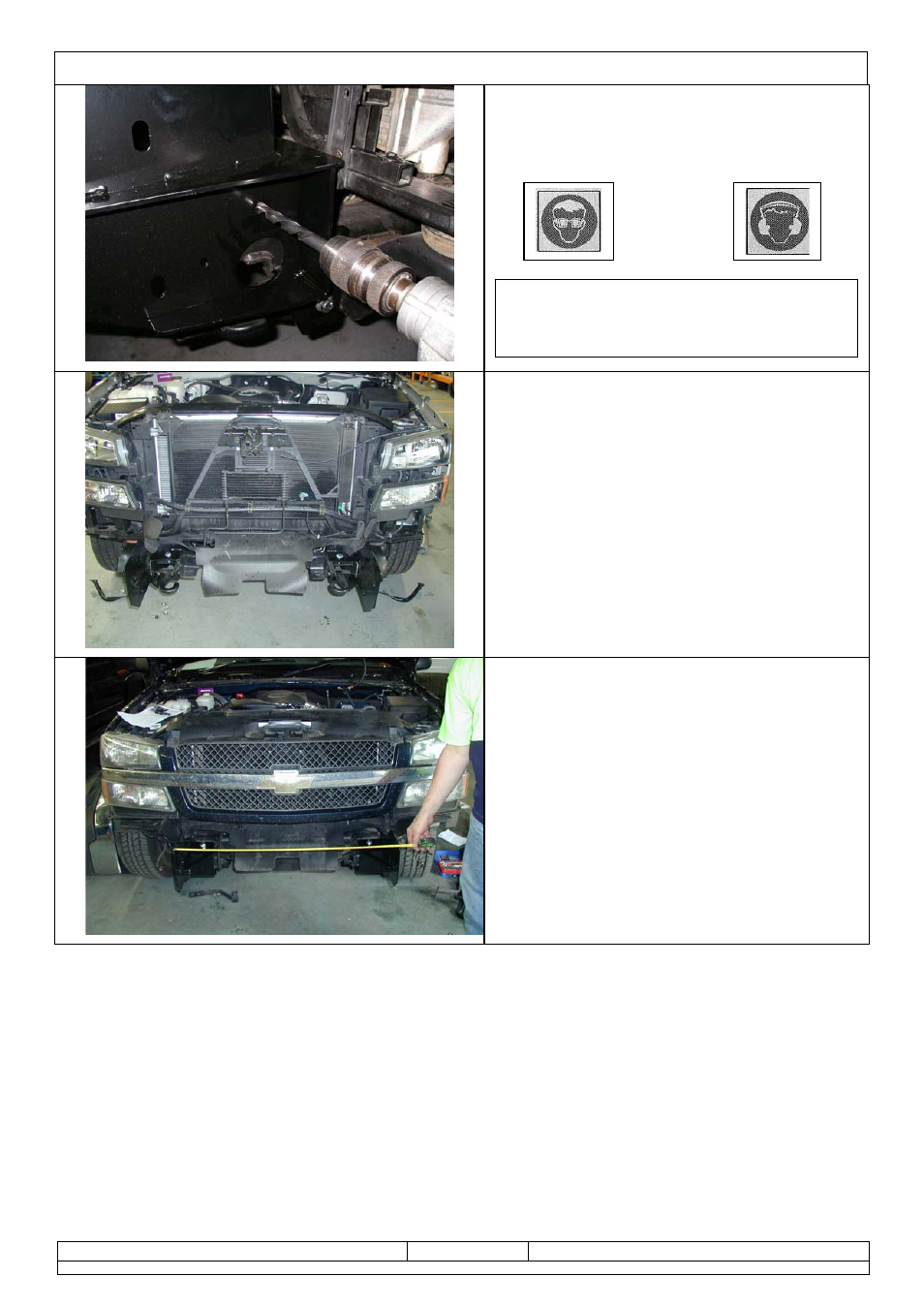

10.
Drill pinning hole in top position as shown
then insert and do up M12 bolt set.
11. Tighten up all bolts
12. Check that tops of brackets are
horizontal and that brackets are parallel to
each other.
13. Overall pitch should be 910-915mm.
14. If not release bolts and make necessary
adjustments.
15. Refit grille and shroud.
Warning: Drilling operations can result
in flying metal debris, safety glasses
should be worn.
