OR-Fab 83245 JEEP CHEROKEE XJ HD COMP CUT REAR BUMPER (CUT & FOLDED) REAR LOWER QUARTERS User Manual
Page 8
8
XJ HD Rear “COMP CUT” Bumper - Kit 83245

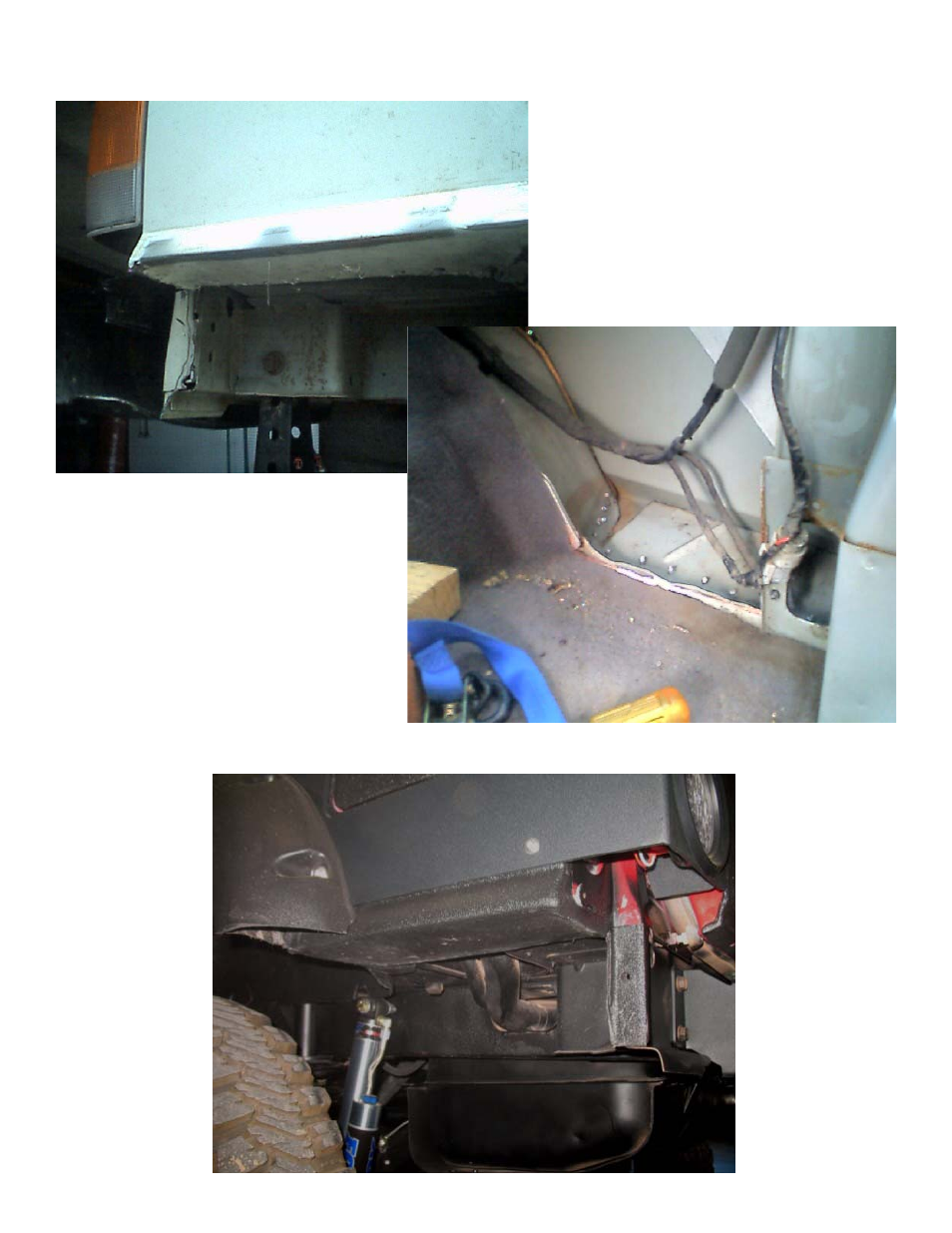

Step 8: The following photo’s shown is the inner and outer sections all folded up and ready to be “pop
riveted”, welded or bolted together followed by some sealant and a top coat of paint to prevent rust:
Finished results will “very” due to the skill level and patience of each fabricator.
