2 Rock Slider Rear Bumper - Kit 83209
Before Starting Installation
1. Carefully read all warnings and instructions com-
pletely before beginning.
2. Verify all parts have been received in this kit by
checking the parts list at the end of this document.
3. Only install this kit on the vehicle for which it is
specified. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call technical support at (928)
636-7080.
4. Park vehicle on a clean, dry, flat, level surface and
block tires so vehicle cannot roll in either direction.
Engine Compartment
1. Disconnect both battery cables. Disconnect nega-
tive cable first, then positive cable.
NOTE
Kit parts are prefaced by the word kit and appear in
bold print.
NOTE
If parts are missing from kit, please be prepared to pro-
vide the following information:
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
5. Inspector # from inside box cover

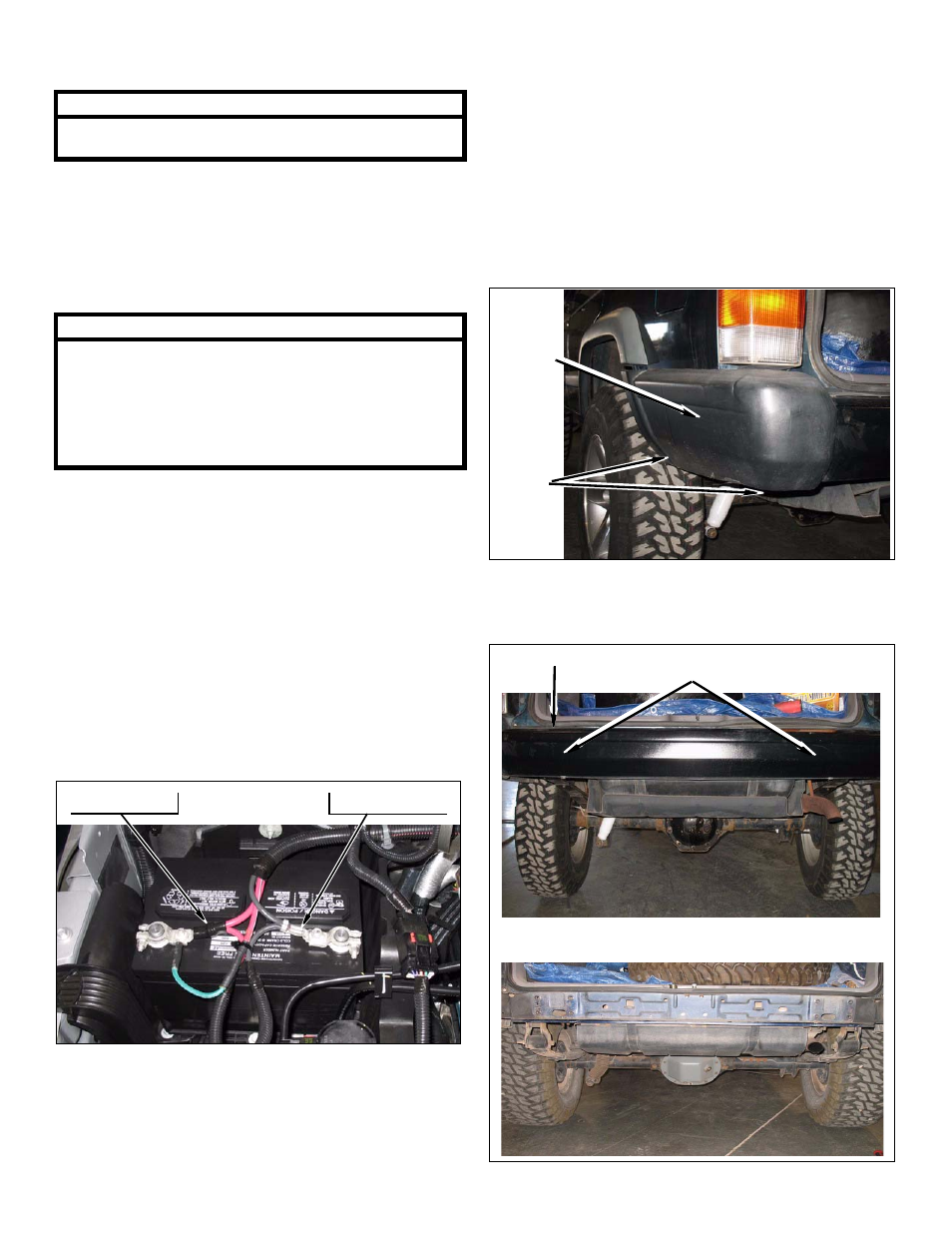

Positive Cable Negative Cable
Rear Bumper
1. Remove Factory Bumper
a. 97-Up: Remove two bolts from corner section
on bottom side of bumper. Then gently push up
and remove corner section.
b. After corner section is removed you may remove
existing bracket by drilling out the rivets(1/4” drill
bit) and remove bracket from rear quarter panel.
c. 84-01: Remove eight bolts from center section
bumper brackets (right & left) at frame and
remove bumper.
Corner
section
Bolts
Rear bumper Remove eight bolts at
Frame
Rear mounts after bumper is removed
