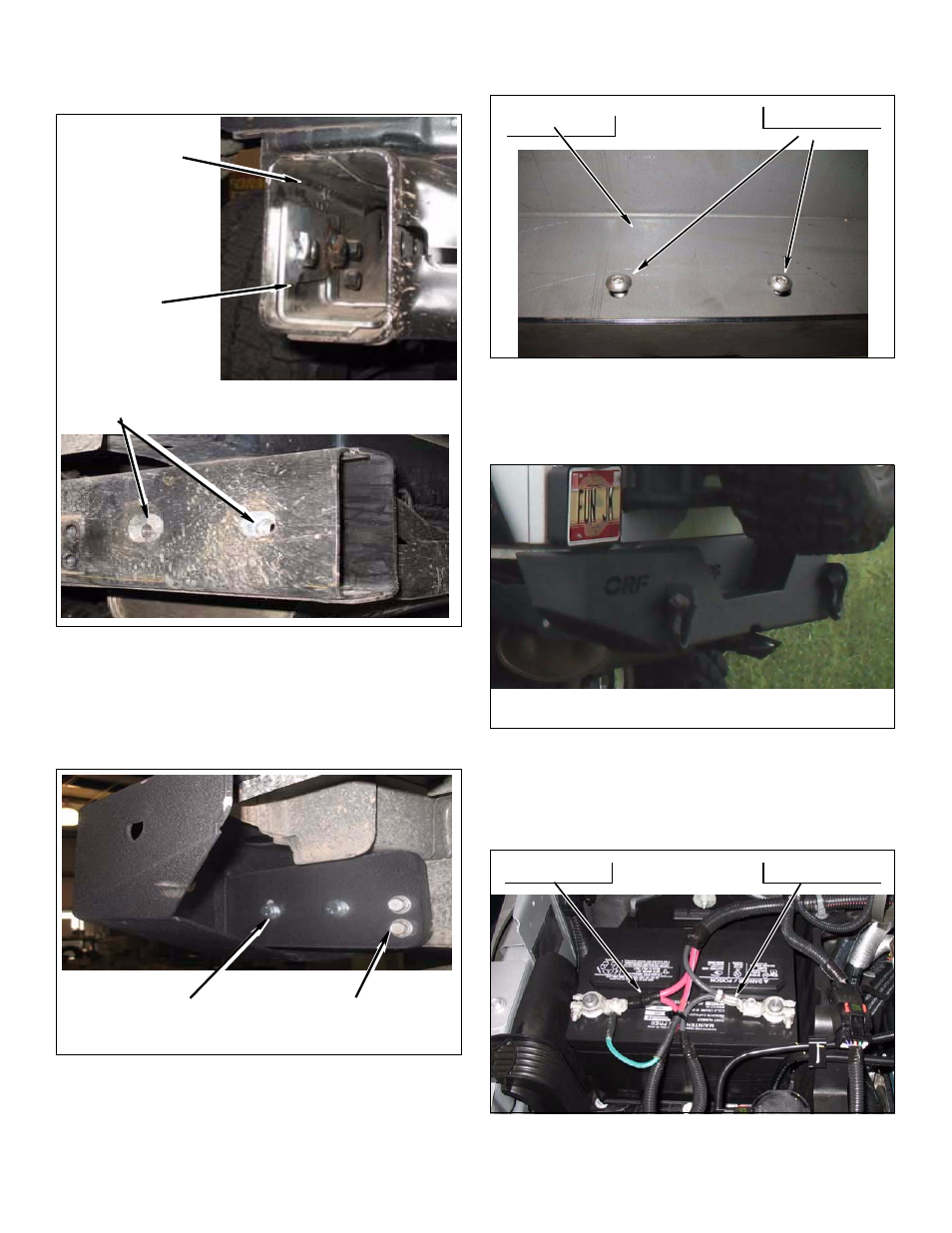

OR-Fab 83208 3/16 PLATE METAL REAR BUMPER FOR JEEP JK - 2/4 DOOR - Manual (Page 3)

3 Rock Slider Rear Bumper - Kit 83208
a. Position Kit Nut Plate inside both pass and drvr
frame rail so that nuts line up with holes as
shown.
b. Position kit bumper on vehicle. Secure bumper
to frame rail on both sides using kit, 10m-1.5x40
bolts & washers, for forward two holes and kit
1/2” x 1-1/2” bolts & 1/2” washers through nut
plate inside frame rail. Do not tighten at this
time.
OE Frame Rail
Nut Plate
Align Nut
Plate with
frame holes
1/2” x 1-1/2” bolts &
washers 10m -1.5x40 bolts
& washers
c. Install two kit bolts (3/8-16x1) through bumper
center plate and into kit anchor bracket..
d. Insure bumper is centered and level. Tighten
down all hardware at this time.
Engine Compartment
1. Connect both battery cables. Connect positive cable
first, then negative cable.
Bumper
Anchor Bolts
Positive Cable Negative Cable
