OR-Fab 83208 3/16 PLATE METAL REAR BUMPER FOR JEEP JK - 2/4 DOOR - Manual (Page 2)

2 Rock Slider Rear Bumper - Kit 83208
Rear Bumper
1. Remove Factory Bumper
a. Remove two bolts from brackets on back side of
bumper.
b. Remove two bolts from each bumper bracket at
frame and remove bumper.

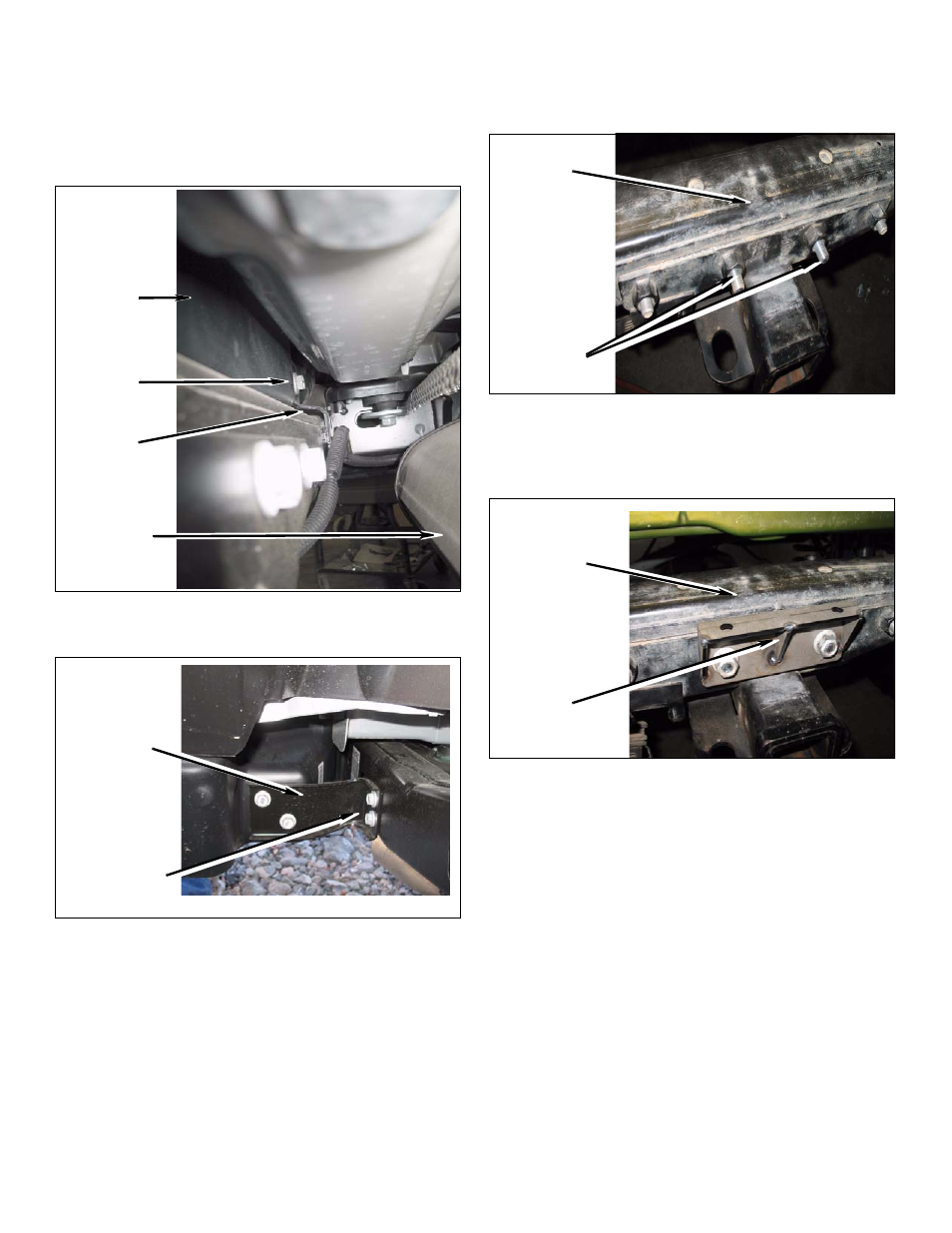

INSTALL REAR BUMPER
1. Rear Bumper Kit Anchor Plate
Bumper
Bolt
Muffler
Bracket
Bumper
Bracket
Bolts at
Frame
a. Remove two center 12mm bolts from factory
hitch mount or tow hook and replace bolts with
two kit bolts (12m-1.5x120mm) and two kit
washers (12m)..
b. Install kit anchor bracket with two kit flange
nuts (12m-1.5). Center kit anchor bracket flush
with the mounting surface and tighten down kit
flange nuts..
2. Mounting Kit Bumper Assembly
Frame
Bolts at
Frame
Frame
Anchor Bracket
