Table 22 – EconoMi$er IV Input/Output Logic

INPUTS

OUTPUTS

Demand Control

Ventilation (DCV)

Enthalpy*

Y1

Y2

Compressor

N Terminal†

Outdoor

Return

Stage

1

Stage

2

Occupied

Unoccupied

Damper

Below set

(DCV LED Off)

High

(Free Cooling LED

Off)

Low

On On

On

On

Minimum position

Closed

On Off

On

Off

Off Off

Off

Off

Low

(Free Cooling LED

On)

High

On On

On

Off

Modulating** (between

min. position and

full-open)

Modulating**

(between closed and

full-open)

On Off

Off

Off

Off Off

Off

Off

Minimum position

Closed

Above set

(DCV LED On)

High

(Free Cooling LED

Off)

Low

On On

On

On

Modulating†† (between

min. position and DCV

maximum)

Modulating††

(between closed and

DCV

maximum)

On Off

On

Off

Off Off

Off

Off

Low

(Free Cooling LED

On)

High

On On

On

Off

Modulating***

Modulating†††

On Off

Off

Off

Off Off

Off

Off

*

For single enthalpy control, the module compares outdoor enthalpy to the ABCD setpoint.

Power at N terminal determines Occupied/Unoccupied setting: 24 vac (Occupied), no power (Unoccupied).

** Modulation is based on the supply-air sensor signal.
†† Modulation is based on the DCV signal.
*** Modulation is based on the greater of DCV and supply-air sensor signals, between minimum position and either maximum position (DCV)

or fully open (supply-air signal).

††† Modulation is based on the greater of DCV and supply-air sensor signals, between closed and either maximum position (DCV) or fully

open (supply-air signal).

C06053

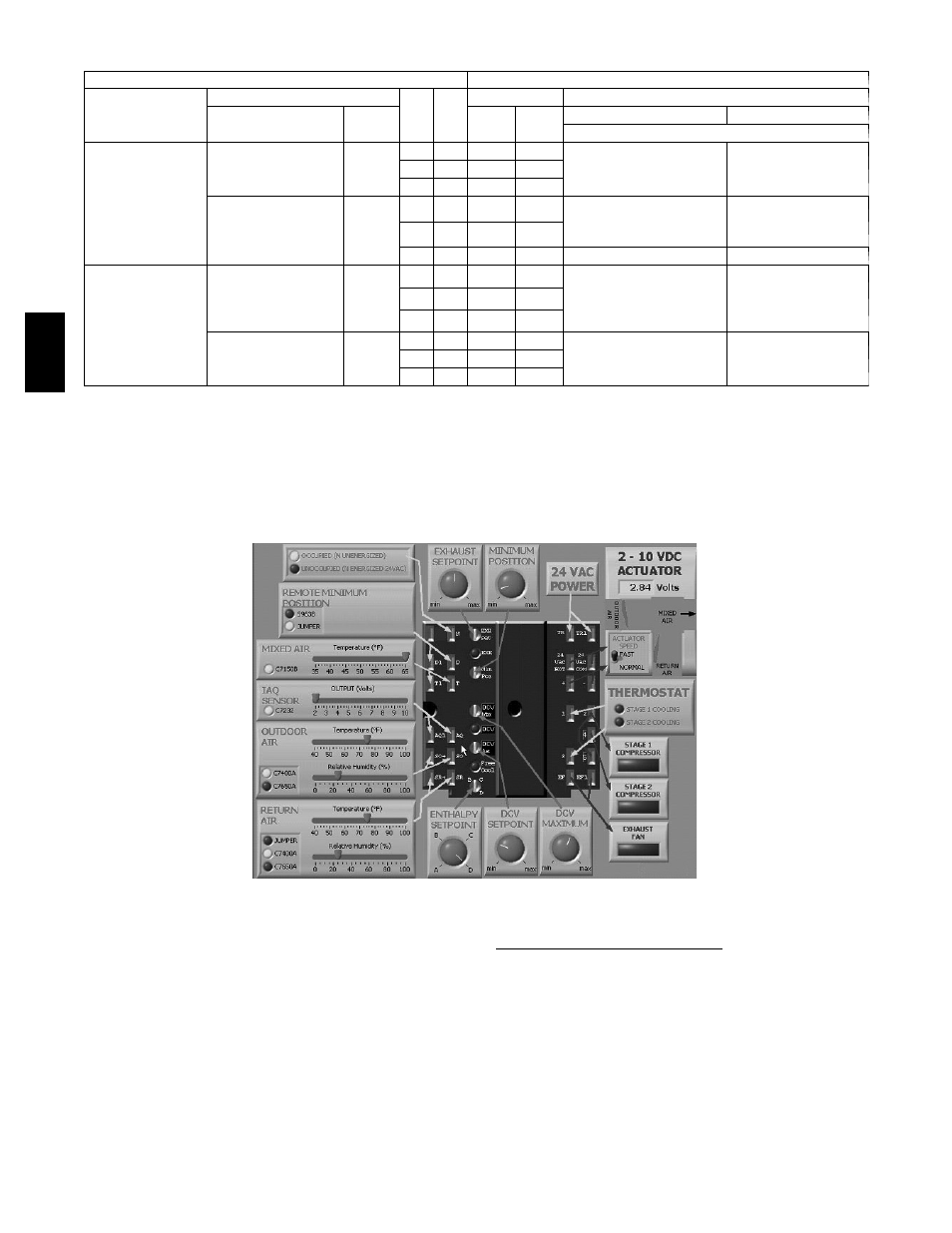

Fig. 64 -- EconoMi$er IV Functional View

EconoMi$er IV

Table 22 provides a summary of EconoMi$er IV.

Troubleshooting instructions are enclosed.

A functional view of the EconoMi$er is shown in Fig. 64.

Typical settings, sensor ranges, and jumper positions are

also shown. An EconoMi$er IV simulator program is

available from Bryant to help with EconoMi$er IV

training and troubleshooting.

EconoMi$er IV Standard Sensors
Outdoor Air Temperature (OAT) Sensor
The outdoor air temperature sensor (HH57AC074) is a 10

to 20 mA device used to measure the outdoor-air

temperature. The outdoor-air temperature is used to

determine when the EconoMi$er IV can be used for free

cooling. The sensor is factory-installed on the

EconoMi$er IV in the outdoor airstream. (See Fig. 60.)

The operating range of temperature measurement is 40_ to

100_F (4_ to 38_C). (See Fig. 67.)
