Power supply removal and replacement
5
• If the Brocade VDX 8770-4 is operating and will continue to operate during the
replacement, check the power LEDs to verify that the minimum number of power supplies
is functioning. Refer to
Table 3 and Table 4 in “Installation of the Brocade VDX 8770-4” to
check your power requirements.
2. Unlatch the power cord retainer clip.
3. Remove the power cord.
4. Loosen the captive screw.
5. Push down on the handle to eject the power supply.
6. Grasp the handle and pull, sliding the power supply from the chassis and supporting the power
supply from beneath as you remove it.

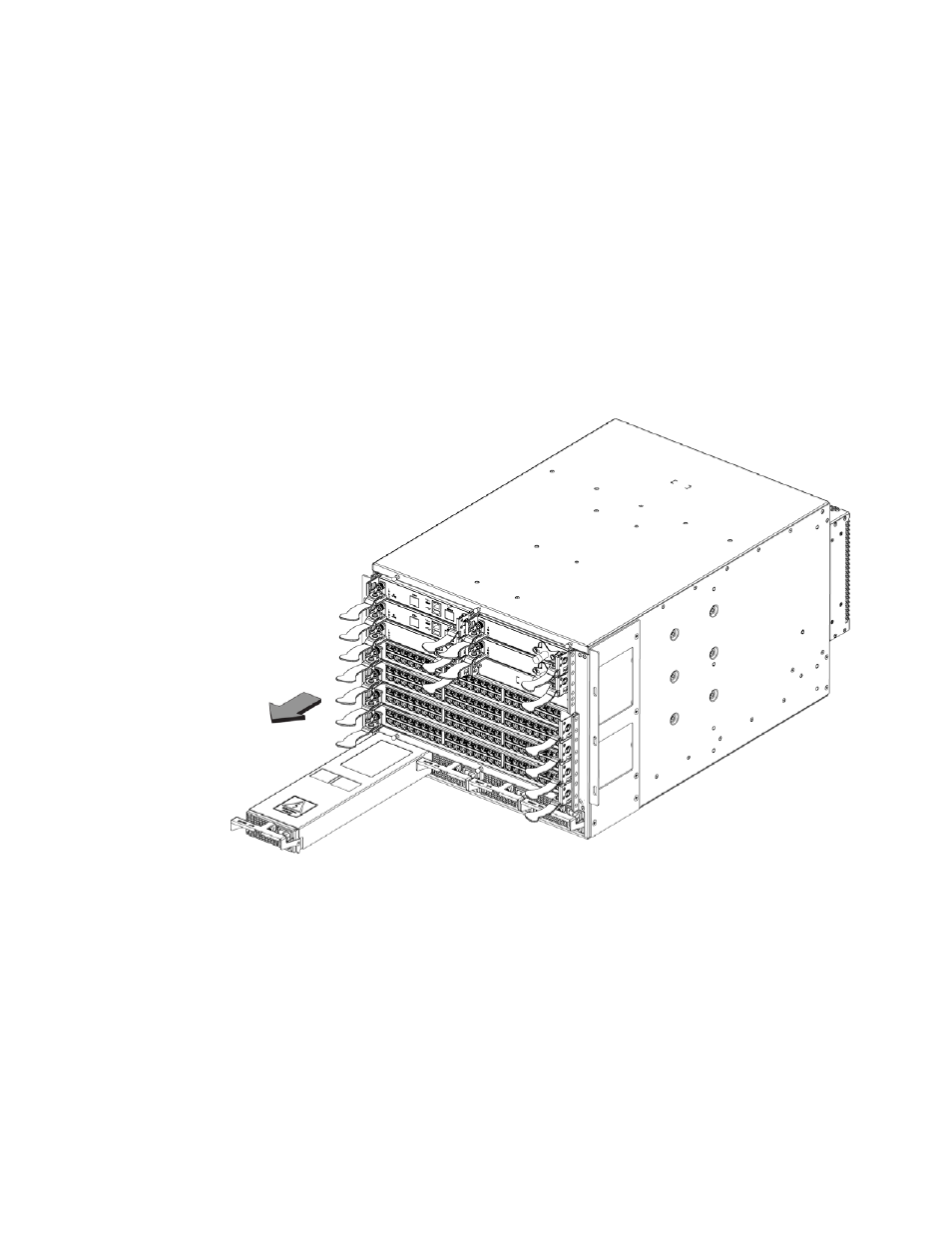

FIGURE 16 Removal and replacement of the power supply
Replacing an AC power supply
If you are not replacing the power supply, insert a filler panel into the slot.
For the following procedure, refer to Figure 16 .
