Preparation and Simple Use Guide
8

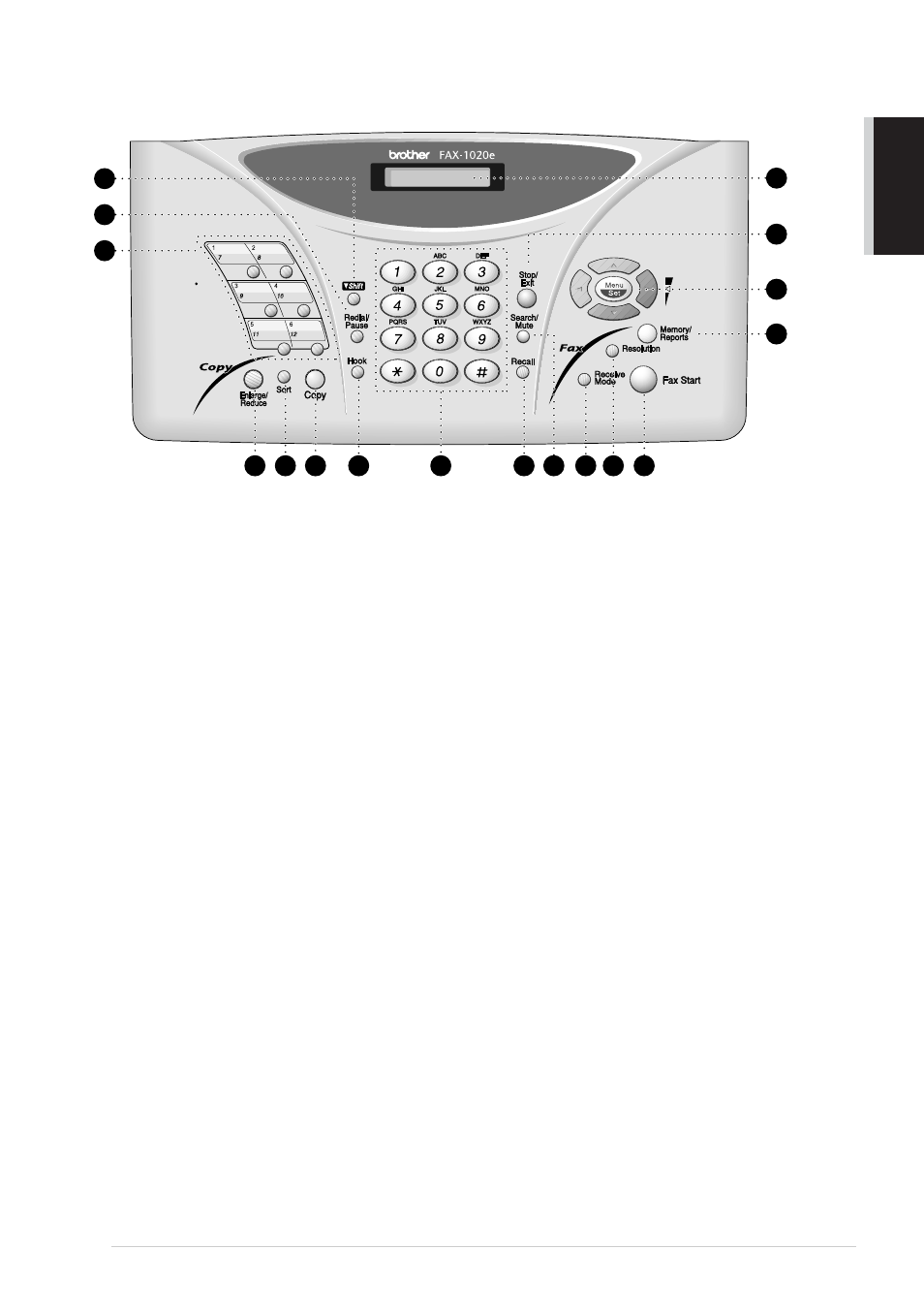

FAX-1020e Control Panel Overview
4 6 7 8 9 11 12 13
14
10 5
1
2
3
15
17
16
1
Shift
This key is used to access the “7” through
“12” One Touch numbers.
2
Redial/Pause
Redials the last number called. Also
inserts a pause in autodial numbers.
3
One Touch Dial Keys
These 6 keys give you access to 12
previously stored phone numbers.
4
Enlarge/Reduce
Use this key to enlarge or reduce copies
depending on the ratio you select: 150%,
125%, 120%, 100%, 93%, 87%, 75% or
50%.
To reduce the image size automatically to
fit on to A4 paper, select AUTO.
5
Sort
Use this key when you want multiple
copies of a multiple page original in order.
6
Copy
Makes a copy.
7
Hook
Use to shuttle the line between handset
and monitor speaker.
8
Dial Pad
Dials phone and fax numbers and can be
used as a keyboard for entering
information into the machine.
# key lets you switch the dialling type
during a telephone call from “PULSE” to
“TONE”. (Not available in New Zealand)
9
Recall
Use this key to gain access to an outside
line and/or to recall the operator. (For
some countries)
0
Search/Mute
Lets you dial stored phone numbers by
pressing # and a two-digit number. Also
lets you look up numbers stored in the
dialling memory. Also, lets you put calls
on hold.
A
Receive Mode
Use to select how the fax machine will
handle incoming calls.
B
Resolution
Sets the resolution when you send a fax or
make a copy.
C
Fax Start
Starts sending a fax.
D
Memory/Reports
With document in the Automatic
Document Feeder: Lets you take
advantage of memory transmission.
Without document in the Automatic
Document Feeder: Lets you access the
Reports menu so you can select a report to
print: HELP LIST, QUICK-DIAL,
JOURNAL, TRANSMISSION,
TEL.INDEX, SYSTEM SETUP and
MEMORY STATUS List.
