11
LEGEND
C — Contactor
COMP — Compressor
IFC — Indoor (Evaporator) Fan Contactor
NEC — National Electrical Code
TB — Terminal Block
208/230-1-60
575-3-60
(SIZES 060 AND 072)
208/230-3-60
(SIZES 036 AND 048)
208/230-3-60
460-3-60
(SIZES 060 AND 072)
575-3-60
(SIZES 036 AND 048)
460-3-60
(SIZES 036 AND 048)
C06158

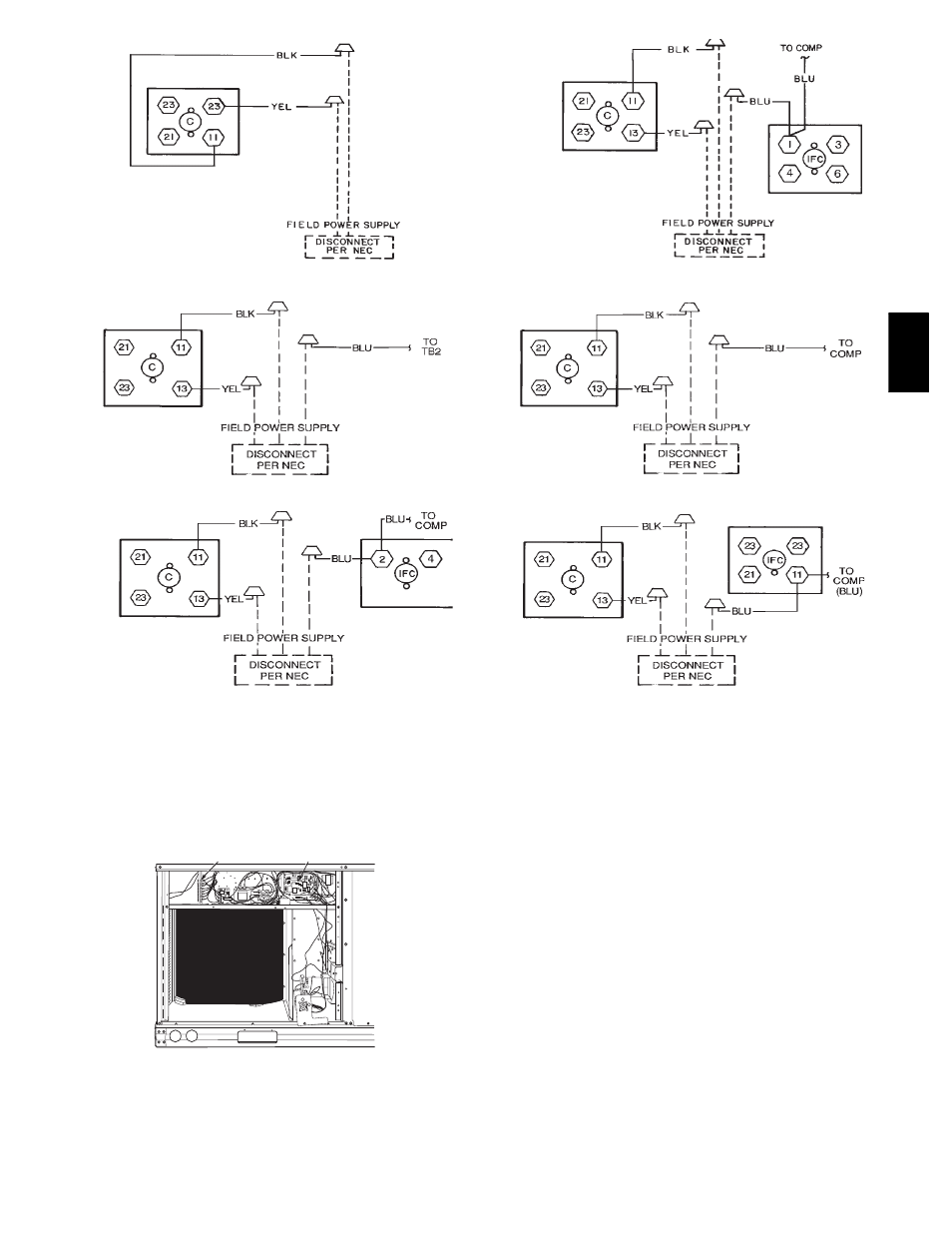

Fig. 11 --- Power Wiring Connections
LOW VOLTAGE
CONNECTIONS
INTEGRATED GAS UNIT
CONTROLLER (IGC)
C06125
Fig. 12 --- Field Control Wiring Raceway
