24
Chapter 2

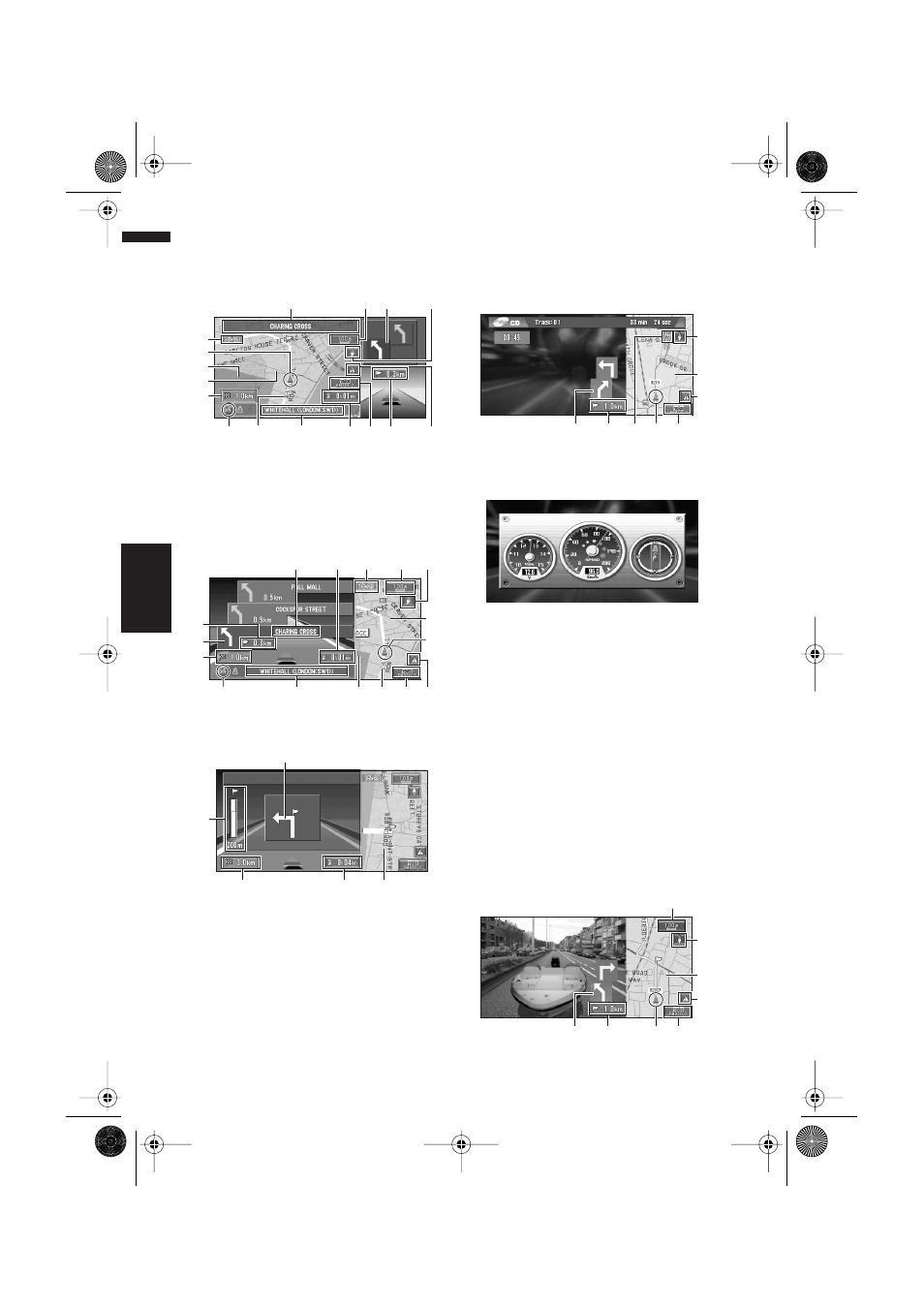

Menu and Map Display
NAVI
Mixed Mode
The map of your surroundings is shown on the
left, and an arrow indicating the direction of
travel is shown on the right.
St.List Mode
Displays the name of the street you will next
travel along and an arrow indicating the direction
of travel.
AV Status
Information on the audio source currently being
played is indicated on the left-hand side of the
screen, while the map of your surroundings is
indicated on the right.
Vehicle Dynamics Display
Indicates the status of your vehicle.
❒ You can change the items indicated to the
meters on the left and right.
❒ In the Vehicle Dynamics Display mode, the
speedometer display may show a different
speed than your vehicle’s actual speedome-
ter, because your unit measures speed in a
different way.
❒ Vehicle Dynamics cannot be displayed if
sensor initialisation is not complete.
➲ Setting the Vehicle Dynamics Display ➞
Page 50
Rear View
Rear view image is displayed on the left-hand
side of the screen, while the map of your sur-
roundings is indicated on the right.
(2) (10) (8)
(4)
(11)
(6) (1)
(5) (8)
(4)
(17)
(6)
(12)
(7) (16)
(18)
(3)
(13) (9)
Normal condition
When approaching an intersection
(When “Close-up of Junction” is off)
(1) (7)
(5) (10) (8)
(3)
(14)
(4)
(2)
(6) (11)
(17) (13)
(16)
(9)
(12)
(16)
(4)
(15)
(14) (12)
(10) (3)
(6)
(14)
(9)
(19) (2) (16)
(10) (3)
(6)
(14)
(9)
(7)
(2) (16)
