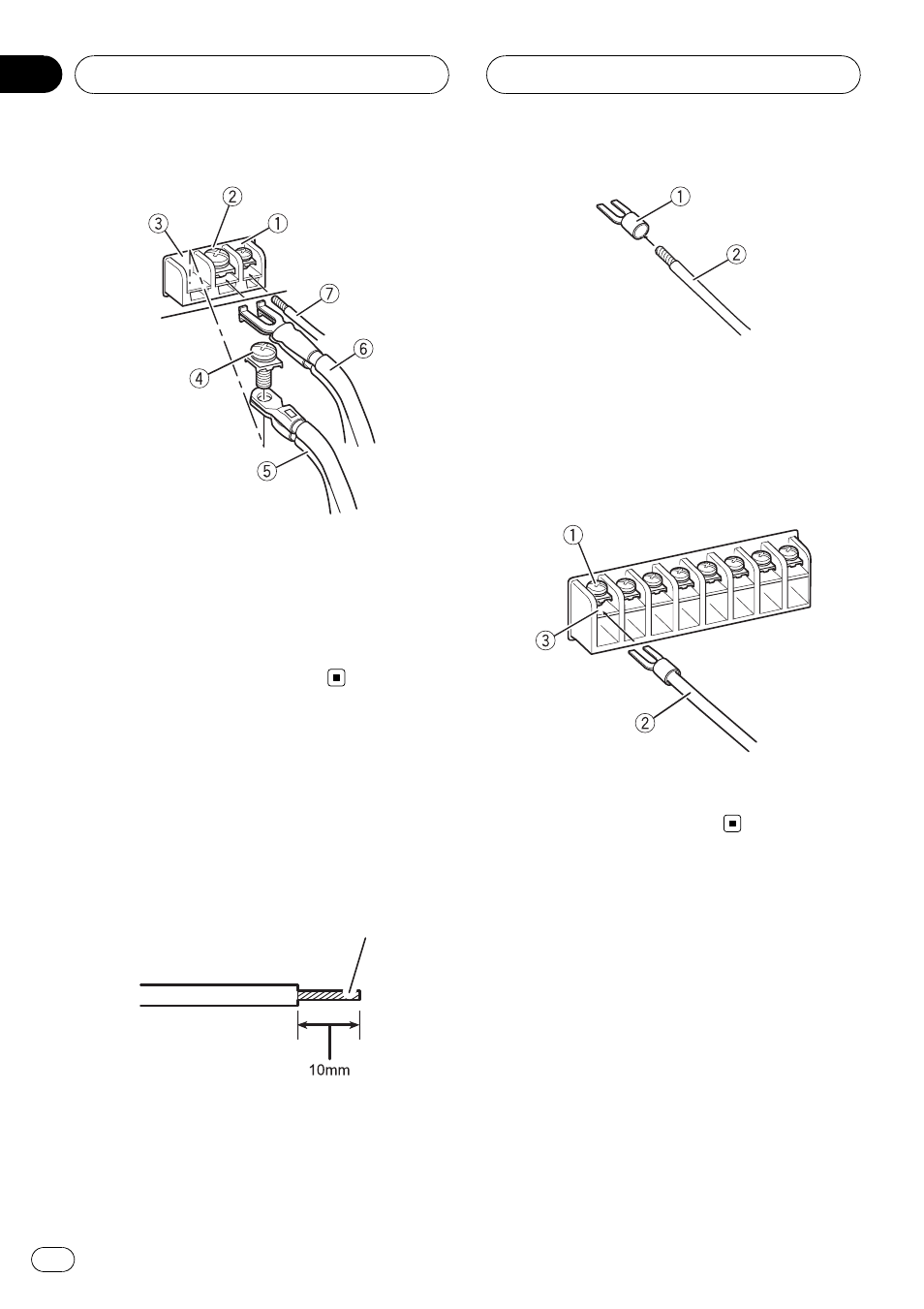

Page 12: Connecting the units

1 System remote control terminal
2 GND terminal
3 Power terminal
4 Terminal screws
5 Battery wire
6 Ground wire
7 System remote control wire
Connecting the speaker
output terminals
1
Expose the end of the speaker wires
using nippers or a cutter by about 10 mm
and twist.
Twist
2
Attach lugs to speaker wire ends. Lugs
not supplied.
Use pliers, etc., to crimp lugs to wires.
1 Lug
2 Speaker wire
3
Connect the speaker wires to the
speaker output terminals.
Fix the speaker wires securely with the term-
inal screws.
1 Terminal screws
2 Speaker wires
3 Speaker output terminals
Connecting the units
En
12
Section
03
