Connecting the system, English – Pioneer AVIC-X3 User Manual

Page 9

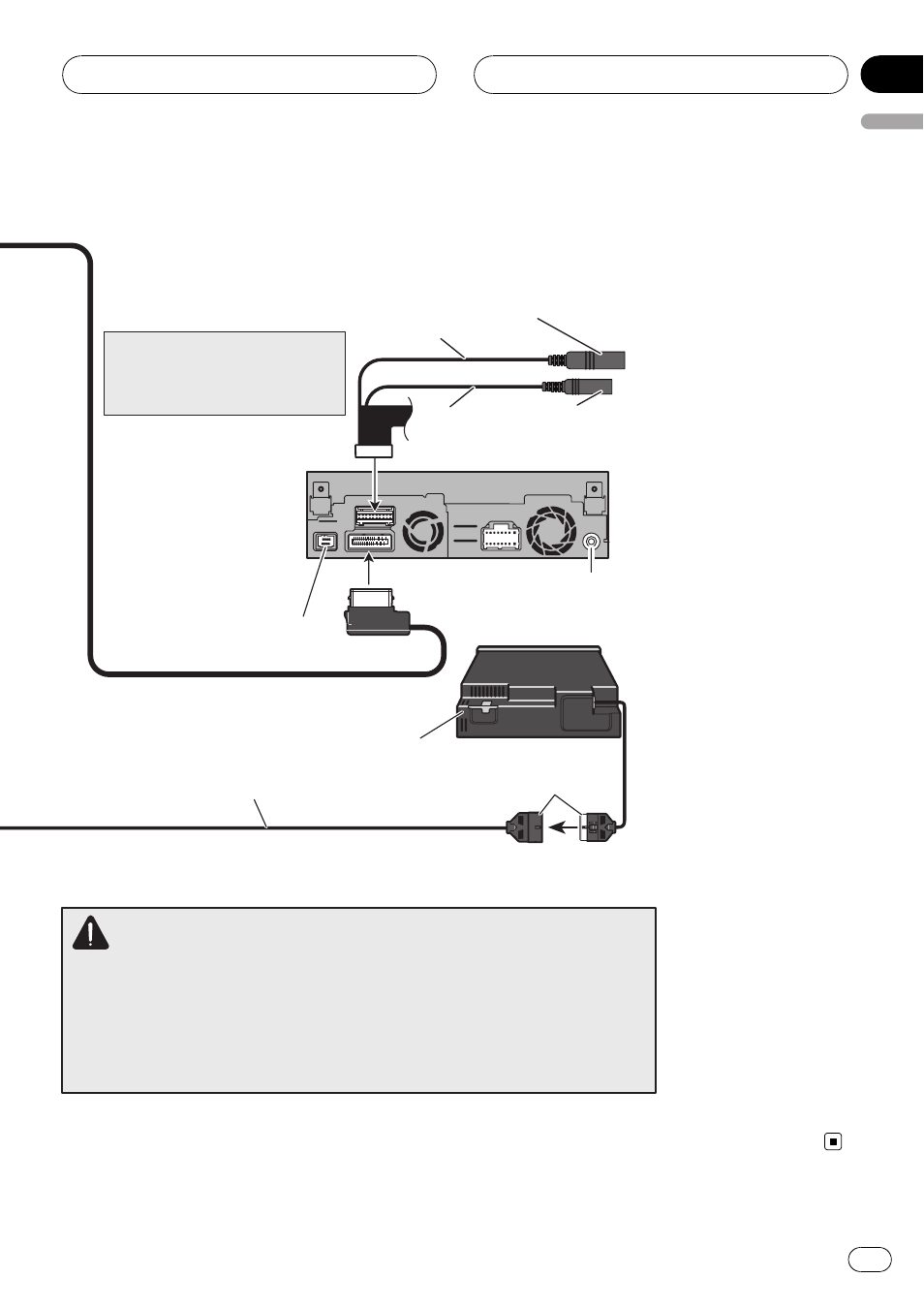

Digital output*

Extension port
Not used.

*: This terminal is intended to

support future equipment and
should not be used if you are
using this product by itself.

The display unit

25 pin cable (supplied with Multi-DVD player)

Multi-DVD player
(XDV-P6) (sold separately)

Black

20 cm

WIRED REMOTE INPUT
Please see the Instruction
Manual for the Wired Remote
Control Adapters (sold separately).

WARNING

• To avoid the risk of accident and the potential violation of applicable laws, this

product should never be used while the vehicle is being driven except for
navigation purposes. And, also Rear Displays should not be in a location where it
is a visible distraction to the driver.

• In some countries, the viewing of images on a display inside a vehicle even by

persons other than the driver may be illegal. Where such regulations apply they
must be obeyed and this product´s video source should not be used.

GUIDE SP OUTPUT*
(Guide speaker output)

Connecting the System
