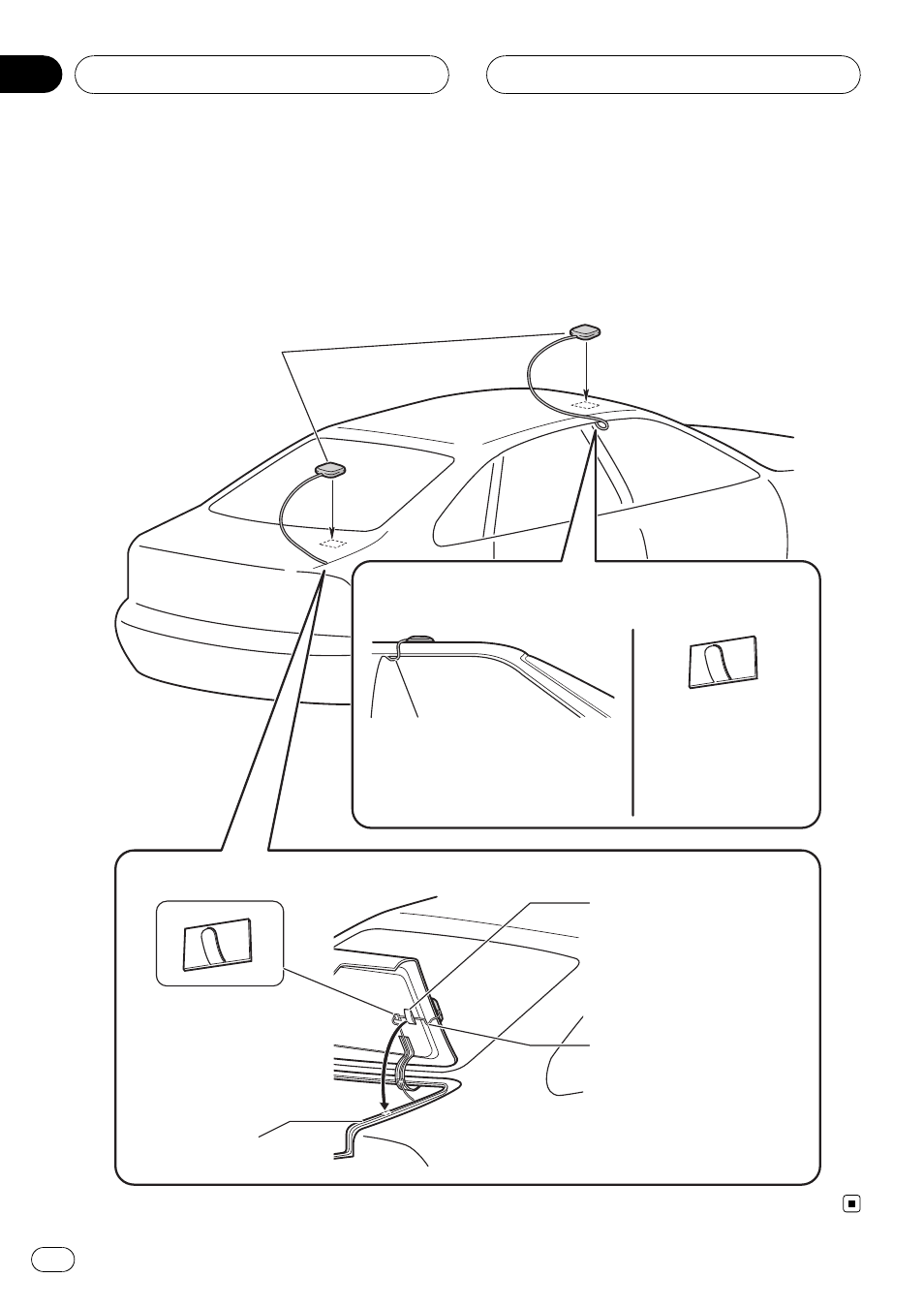

When installing the aerial
outside the vehicle (on the body)
Put the GPS aerial in a position as level as pos-
sible, such as on the roof or boot lid. (The GPS
aerial is fastened with a magnet.)
Clamps
Use clamps to secure
the lead where
necessary inside the
vehicle.
Clamps
Use clamps to secure the
lead where necessary inside
the vehicle.
GPS aerial
When routing the lead in from the top of the
door
Make a U-shaped loop in the lead
on the outside to prevent rainwater
from flowing along the lead into the
interior of the vehicle.
When routing the lead in from inside the boot
Waterproof pad
Make sure the waterproof pad
contacts the top of the rubber
packing.
loop in the
lead outside the rubber
packing to prevent rainwater
from flowing along the lead
into the interior of the vehicle.
Rubber packing
Make a U-shaped
Installation
