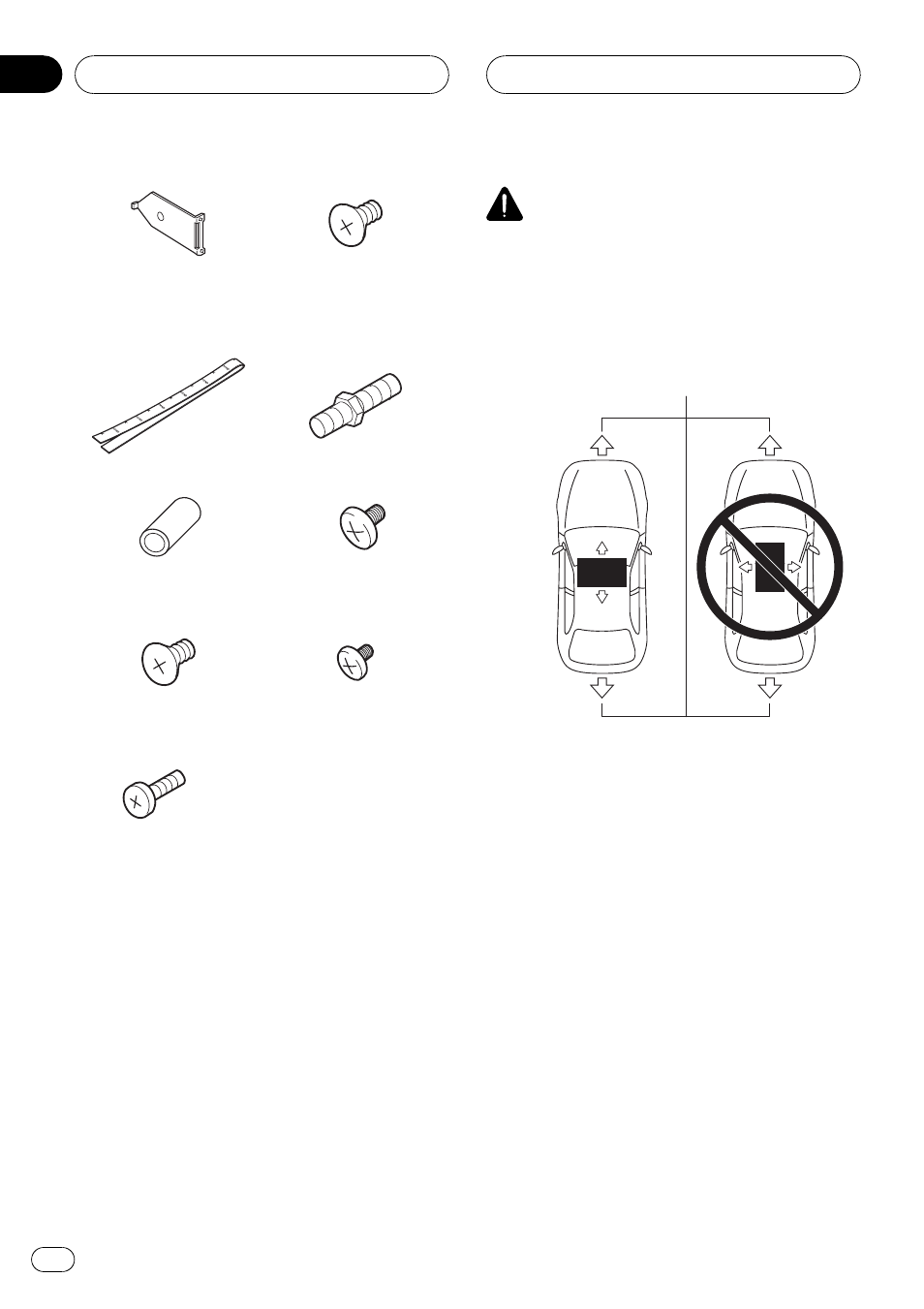

Side bracket (large)
(2 pcs.)
Screw for fixing the
side bracket*
(5 mm × 6 mm)
(2 pcs.)
Conceal tape Double-ended screw
Rubber bush Binding screw
(5 mm × 6 mm)
(4 pcs.)
Flush surface screw
(5 mm × 6 mm)
(4 pcs.)
Screw
(4 mm × 3 mm)
(4 pcs.)
Fixing screw
(2 pcs.)
CAUTION
! Install with the left and right sides of the
hide-away unit parallel to your vehicle
’s
direction of travel. Do not install diagon-
ally to your vehicle
’s direction of travel or
the current location will be displayed in-
correctly.
Forward/Backward direction of vehicle
! Be sure to install the hide-away unit on
the floor with the silk printing side is fa-
cing up. The navigation system will oper-
ate properly only in this position.
Installation
Engb
22
Section
04
