Connecting the Units

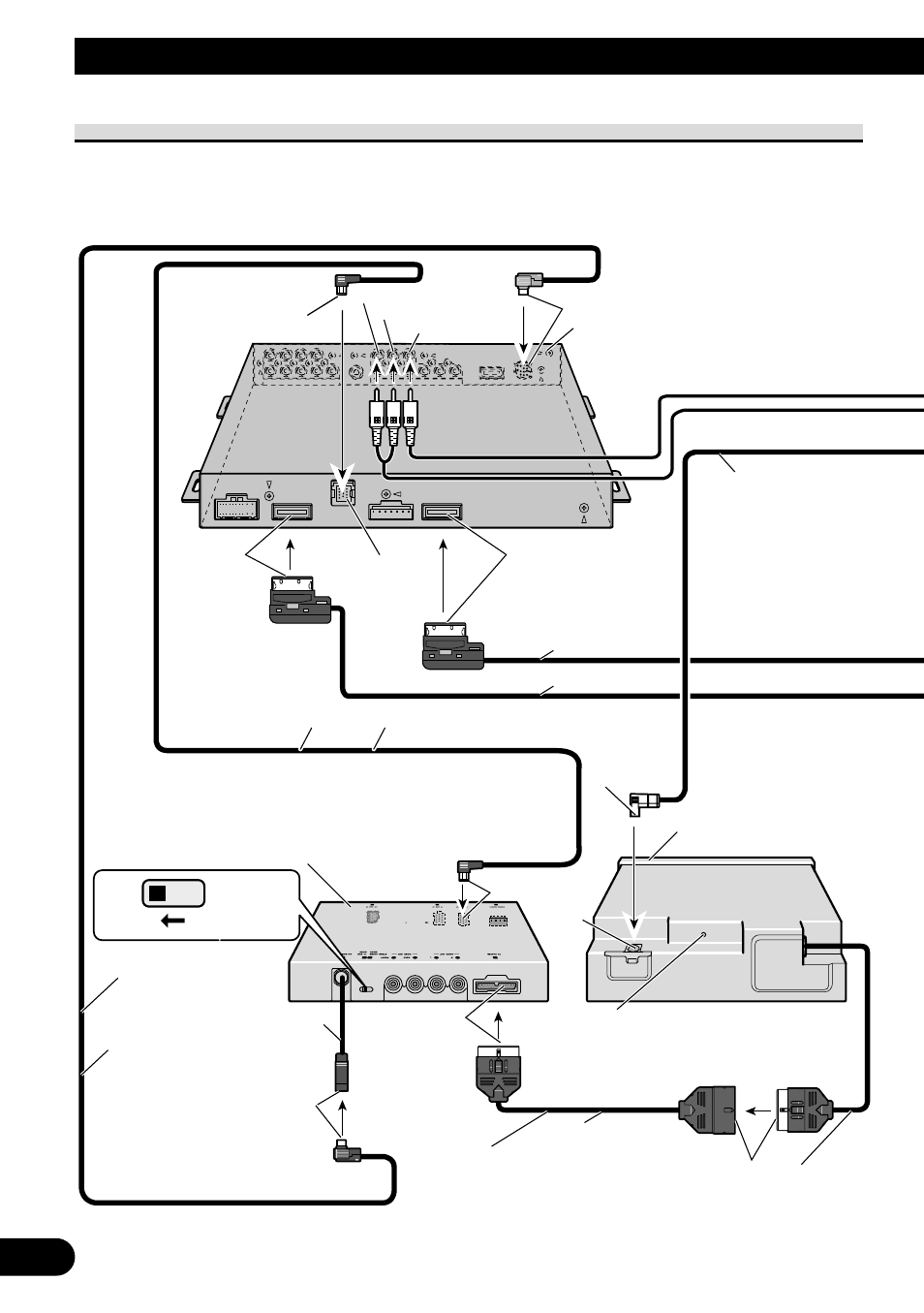

Connecting the system (2)
Blue Violet
6 m
6 m
Hide-away unit (supplied with
AVH-P7800DVD)
Optical cable
(sold separately)
Blue
IP-BUS cable (supplied) 6 m
STAND ALONE IP BUS
Hide-away unit
9 cm
Black
AV-BUS cable (supplied)
6 m
Blue
Blue
Red
White
Yellow
Black
Black
This product
25 pin cable (supplied)
Depending on where you install,
this cable is not used.
Black
Black
2.7 m
Black
20 cm
When using an optical cable, insert a clamp
(supplied with the optical cable) in the hole
and secure the cable.
