Page 10
10
Connecting the Units

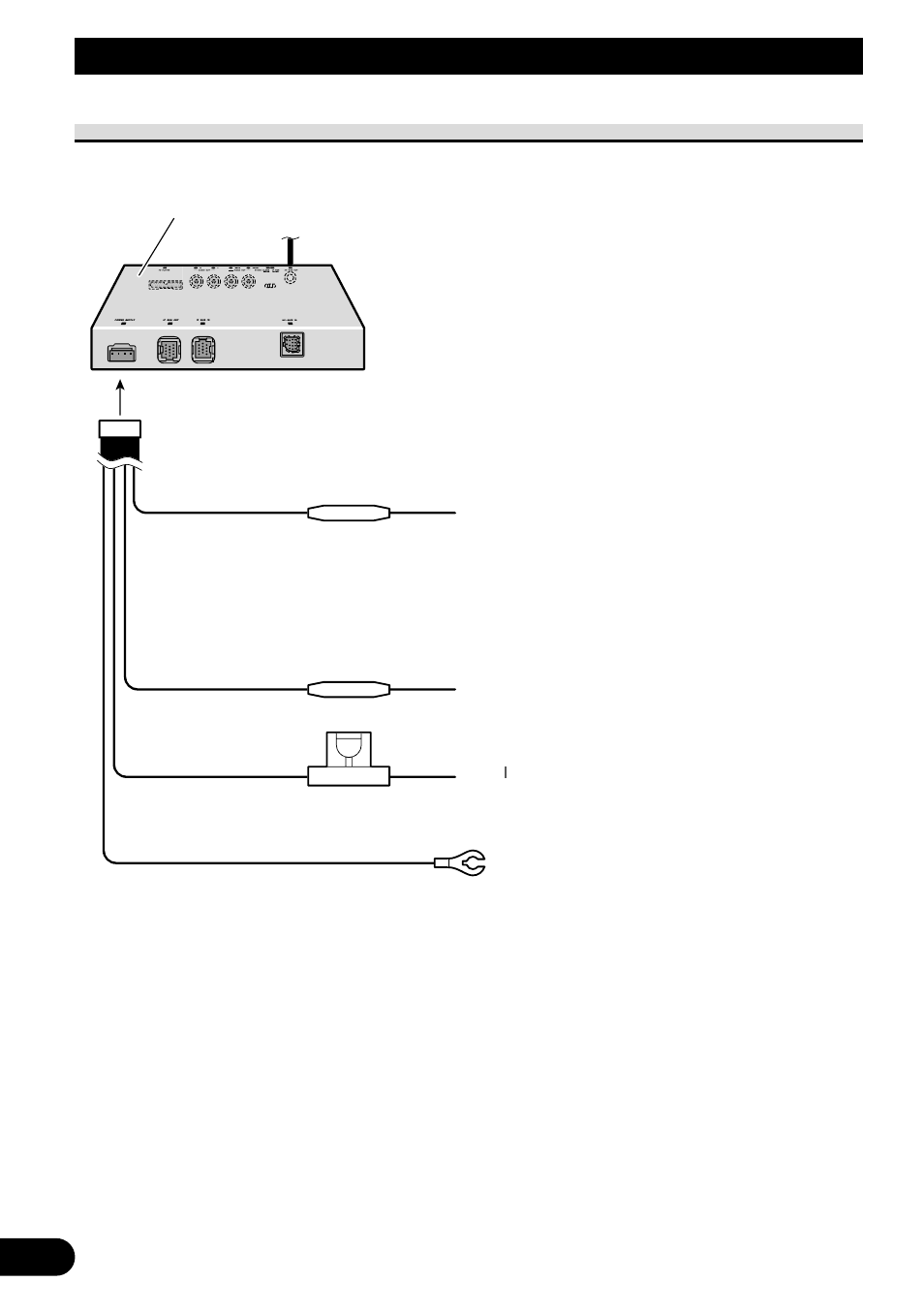

Connecting the Power Cord
Fuse resistor
Fuse resistor
Fuse holder
(4 A)
Black (ground)
To vehicle (metal) body.
Hide-away unit
Yello
Y
Y
w
To terminal always supplied with power
regardless of ignition switch position.
Orange/white
To lighting switch terminal.
Red
When using this product in STAND ALONE
mode, connect this cord to electric terminal
controlled by ignition switch (12 V DC) ON/OFF.
When using this product in IP BUS mode,
do not connect this cord.
