10. Note the orientation of the new microprocessor. Hold the new microprocessor by its edges and align
the notches 1 on it with the tabs 2 in the microprocessor socket. Then, carefully lower the new
microprocessor straight down into the microprocessor socket.
Note: The small triangle 3 on one corner of the new microprocessor is the microprocessor orientation
indicator. The new microprocessor is in the correct orientation when this indicator faces the beveled
corner
4 of the microprocessor socket.

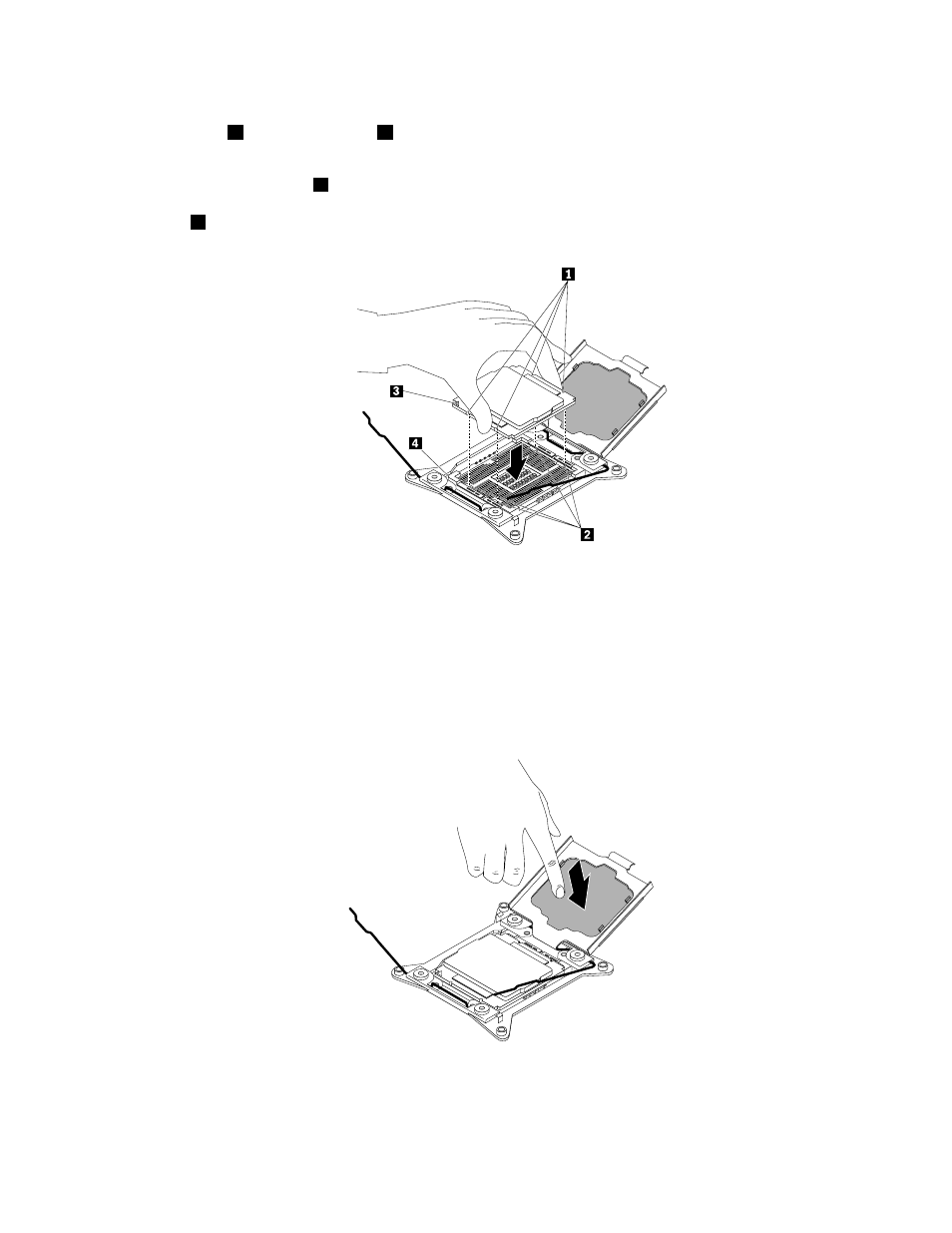

Figure 84. Installing the microprocessor
11. Remove the plastic microprocessor socket cover. Store the microprocessor socket cover in the event
that you later remove the microprocessor and need the socket cover to protect the pins on the socket.
Note: Do not remove the socket cover until you install a microprocessor into the socket. If you remove
the microprocessor, install the socket cover or a new microprocessor in the first place.
Figure 85. Removing the microprocessor socket cover
Chapter 6 . Replacing hardware 125
