6. Pull the handle and carefully slide the easy-swap drive or the dummy tray out of the front of the chassis.

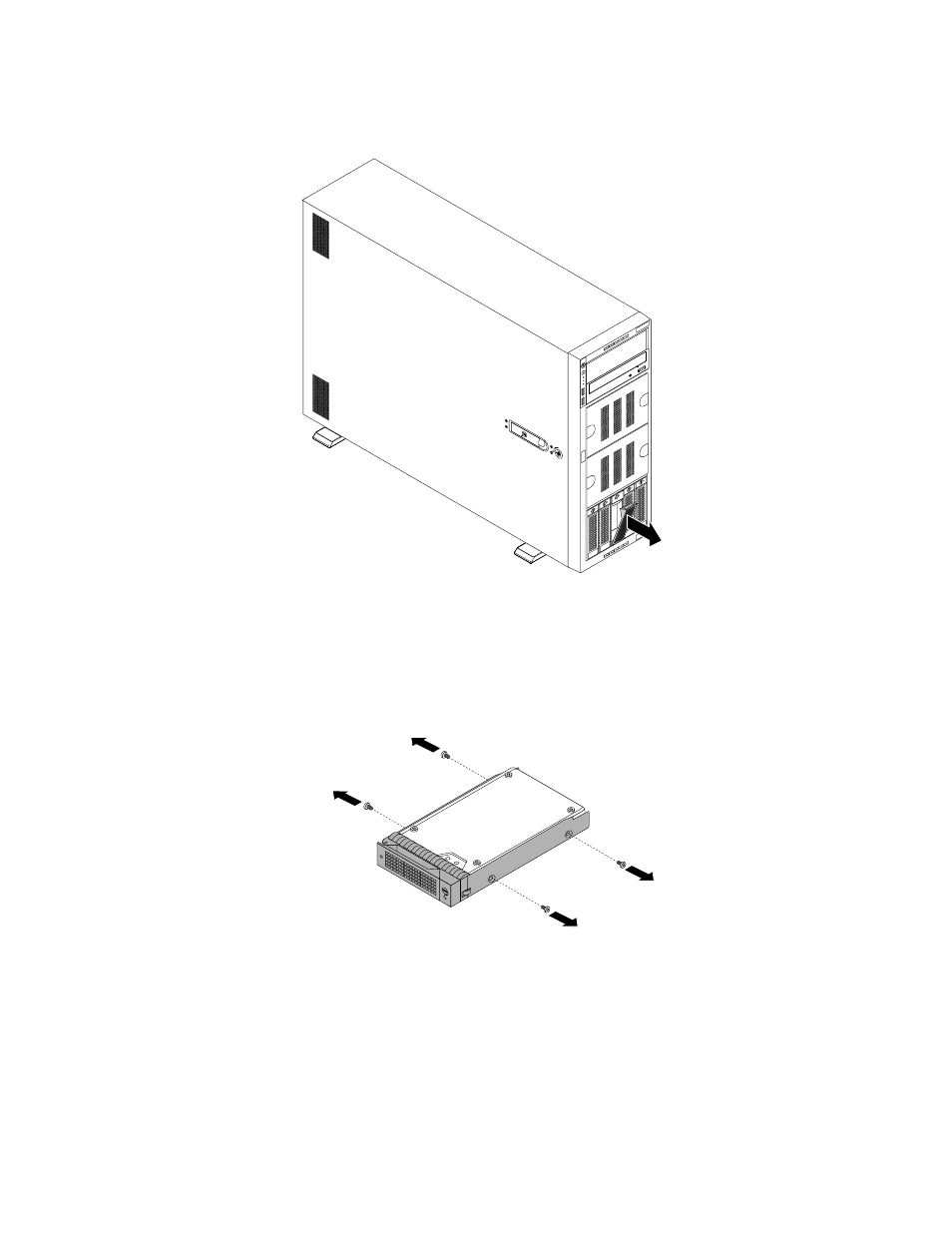

Figure 73. Removing the easy-swap drive or the dummy tray

7. Do one of the following:

• If you are replacing an easy-swap drive, remove the four screws to remove the failing drive from the

drive tray.

Figure 74. Removing the drive from the drive tray

• If you are installing an easy-swap drive, go to the next step.

8. Touch the static-protective package that contains the new easy-swap drive to any unpainted surface on

the outside of the server. Then, take the new easy-swap drive out of the package.
