10. Position the new PCIe card over the PCIe card slot. Then, carefully press the PCIe card straight down
until it is securely seated in the slot.

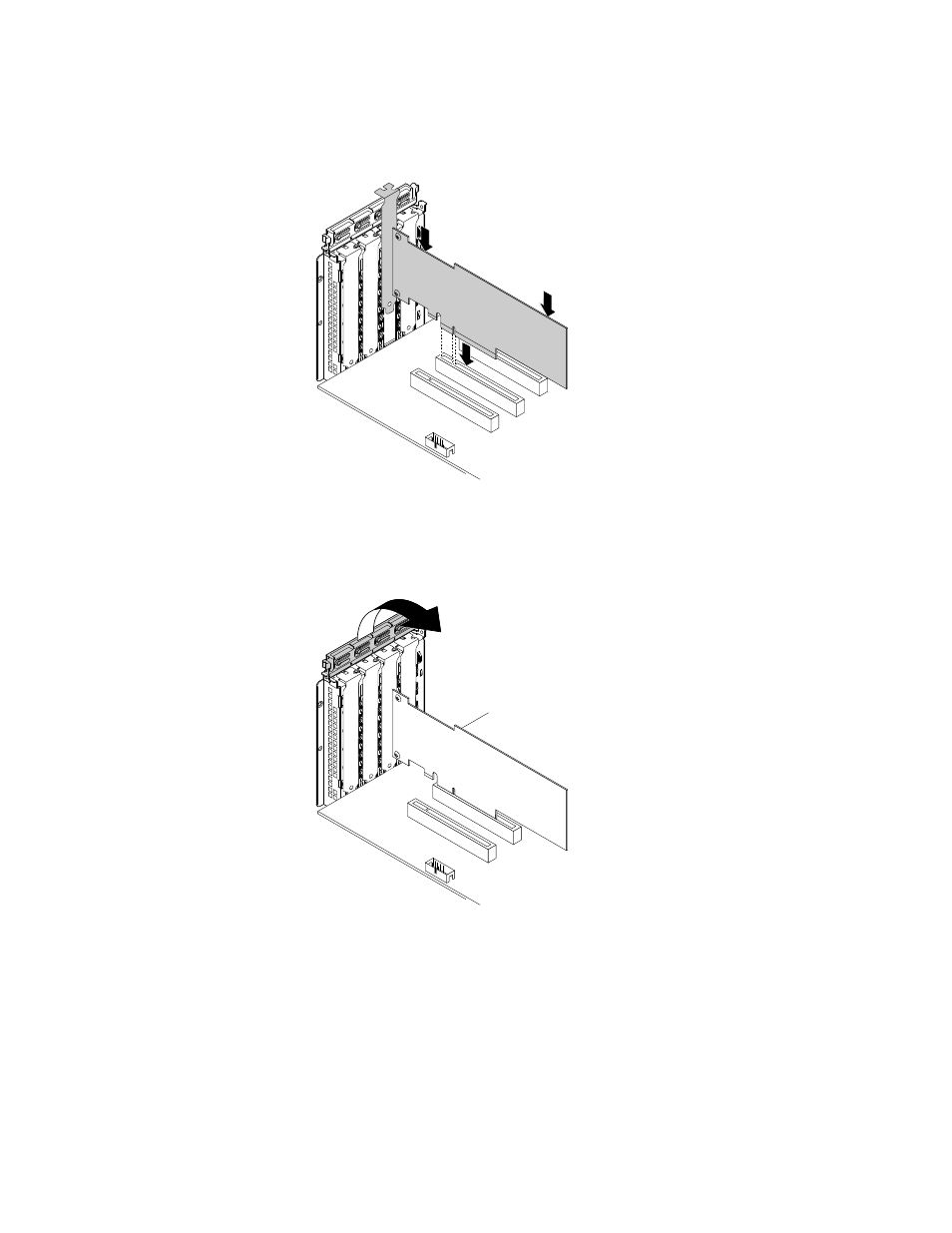

Figure 47. Installing the PCIe card
11. Close the latch for the PCIe card slot to secure the installed PCIe card.
Figure 48. Closing the latch for the PCIe card slot
12. Depending on the type of the PCIe card, you might need to connect any required cables. Refer to the
documentation that comes with the PCIe card for specific information.
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation, go to “Completing the parts replacement” on page 164.
