ASSEMBLY

TX235 02/07

Assembly Section 3-10

© 2007 Alamo Group Inc.

ASSEMBL

Y

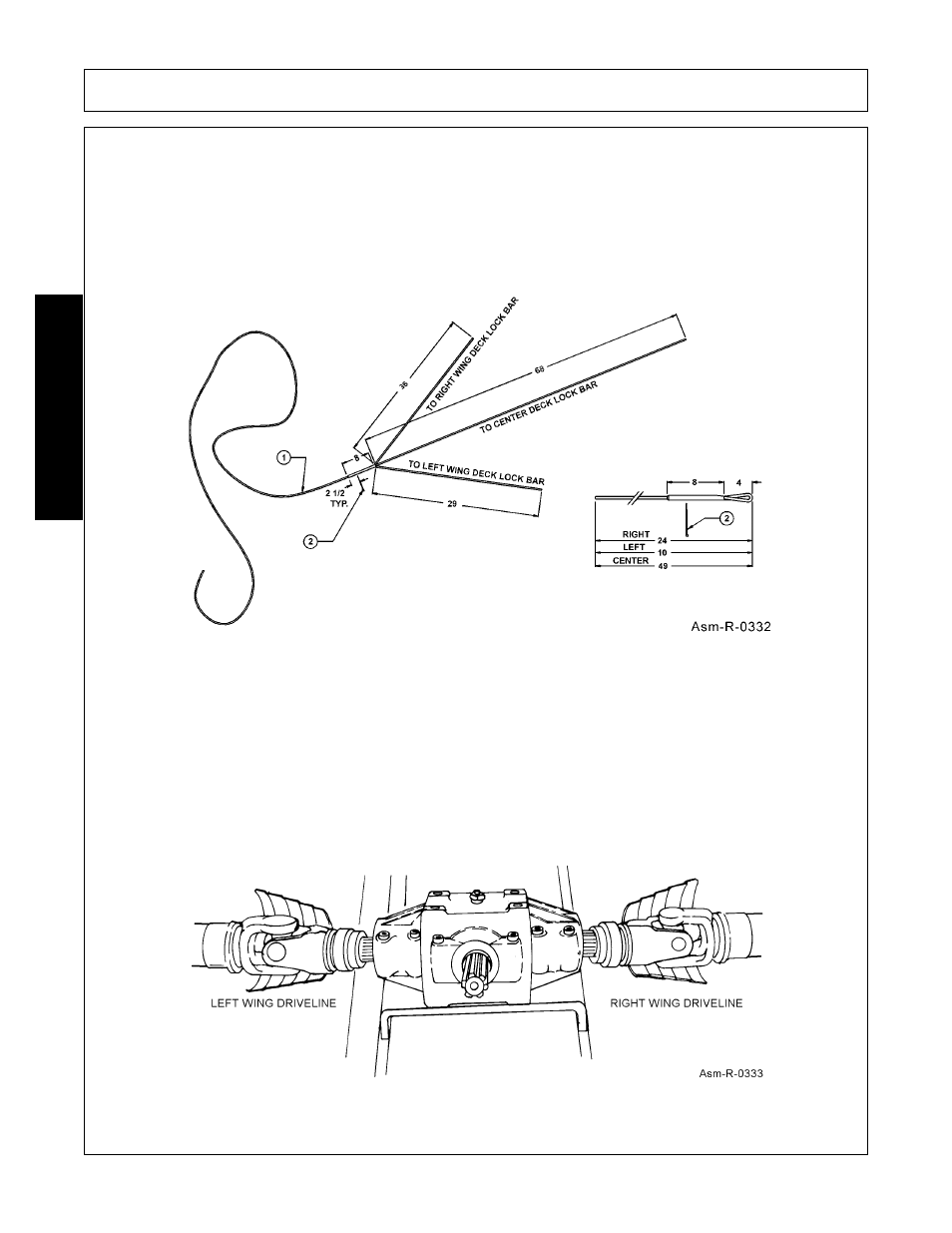

FIELD ASSEMBLY

1.

Loop ends back through welded link on lock bar and then inside of braid by forming a hole 16” from end.

2.

Adjust lengths as shown to give 8” overlap and 4” loop.

3.

Adjust to give dimensions shown.

4.

Secure loops by running a plastic tie through rope braids (2) to prevent slipping.

WING DRIVELINE ATTACHMENT

Standard Driveline

Attach the wing driveline to the center power divider gearbox as shown so that both sides of the gearbox are

oriented the same.

NOTE: The driveline end with the extended shield cone attaches to the mower deck gearbox. Asm-R-0333.
