ASSEMBLY
TX235 02/07 Assembly Section 3-5
© 2007 Alamo Group Inc.
ASSEMBL
Y

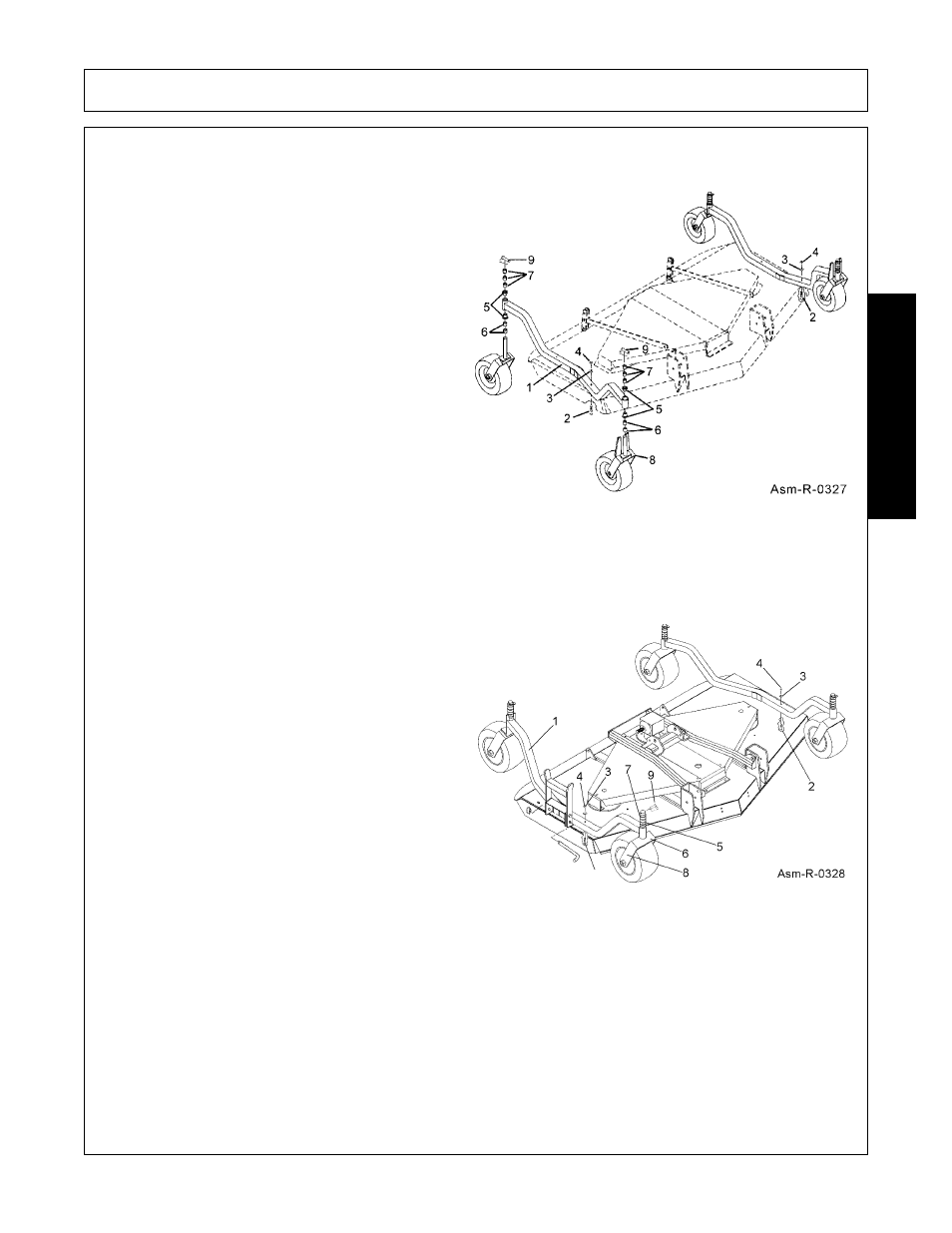

CASTER WHEEL ATTACHMENTS - REAR MOWER
Attach the right and left Axle Arm Weldment (1) to
the deck with bolts (2) flatwasher (3), and locknuts
(4). Install two flanges (5), two1/4 inch spacer (6)
and three one inch spacers (7) on each fork and
wheel assembly shaft (8). Insert fork shaft (8) into
axle arm weldment (1). Install two additional 1/4
inch spacers (6) on each axle shaft (8) and retain
using Snapper Pin (9). Asm-R-0327.
NOTE: Caster Wheel Mounting Beams Item #1
may be shipped attached to deck.
CASTER WHEEL ATTACHMENTS - WING MOWER
Attach the right and left Axle Arm Weldment (1) to
the deck with bolts (2) flatwasher (3), and locknuts
(4). Install two flanges (5), two1/4 inch spacer (6)
and four one inch spacers (7) on each fork and
wheel assembly shaft (8). Insert fork shaft (8) into
axle arm weldment (1). Install two additional 1/4
inch spacers (6) on each axle shaft (8) and retain
using Snapper Pin (9). Asm-R-0328.
NOTE: Axle arm toward center of machine must
have bracket attached so that transport bar maybe
installed as show. When minimun transport width is
desired always raise and lock bar in vertical
position.
