GAUGE WHEEL ASSEMBLIES

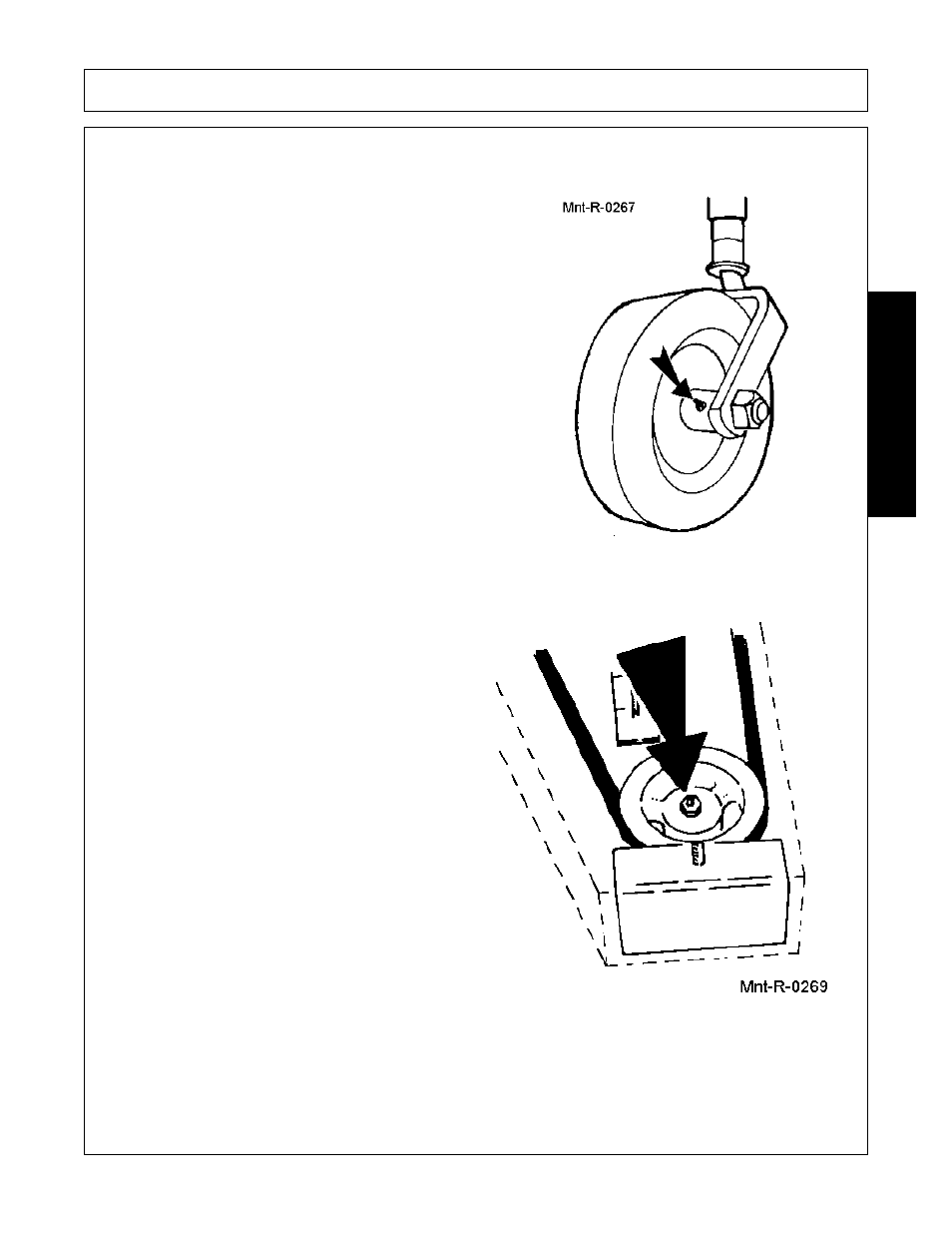

Gauge wheels are equipped with bushings which
require grease daily. Grease fittings are provided in
the Wheel Hub and Gauge Wheel Pivot. Grease
after 8 hours of use. Mnt-R-0267.
BLADE SPINDLE LUBRICATION
Blade spindles must be lubricated daily (every 8
hrs). Mnt-R-0269. Access lubrication fitting through
hole in outer shields and in center gearbox
mounting. Each spindle must be lubricated enough
each time to force small amount of grease out
through top seal.
NOTE: Do not overlube as excess grease may get
on belt drive.
