ASSEMBLY
TX235 02/07 Assembly Section 3-2
© 2007 Alamo Group Inc.
ASSEMBL
Y
Operating with PTO speed over 540 RPM can cause excessive vibration with subsequent
machine failure which can cause serious injury or even death. Never exceed 600 RPM.
DEALER SET-UP INSTRUCTIONS
Assembly of this mower is the responsibility of the Rhino dealer. The mower should be delivered to the owner
completely assembled, lubricated, and adjusted for normal cutting conditions.
Set up mower as received from the factory with these instructions. Mower is shipped in bundles. Open parts
box and lay parts out to make location easy. Refer to parts list and exploded view drawings for more detail.
This mower is shipped partially assembled. Assembly will be easier if components are aligned and loosely
assembled before tightening hardware.
Always use personal protection devices such as eye and ear protectors during assembly.
TONGUE JACK AND WHEEL ATTACHMENT

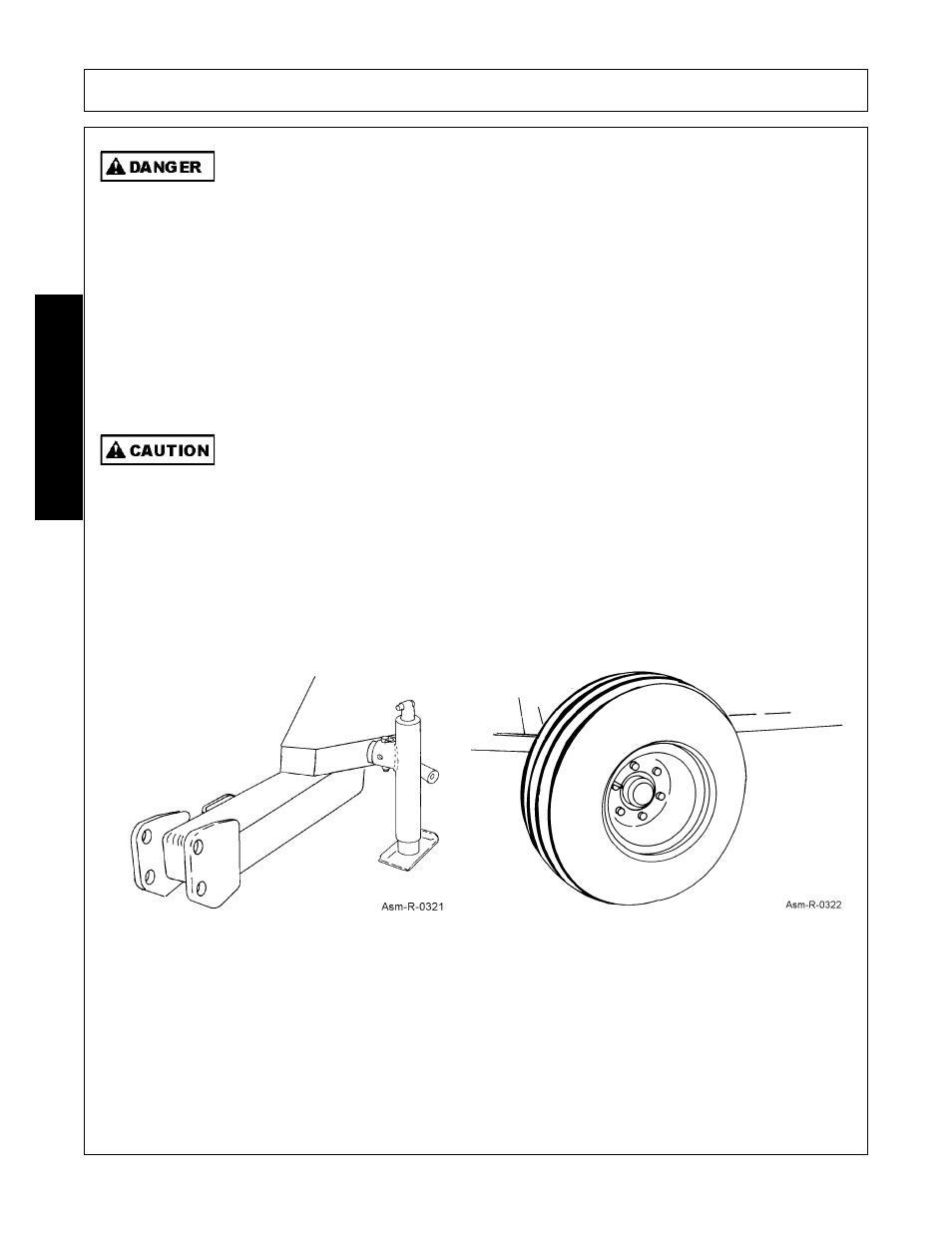

Attach the Jack to the Tongue and retain with Pin. Asm-R-0321. Attach the tires to the hubs with lug bolts
provided. Asm-R-0322.
NOTE: Install tires with Valve
Stems toward outside of frame.
