OPERATION
TX235 02/07 Operation Section 4-9
© 2007 Alamo Group Inc.
OPERA
T
ION
6.1 Connecting the Mower Tongue to the Tractor
1. The tractor must be equipped to operate at
540 RPM PTO speed and the drawbar length
at 14”.
2. Using the parking jack, position the tongue
clevis to the height of the tractor drawbar.
3. Board the tractor and start the engine. Back
the tractor to the mower aligning the drawbar
hitch hole with the mower tongue clevis. Turn
off the tractor engine, place the tractor in park,
and set the parking brake before dismounting.

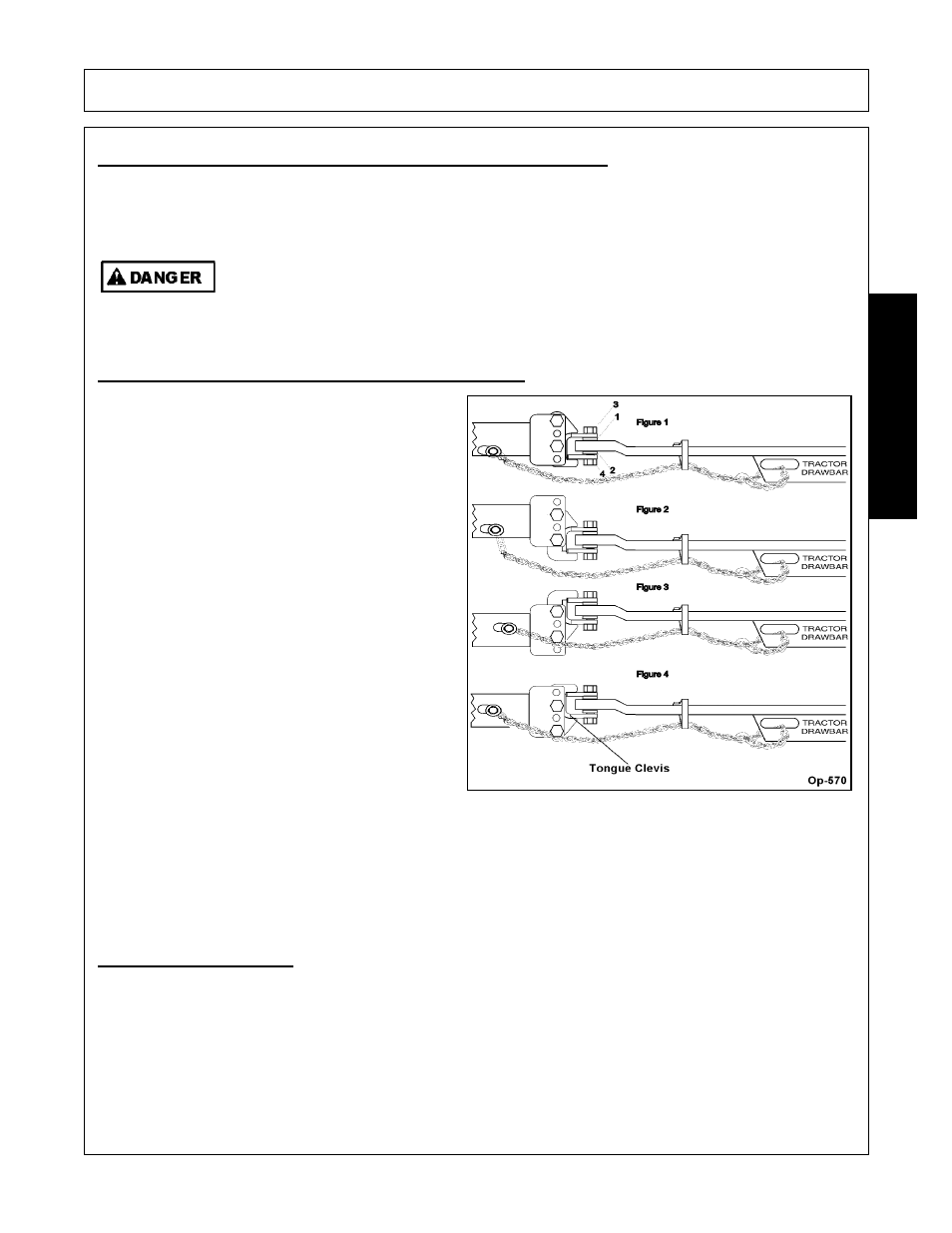

4. To connect the mower, insert a 1” diameter
grade 5 or 8 bolt (3) through clevis and
drawbar and retain in position with a 1” locknut
(4). Tighten the locknut securely but do not
overtighten which could spring or break the
clevis. NEVER attach mower to the tractor with
a pin not having a nut.
5. After connecting the mower, you can adjust
tongue clevis up or down to level out mower if
not level. there are four settings to choose
from. First two setting can raise the mower up
if mower needs to be raised to be level. There
is a 2” difference between both settings
(Figure 1 & 2). If mower needs to be lowered
to be level, flip the clevis tongue upside down
to lower the mower. There is also a 2” difference between both settings (Figure 3 & 4).
6. Securely attach the mower safety chain to the tractor drawbar or drawbar support frame.
7. Lower the jack until the tongue is completely supported by the drawbar. Remove jack from the tongue and
place on storage bracket of the mower.
6.2 Safety Tow Chains
If the mower is towed on a public roadway, a safety chain with tensile strength equal to or greater than the
gross weight of the mower must be connected between the tractor and mower. This will help control the
implement in the even the tongue becomes disconnected from the drawbar. After connecting both ends of the
safety chain, drive the tractor to the right and left to check for proper chain length. Adjust length as necessary
and allow only enough slack in the chain to make a maximum turn in both directions.
6. CONNECTING THE MOWER TO THE TRACTOR
Use extreme caution when connecting the mower to the tractor. The mower should be securely resting at
ground level or setting on blocks. Keep hands and feet from under the mower deck and clear of pinch points
between the tractor hitch arms and mower pins. OPS-R-0001
Always shut the Tractor completely down, place the transmission in park, and set the
parking brake before you or anyone else attempts to connect or disconnect the Implement
and Tractor hitches.
(S3PT-15)
