REAR MOWER ATTACHMENT

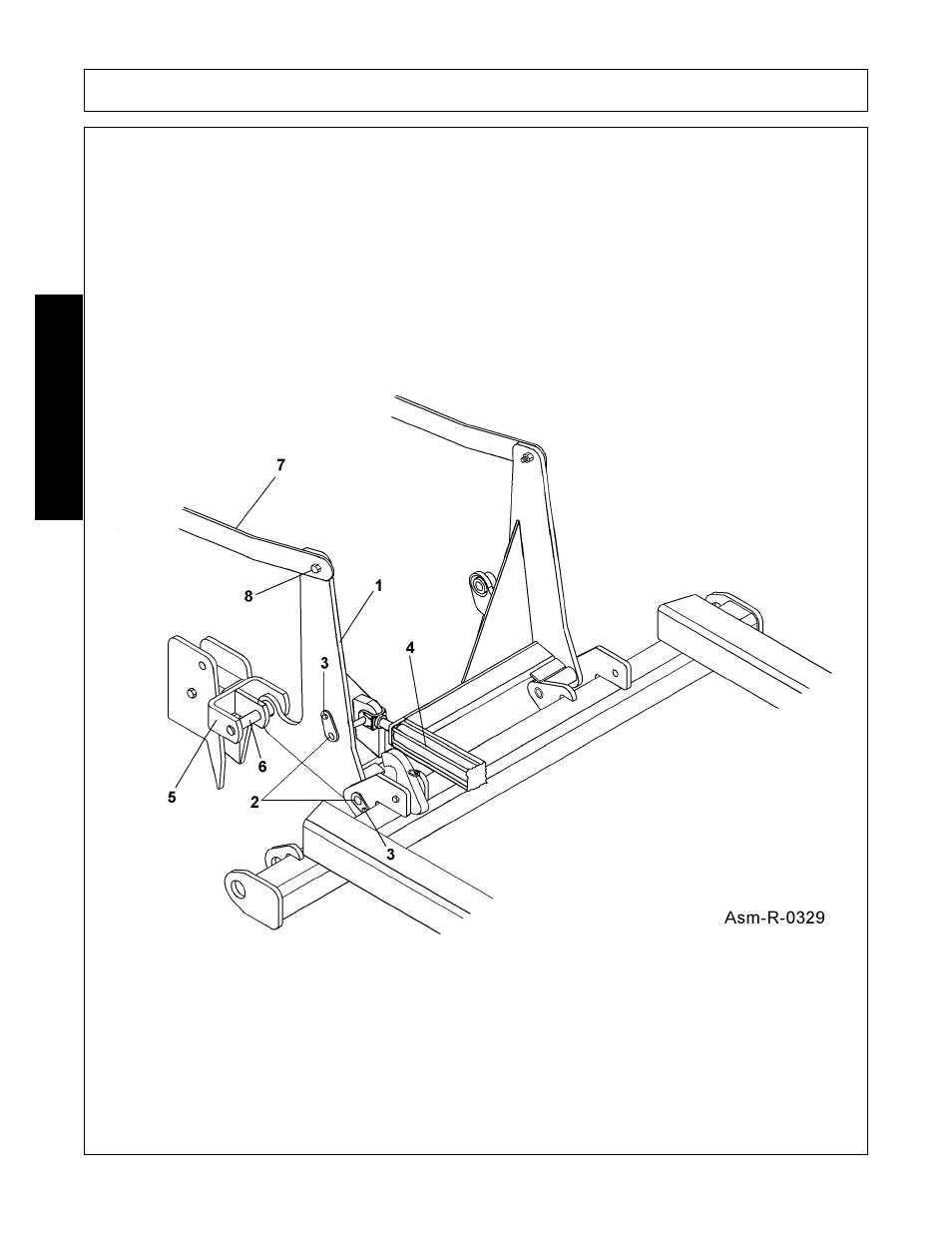

Install the Rear Lift Arm (1) on the Main Frame with a Frame Pin (2) and secure Pin with Bolt (3).
ATTENTION: Do not drive pin in with hammer, this will damage the Pivot Tube. Pin should slide in with very lit-
tle resistance. Attach the Rear Cylinder (4) to Rear Lift Arm (1) with Pin (2) and secure with Bolt (3).
Attach Rear Lift Arm (1) to Lower Hitch (5) and secure with Pin (6), lock Pin with a Cllip Pin. Install Bushing in
Flat-Rear Brace (7) and sandwich together with Rear Lift Arm (1). Secure Brace with Bolts (8), Flatwashers
and Locknuts.Figure 10
