MAINTENANCE
TX235 02/07
Maintenance Section 5-4
© 2007 Alamo Group Inc.
MAINTENANCE

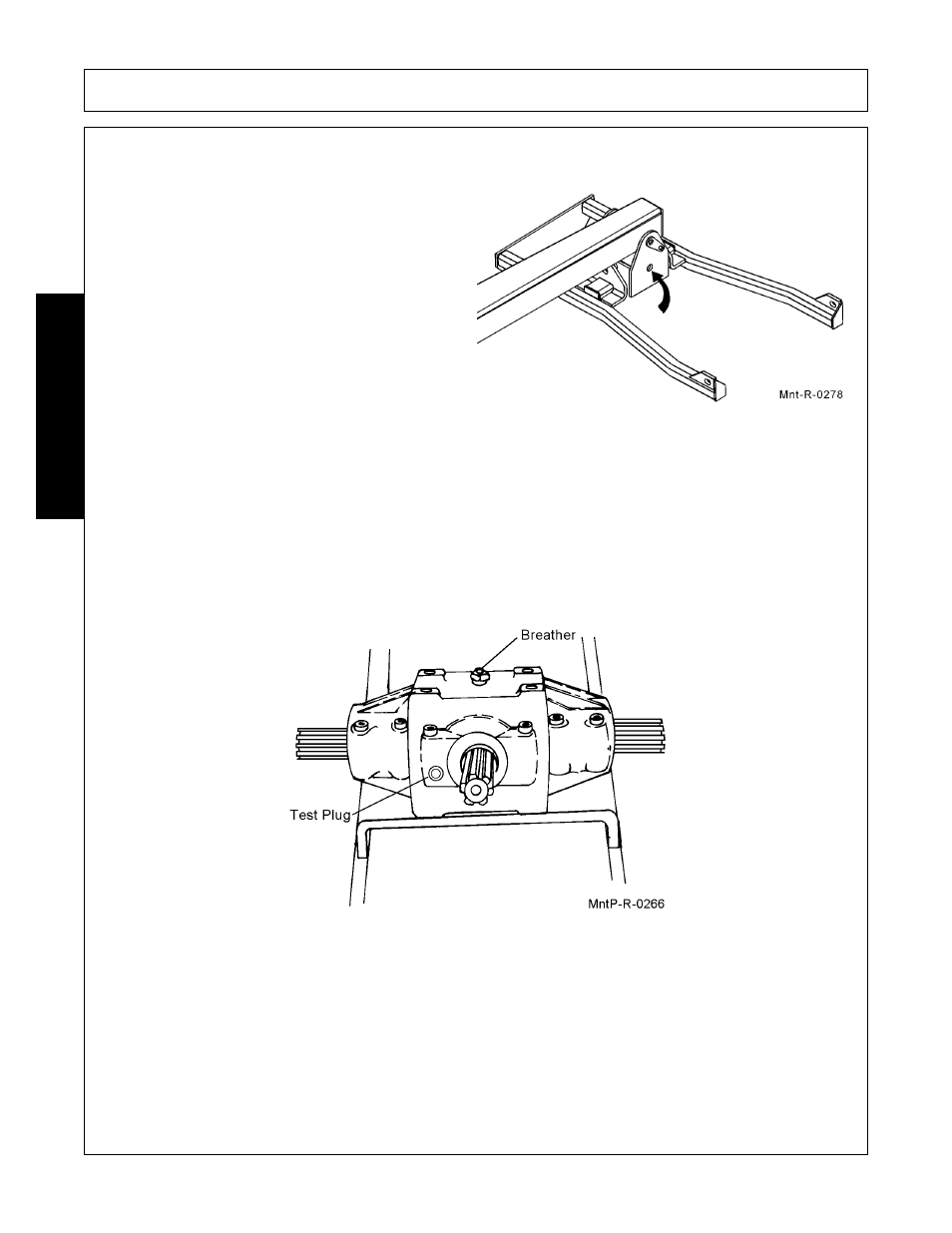

SWIVEL ASSEMBLY
The Swivel Assembly should be lubricated every 8
hours. Mnt-R-0278.
CENTER 4-WAY GEAR BOX
Gearbox is filled from factory with proper lube level. To check oil level remote test plug on front side gear. It is
recommended that oil level plug be removed every 100 hours of operation and oil added until it runs out test
plug hole. The test plug is located in front cap of gearbox. Fill plug is on top of gearbox.
Recommended lubricant is NGLI 000 (P/N 00765444). Gearbox capacity is 1-1/8 Quarts.
