HYDRAULIC CYLINDER ATTACHMENT

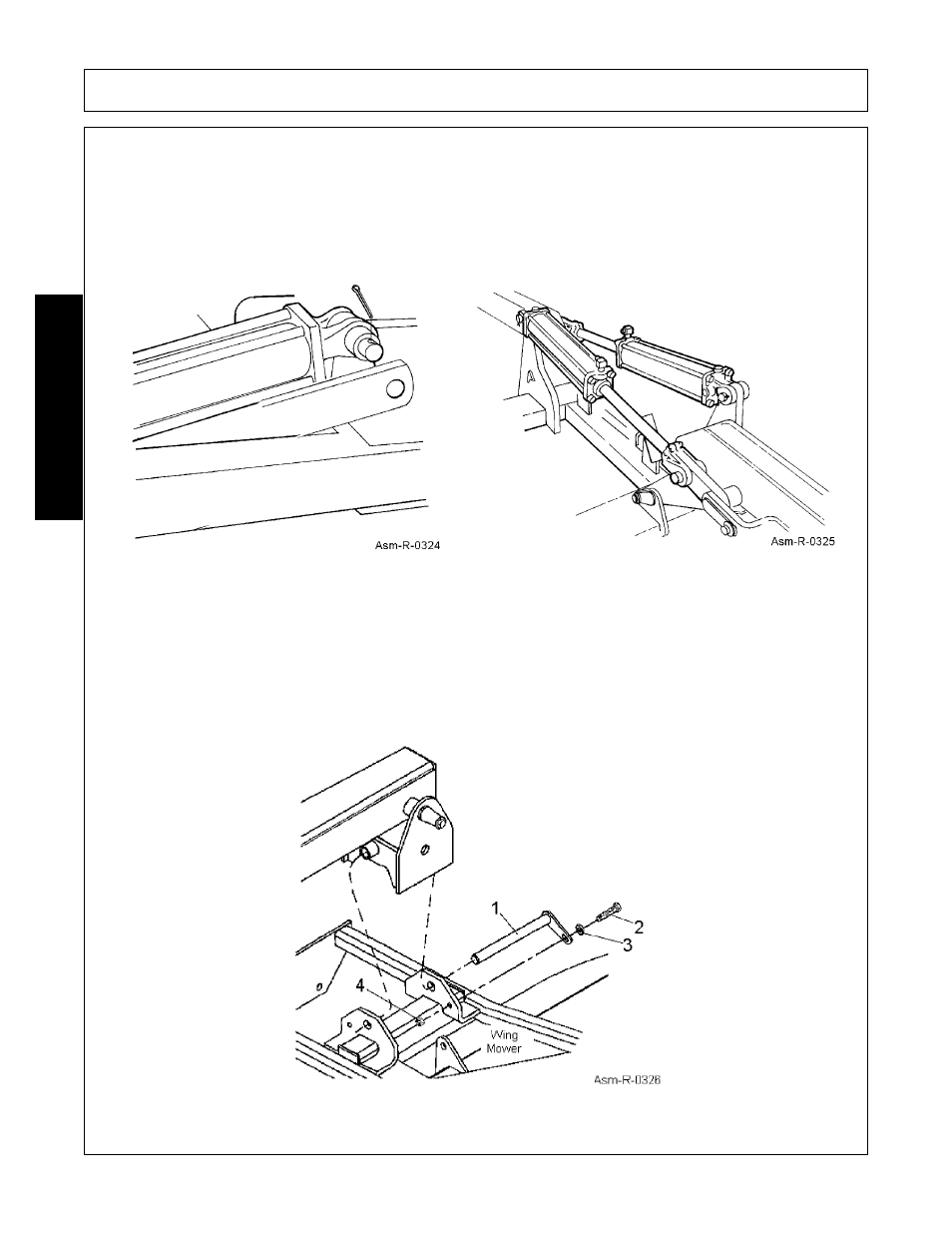

Attach the Rear Hydraulic Cylinder to the Main Frame with Fittings pointing up. Retain with Pin and Cotter
Pin. Asm-R- 0324. Attach the Wing Hydraulic Cylinders to the Main Frame and toggle links with pins provided.
Asm-R-0325.
WING MOWER ATTACHMENT
NOTE: The Wing Mowers are right and left mowers. The offset rear caster wheel is to the inside when the
mower is installed.
Position the Wing Mowers under the Wing Lift Arms and remove the Attachment Pin (1) from the Swivel.
Attach the Wing Mower to the Lift Arm and secure with 1/2" x 1-1/2" Bolt (2), flatwasher (3), and locknut (4).
