ASSEMBLY
TX235 02/07 Assembly Section 3-7
© 2007 Alamo Group Inc.
ASSEMBL
Y

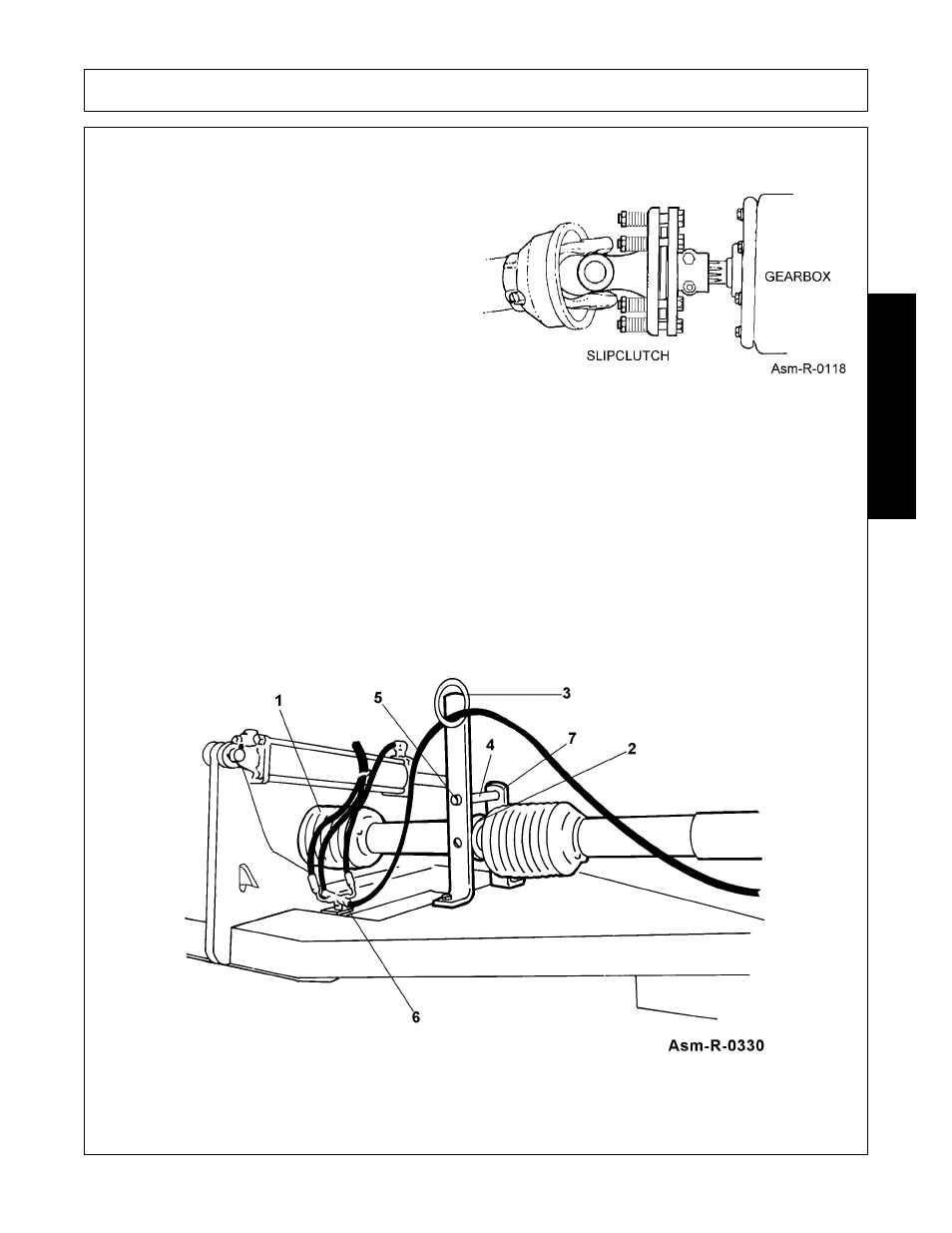

DRIVELINE ATTACHMENT
Before starting assembly, make certain that all
paint, dirt and grease are removed from gearbox
shaft (1). To ease assembly, apply a light coat of
grease to splines and assemble. Do not assemble a
driveline without a shield.
Attach the slip clutch end of the driveline to the
gearbox input shaft securely. Make certain that the
slip clutch is fully onto the input shaft splines.
Tighten the locknuts (2) alternately until they have
reached the proper torque. Refer to Torque Chart in
Maintenance Section.
JACKSTAND AND HOSE ATTACHMENT
All drivelines are equipped with slide collar on end yokes. To attach to the shaft grab and pull the collar on the
end of attaching yoke toward the opposite end of the driveline. Slide the yoke (with collar depressed) onto the
shaft. Move the yoke back and forth until the collar clicks forward and locks yoke in place.
Install the Jackshaft (1) on the Front Gearbox and install Bearing (2) on the Drive End. Sandwich the Bearing
between the Bearing Supports (3 & 7). Install the Pipe Spacers (4) and retain with 1/2” x 7” bolt (5) and locknut.
