Super X Series Valves
All Dimensions in Inches (mm)
Littleton, CO USA Phone: 303-794-2611 www.norgren.com VAL-7-7

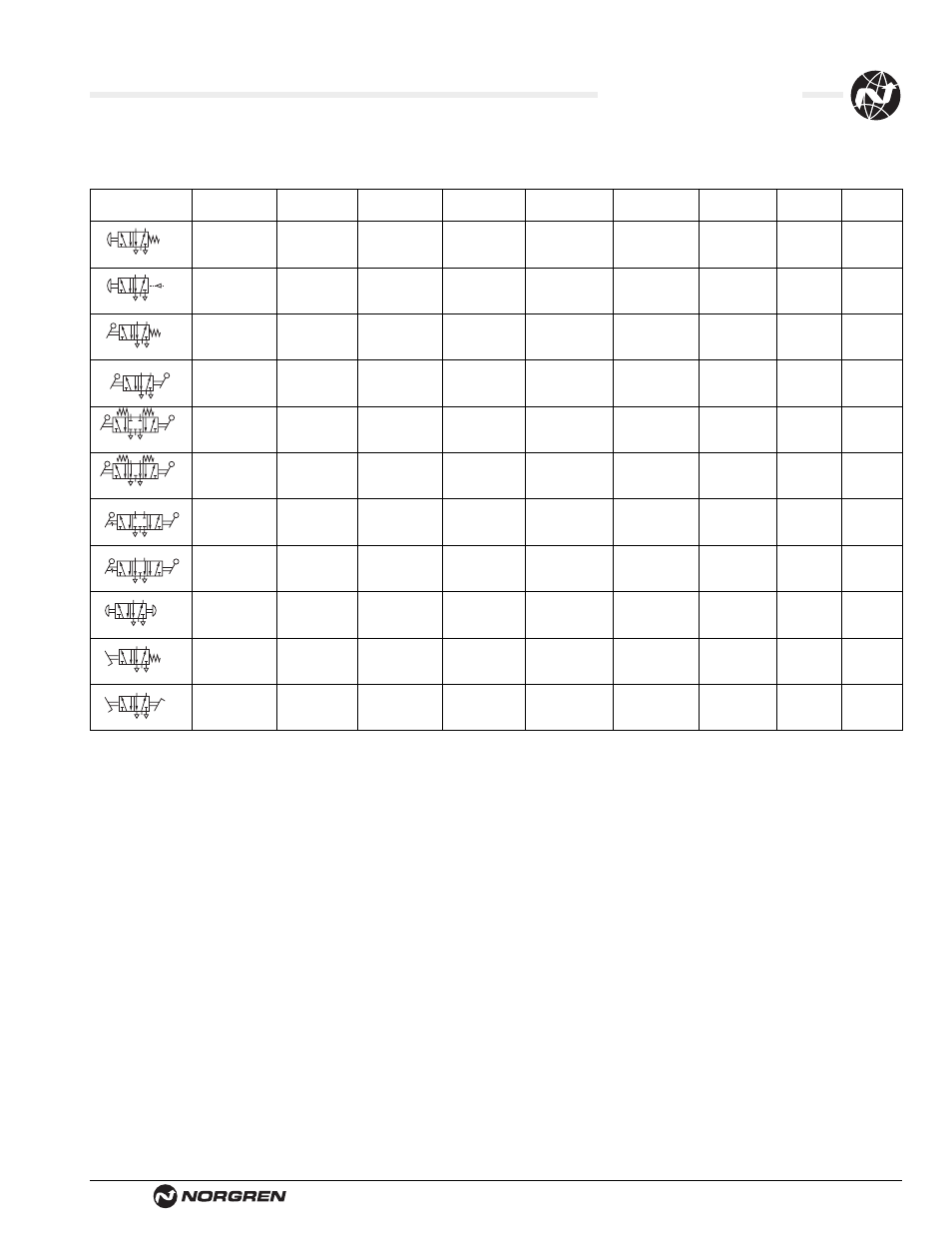

Symbol Model Color Operator Mid-position Return Weight lbs. (kg) Spares kit Page no. Stock
X3 0644 22 Black Button - Spring 1.04 (.47) 03 8602 02 VAL-7-28 yes
X3 0648 22 Black Button - Pilot 1.19 (.54) 03 8612 02 VAL-7-28 no
X3 0678 22 Black Lever - Spring 1.32 (.60) 03 8602 02 VAL-7-28 yes
X3 0677 22 Black Lever - Lever 1.35 (.61) 03 8602 02 VAL-7-28 yes
X3 3638 22 Black Lever APB Lever 2.34 (1.06) 03 8602 02 VAL-7-28 yes
X3 3678 22 Black Lever COE Lever 2.34 (1.06) 03 8602 02 VAL-7-28 yes
X3 3637 22 Black Lever APB Lever 1.43 (.65) 03 8602 02 VAL-7-28 yes
X3 3677 22 Black Lever COE Lever 1.43 (.65) 03 8602 02 VAL-7-28 yes
X3 0665 22 Black Knob - Knob 1.08 (.49) 03 8602 02 VAL-7-29 yes
X3 0682 22 Black Pedal - Spring 2.93 (1.33) 03 8602 02 VAL-7-29 no
X3 0684 22 Black Pedal - Pedal 3.06 (1.39) 03 8602 02 VAL-7-29 no
1/4" NPT 5/2 & 5/3 Manual Valves
4 2
5 1 3
12 14
4 2
5 1 3
12
14
12
4 2
5 1 3
14
5 1 3
12 14 4 2
5 1 3
12 14 4 2
12
4 2
5 1 3
14
5 1 3
12 14 4 2
5 1 3
12 14 4 2
12 4 2
5 1 3
14
12 4 2
5 1 3
14
12 4 2
5 1 3
14
APB = All Ports Blocked, COE = Center Open Exhaust.
