Super X Series Valves
All Dimensions in Inches (mm)
VAL-7-26 Littleton, CO USA Phone: 303-794-2611 www.norgren.com
03 0638 22, 03 0637 22

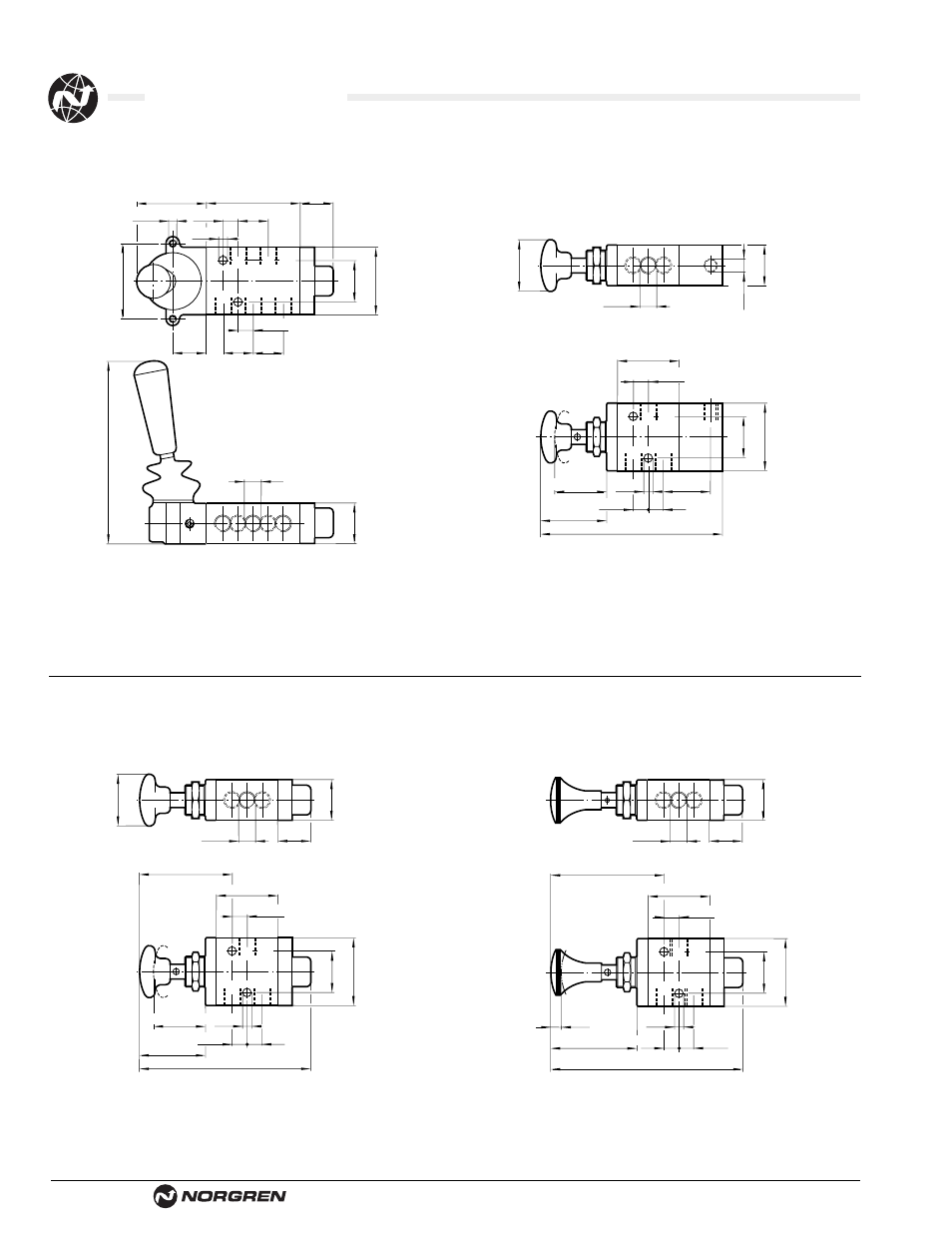

1/4" NPT 3/2 Lever Operated Valves
‘14’ ‘4’ ‘2’ ‘12’
‘5’ ‘1’ ‘3’
.45 (12) .91 (23)
Ø.26 (7)
2.56 (65)
.91
(23)
.91
(23)
1.18 (30) 1.85 (47)
52
M5x0,8
.93
(24)
1.10 (28)
1.89 (48) .87 (22)
1/4 NPT 5.28 (134)
.45 (12)
Operating Force: 03 0638 22 = 5 lbs (15N)
03 0637 22 = 3 lbs (13N)
Model 03 0637 02 features a positive detent in each position.
Both Models are suitable for panel mounting by means of a bezel kit,
reference 03 3637 64.
Panel Hole: Ø1.22" (31 mm);
Panel Thickness: .31" (8 mm) maximum
03 0608 22
1/4" NPT 3/2 Button Operated Pilot Return Valve
‘1’
‘10’ ‘2’ ‘12’
‘3’
.26 (7)
1.69 (43)
.45 (12)
1.61 (41)
1.91 (50) max.
5.12 (130) max.
1.10 (28)
1.20 (31)
1.18 (30) 1.85 (47)
1/4 NPT
.45 (12)
1.57 (40) min.
.45 (12)
1/4 NPT
Operating Force: 3 lbs (13N), pilot port ‘10’ at zero bar
Reset Pressure: 30 psi (2 bar) minimum
This valve is suitable for panel mounting and includes a nut and washer.
Panel Hole: Ø.83 (21 mm); Panel thickness: .31 (8 mm) maximum
03 0604 22
1/4" NPT 3/2 Button Operated Spring Return Valve
‘1’
‘10’ ‘2’ ‘12’
‘3’
.26 (7)
1.69 (43)
.45 (12)
1.61 (41)
1.91 (49) max.
4.80 (122) max.
1.10 (28)
1.18 (30) 1.85 (47)
.87 (22)
2.62 (67) max.
1/4 NPT
1.57 (40) min.
.45 (12)
.45 (12)
Operating Force: 12lbs (53N)
This valve is suitable for panel mounting and includes a nut and washer.
Panel Hole: Ø.83" (21 mm); Panel Thickness: .31" (8 mm) maximum
03 0625 22
1/4" NPT 3/2 Knob Operated Knob Return Valve
‘1’
‘10’ ‘2’ ‘12’
‘3’
.26 (7)
1.69 (43)
.45 (12)
1.10 (28)
1.18 (30) 1.85 (47)
.87 (22)
.28 (7)
2.30 (59)
5.18 (132)
3.01 (77)
1/4 NPT
.45 (12)
.45 (12)
Operating Force: 3 lbs (13N)
This valve is suitable for panel mounting and includes a nut and washer.
Panel Hole: Ø.83" (21 mm); Panel Thickness: .31" (8 mm) maximum
