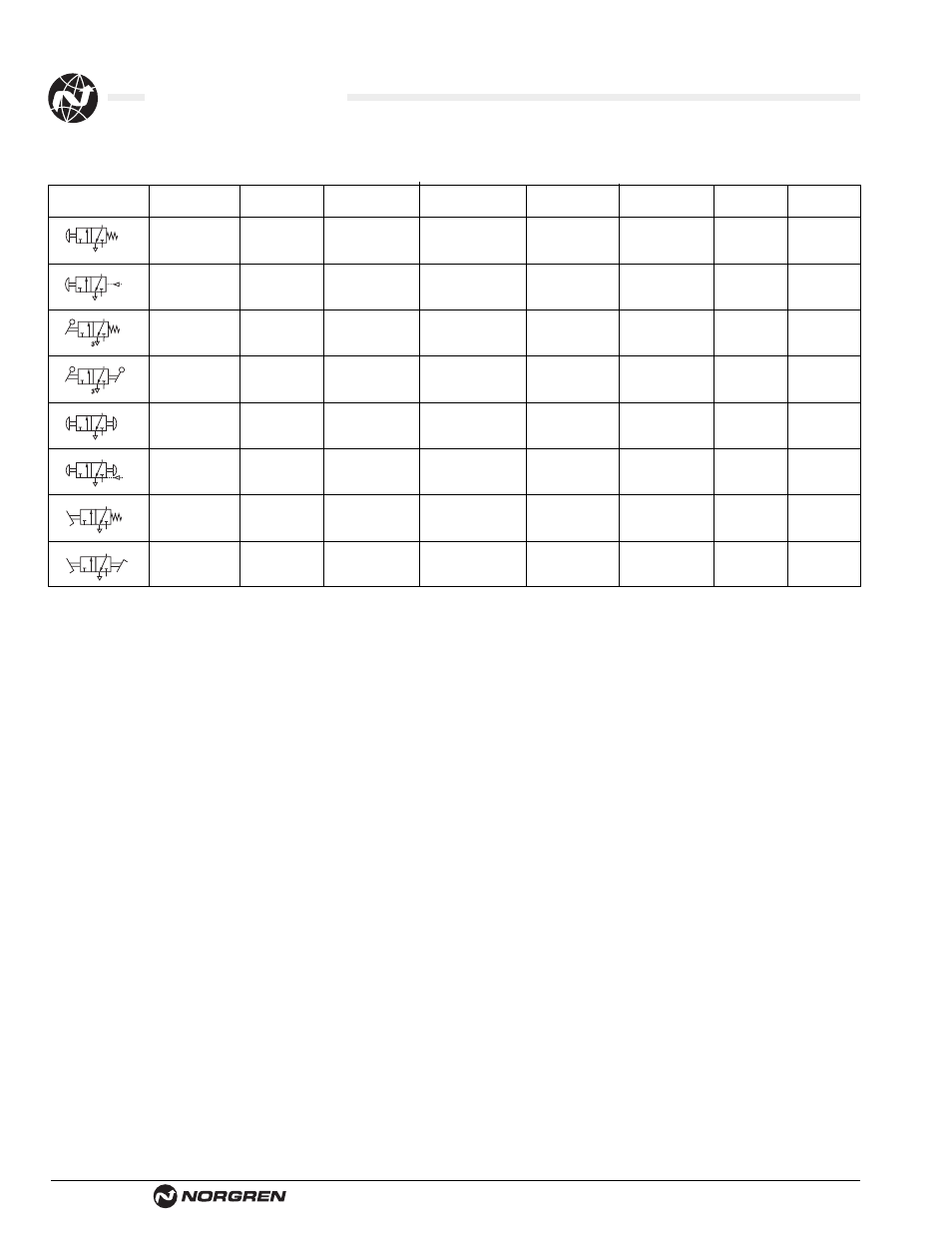

Norgren Super X Series Valves - Manual (Page 6)

Super X Series Valves
All Dimensions in Inches (mm)
VAL-7-6 Littleton, CO USA Phone: 303-794-2611 www.norgren.com
Symbol Model Color Operator Return Weight (kg) Spares kit Page no. Stock
03 0604 22 Black Button Spring 0.77 (.35) 03 8602 02 VAL-7-26 yes
03 0608 22 Black Button Pilot 0.93 (.42) 03 8612 02 VAL-7-26 no
03 0638 22 Black Lever Spring 1.06 (.48) 03 8602 02 VAL-7-26 yes
03 0637 22 Black Lever Lever 1.08 (.49) 03 8602 02 VAL-7-26 yes
03 0625 22 Black Knob Knob 0.82 (.37) 03 8602 02 VAL-7-26 yes
03 0627 22 Black Knob Knob or Pilot 0.90 (.41) 03 8612 02 VAL-7-27 no
03 0681 22 Black Pedal Spring 2.71 (1.23) 03 8602 02 VAL-7-27 no
03 0683 22 Black Pedal Pedal 2.80 (1.27) 03 8602 02 VAL-7-27 no
1/4" NPT 3/2 Manual Valves
2
3 1 3
10
12
2
3 1 3
10
12
2
1
10
12
2
1 12
10
2
3 1 3
12 10
2
3 1 3
12 10
2
3 1 3
12 10
2
3 1 3
12 10
